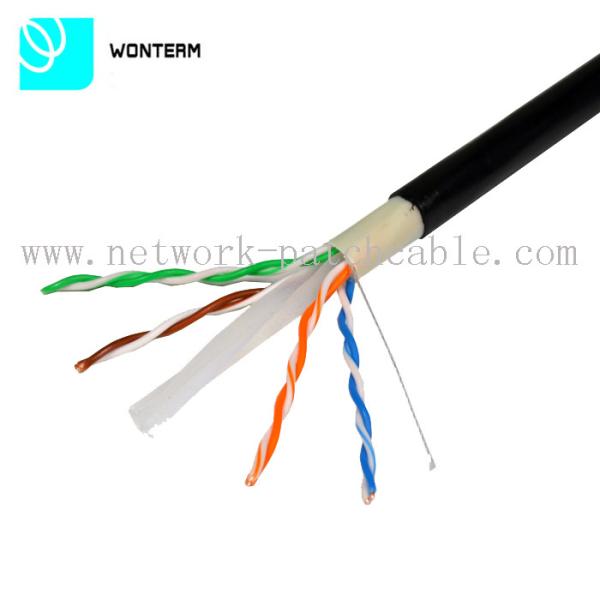

Outdoor UTP cat6 Black PVC+PE jacket 0.51mm BC 8 core Network cable
Outdoor UTP cat6 Black PVC+PE jacket 0.51mm BC 8 core Network cable
Outdoor UTP cat6 Black PVC+PE jacket 0.51mm BC 8 core Network cable
Outdoor UTP cat6 Black PVC+PE jacket 0.51mm BC 8 core Network cable
Specifications
Brand Name :
WONTERM
Model Number :
WT6803-or
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
First packed in box and then put two boxes in one Carton.
Jacket :
PVC(LSZH)+PE
Insulation :
Solid polyolefin
Nominal Outer Diameter :
6.0mm
Number of Conductors :
8
Length per Box :
305M (500M/1000M...)
Description

Outdoor UTP cat6 Black PVC+PE jacket 0.51mm BC 8 core Network cable

Specifications:

1. BC: Bare Copper

2. Rated Temperature:75°C

3. Various lengths and colors are available

Customers' specifications are welcomed.

CAT6 UTP/FTP/SFTP SOLID CABLE
Insulation Resistance Min. 5000 mega-ohms-km at 20°C
Dielectric Test 1000V DC/min, Bo Breakdown
Temperature Rating 75°C
Voltage Rating 30V
Frequency Zin-OS Fitted Z SRL.MIN ATT.MAX DELAY.MAX DELAY.MAX SKEW NEXT.MIN PSNEXT.MIN
(Mhz) (Ohm) (Ohm) (dB) (dB/100m) (ns/100M) (ns/100M) (dB) (dB)
1 100 ± 15 100 ± 15 20.00 1.84 68.00 65.00 74.30 72.30
4 23.10 3.69 56.00 53.00 65.27 63.27
8 24.52 5.26 49.90 46.90 60.75 58.75
10 25.00 5.89 48.00 45.00 593.00 57.30
16 25.00 7.51 43.90 40.90 56.24 54.24
20 25.00 8.43 42.00 39.00 54.78 52.78
25 24.32 9.47 40.00 37.00 53.33 51.33
31.25 23.64 10.64 38.10 35.10 51.88 49.88
62.5 21.54 15.36 32.10 29.10 47.36 45.36
100 20.11 19.78 28.00 25.00 44.30 42.30
200 18.00 28.97 22.00 19.00 39.78 37.78
250 17.32 32.84 20.00 17.00 38.33 36.33

What is the application of the cable ?

- Computer network cabling project

- Broadband network communication

- Ethernet network

-Audio and data transmission

-10/100 Base-T4

-100Base-TX

-1000Base-T(Gigabit Ethernet)

-155Mbps ATM

-622Mbps ATM

Trade term:

Payment T/T,L/C,D/P,D/A,Paypal,Western Union,MoneyGram,based on your quantity
Delivery time Within 7 days,finally based on your quantity
Sample Sample is free,we cooperate with DHL,TNT,UPS,FEDEX,EMS,China Air Post, ect
Discount We can offer when your order is over 100 boxes
