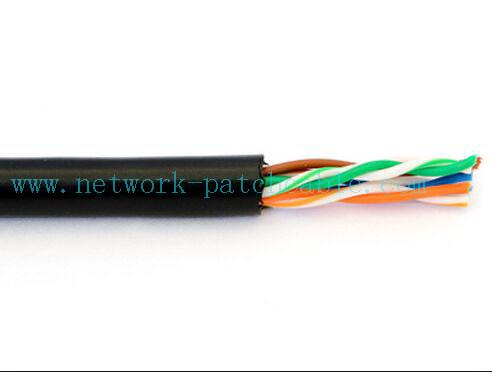

UTP / FTP / SFTP Outdoor Cat5e Cable Network With Fluke Tested Approved
UTP / FTP / SFTP Outdoor Cat5e Cable Network With Fluke Tested Approved
Specifications
Brand Name :
WONTERM
Model Number :
WT5803-or
Certification :
CE/FCC/UL/ROHS
Place of Origin :
China
MOQ :
30pcs
Price :
negotiation
Payment Terms :
T/T or western Union
Supply Ability :
2500pcs per month
Delivery Time :
10 working days after received your payment
Packaging Details :
First packed in box and then put two boxes in one Carton.
Application :
outdoor
Conductor :
BC, CCA, TC, CCS
Number of Conductors :
8
Packaging :
2 boxes/carton
Carton CBM(mm) :
42*37*37
Conductor Diameter :
24awg(0.45mm~0.5mm)
Description

UTP / FTP / SFTP Outdoor Cat5e Cable Network With Fluke Tested Approved

Specifications:

Conductor

Solid Bare Copper

AWG

24AWG

Conductor Diameter (mm)

0.5mm

Pass Fluke

Yes

Jacket

PVC+PE

Color

Black

Outer Diameter (±0.2mm)

5.0

Rip Cord

Yes

Weight(kg/km)

34

Description:

Electrical Properties:

Conductor resistance,maximum, Ω/km(20 °C ) 95
Mutual pairs capacitance nf/km 54
Dielectric strength(DC test voltage for 1min,) DC(V) 1000
Insulation Resistance,minimum MΩ.km 5000

Product Transmission Characteristics:

Frequency Return Loss Attenuation NEXT PSNEXT ELFEXT PSELFEXT Characteristic Impedance Transmission Delay
MHZ ≥ dB ≤ dB ≥dB ≥ dB ≥dB ≥ dB Ω ≤ns/100m
1.0 20.0 2.0 65.3 62.3 64.0 61.0 100±15 570.0
4.0 23.0 4.1 56.3 53.3 52.0 49.0 100±15 552.0
10.0 25.0 6.5 50.3 47.3 44.0 41.0 100±15 545.4
16.0 25.0 8.2 47.2 44.2 39.9 36.9 100±15 543.0
20.0 25.0 9.3 45.8 42.8 38.0 35.0 100±15 542.0
31.25 23.6 11.7 42.9 39.9 34.1 31.1 100±15 540.4
62.5 21.5 17.0 38.4 35.4 28.1 25.1 100±15

538.6
100.0 20.1 22.0 35.3 32.3 24.0 21.0 100±15 537.6

Applications:

Competitive Advantage:

A: The delivery date is about 5-15 days after receipt of payment.

4.What is your payment terms?

B: 30% deposit in advance and 70% balance before shipment.

C: Free samples are available; you just need to pay the express fee. You can provide your a/c like DHL, or you can call your courier to pick up from our office.
