40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting
40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting
40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting
40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting
Specifications
Brand Name :
OEM/ ODM/ YUEXIANKE
Model Number :
FTTH Drop Cable
Certification :
UL/ CE/ ETL/ ROHS/ ANATEL
Place of Origin :
China
MOQ :
1000 Meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability :
100000 Meters/Day
Delivery Time :
7~15Work Day
Packaging Details :
4000M/drum， Color and OEM Package available. 20" Container Full Load: 400km 40" Container Full Load: 800km
Number of Conductors: :
2
Zero Dispersion Wavelength: :
1300~1324nm
Cladding Diameter: :
125±0.7μm
Coating Diameter: :
243±7μm
Fiber count: :
1/2/4 cores
Weight (kg/km): :
40
Attenuation discontinuity: :
≤0.05 dB
Zero Dispersion Slope: :
≤0.090ps/(nm2.km)
Description

Outdoor Overhead Aerial Self-supporting FTTH Drop Figure 8 Fiber Optic Cable

Products Description

Fiber Parameters

No. Items Unit Specification
G.657A1
1 Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
10 Macro-Bending Loss 1turn×10mm radius @1550nm dB ≤0.75
1turn×10mm radius@1625nm dB ≤1.5

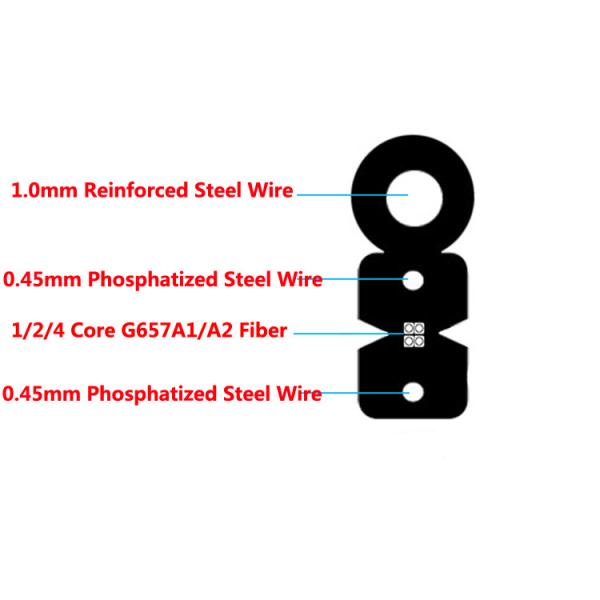

Cable Parameters

Items Specifications
Fiber Count 2
Colored Coating Fiber Dimension 250±15μm
Color Blue, Orange
Strength Member Dimension 0.5mm
Material FRP
Self-Supporting Member Dimension 1.0mm
Material Steel Wire
Jacket Dimension 5.2±0.2mm×2.0±0.1mm
Material LSZH
Color Black

Mechanical and Environmental Characteristics

Items Unite Specifications
Tension (Long Term) N 300
Tension (Short Term) N 600
Crush (Long Term) N/10cm 1000
Crush (Short Term) N/10cm 2200
Min. Bend Radius (Dynamic) mm 20D
Min. Bend Radius (Static) mm 10D
Installation Temperature ℃ -20~+60
Operating Temperature ℃ -40~+70
Storage Temperature ℃ -40~+70

40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting

Packaging & Shipping

40kg/Km FTTH Drop Figure 8 Fiber Optic Cable Outdoor Overhead Aerial Self Supporting

Our Service

Our company provides R & D, sales, technical support and after-sales service to ensure that our customers have a better purchase and use experience. Our strengths:

1. Source manufacturer

Factory direct sales, set research and development, production and processing, operation and sales of high-tech enterprises

2. Strong strength

With complete machining equipment and quality assurance supervision system, we provide first-class products for users

3. Quality assurance

Strict selection of high-quality materials, through fine production, strict control of each process to ensure product quality

4. Processing and customization

Accurate proofing, in order to solve the problem of slow efficiency, our proofing zone supports free drawings and samples, processing and customization

5. Stable supply of goods

Large scale systematic production, the factory can provide sufficient and stable supply of high quality goods

6. High quality after sale

Constantly improve the production process, improve the utilization of equipment, dedicated to our service for you, after-sales worry free

FAQ

Q1: Are you a trading company or manufacturer ?
We are a professional manufacturer that producing communication cable, such as UTP/FTP/SFTP cat5,cat5e,cat6,cat7, patch cord,coaxial cable,power cable,etc. When you have trip in China, feel free to contact us to pick you up in the airport and welcome to visit our factory.

Q2: Why choose us?What is your advantage?
Our factory established in 2011, located in Baiyun district Dongguan City. Produce various cables for more than 9 years experience.You can get quality-assured products and a excellent buying experience from us!

Quality products: High quality raw material
Competitive price: Factory price
OEM service: Offer and welcome OEM service
Thoughtful service : Fast response within 24hours
Quick delivery time: Strict production plan and delivery date.

Q3: Will you accept samples order?
Yes, You are welcome to place sample order to test our superior quality and services.
