Product Overview

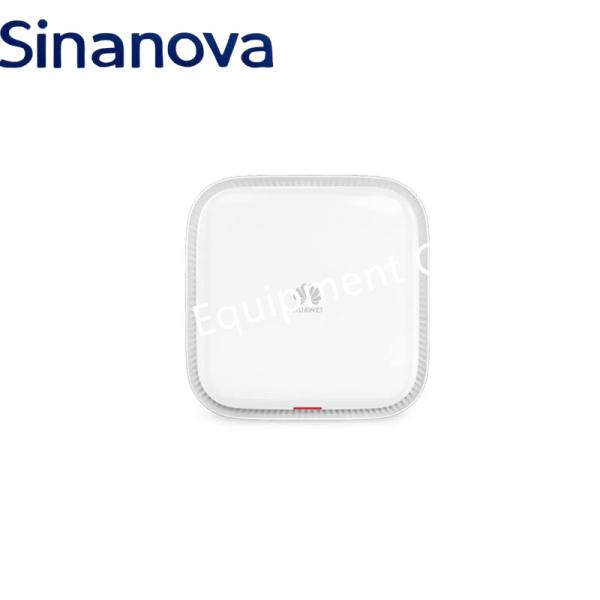

The AirEngine 8760-X1-PRO is a cutting-edge high-performance wireless access point designed for enterprise environments requiring ultra-fast Wi-Fi 6 and Wi-Fi 6E connectivity. It supports tri-band operation with 2.4GHz, 5GHz, and 6GHz bands, delivering exceptional throughput and low latency for high-density user scenarios. Ideal for offices, campuses, and smart buildings, this access point ensures seamless wireless coverage and enhanced network capacity.
Product Features
This access point features tri-band radios, supporting the latest Wi-Fi 6E standard with 160 MHz channels on the 6 GHz band for maximum data rates. It incorporates advanced OFDMA, MU-MIMO, and BSS Coloring technologies to optimize spectrum efficiency and reduce interference. The device supports flexible deployment options including centralized and distributed architectures, with robust security mechanisms such as WPA3 and enhanced encryption. Intelligent AI-powered radio management improves network stability and user experience.
Product Details
| Attribute | Description |
|---|---|
| Model | AirEngine 8760-X1-PRO |
| Wireless Standards | Wi-Fi 6 (802.11ax), Wi-Fi 6E |
| Frequency Bands | Tri-band: 2.4 GHz, 5 GHz, 6 GHz |
| Max Data Rate | Up to 10.8 Gbps |
| Antennas | Integrated high-gain antennas |
| MU-MIMO | Up to 8 spatial streams |
| Security Features | WPA3, Enhanced Encryption, 802.1X |
| Operating Temperature | -10°C to 55°C |
| Dimensions (WxDxH) | 230mm x 230mm x 48mm |
| Power Supply | PoE (802.3bt), Optional AC adapter |
Product Specifications
| Parameter | Specification |
|---|---|
| Radios | 1 x 2.4 GHz, 1 x 5 GHz, 1 x 6 GHz |
| Max Clients | 1024 per AP |
| OFDMA | Supported |
| BSS Coloring | Supported |
| Beamforming | Supported |
| Management | Cloud, On-premises, AI-powered |
| QoS | WMM, Enhanced QoS |
Similar Models Comparison
| Model | Bands | Max Data Rate | Max Clients | Highlights |
|---|---|---|---|---|
| AirEngine 8760-X1-PRO | Tri-band (2.4/5/6 GHz) | 10.8 Gbps | 1024 | Latest Wi-Fi 6E with AI radio management |
| AirEngine 8760-X1 | Dual-band (2.4/5 GHz) | 8.4 Gbps | 1024 | Wi-Fi 6, high performance |
| AirEngine 8760-X3-PRO | Tri-band (2.4/5/6 GHz) | 11.4 Gbps | 2048 | Higher client density, enhanced antennas |
| AirEngine 8760-X2-PRO | Tri-band (2.4/5/6 GHz) | 10.8 Gbps | 1536 | Mid-tier tri-band access point |
Latest Models in Series
| Model | Bands | Max Data Rate | Release Year | Highlights |
|---|---|---|---|---|
| AirEngine 8760-X1-PRO | Tri-band (2.4/5/6 GHz) | 10.8 Gbps | 2023 | Latest Wi-Fi 6E access point with AI management |
| AirEngine 8760-X2-PRO | Tri-band (2.4/5/6 GHz) | 10.8 Gbps | 2022 | Enhanced client capacity |
| AirEngine 8760-X3-PRO | Tri-band (2.4/5/6 GHz) | 11.4 Gbps | 2023 | High client density and performance |
