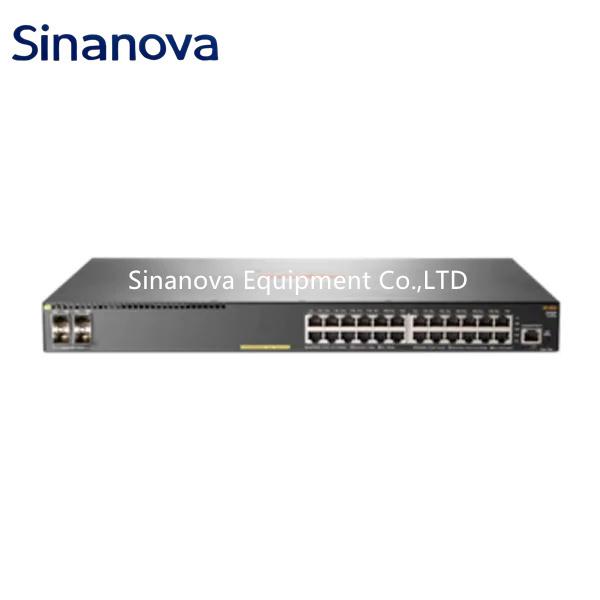

Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
Specifications
Brand Name :
Hp e
Model Number :
JL660A
Certification :
ce
Place of Origin :
USA
MOQ :
1 pc
Price :
$10/pc
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
1-3 days
Packaging Details :
original new
Part number :
JL660A
Details :
ayer 3 Smart Rate switch
Keywords :
SFP56 uplink switch
Product Features :
enterprise access switch
Packing :
original
Shipping :
DHL FEDEX UPS
Payment :
TT 100% in advance
Lead time :
1-2 days
Description

JL660A 6300M Managed 24G PoE+ Switch with Advanced Routing and High-Speed Uplinks

Product Brief

The Aruba 6300M JL660A is a high-performance Layer 3 managed switch designed for enterprise access, aggregation, and core deployments. It features 24 HPE Smart Rate 1/2.5/5GbE Class 6 PoE ports and 4 SFP56 uplink ports, providing flexible connectivity options for modern network infrastructures. With a robust 880 Gbps switching capacity and support for advanced routing protocols such as BGP, EVPN, VXLAN, VRF, and OSPF, it ensures efficient and scalable network operations. The switch also supports IEEE 802.3bt high-power PoE, making it ideal for powering high-speed access points, IP phones, and other IoT devices.

Product Details Table

Item Description
Product Name Aruba 6300M 24SR5 CL6 PoE 4SFP56 Switch (JL660A)
Ports 24 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE ports + 4 x SFP56 uplinks
Switching Capacity 880 Gbps
Forwarding Rate 660 Mpps
Form Factor 1U rack-mountable
Management Aruba AOS-CX, Aruba Central, Web GUI, CLI, SNMP
Special Features Layer 3 routing (BGP, EVPN, VXLAN, VRF, OSPF), IEEE 802.3bt PoE, VSF stacking
Power Supply Dual redundant hot-swappable AC or DC options
Warranty Limited lifetime

Key Features

24 HPE Smart Rate 1/2.5/5GbE Class 6 PoE ports supporting up to 60W per port

4 x SFP56 uplink ports for high-speed connectivity

880 Gbps switching capacity and 660 Mpps forwarding rate

Support for advanced Layer 3 routing protocols including BGP, EVPN, VXLAN, VRF, and OSPF

IEEE 802.3bt high-power PoE for powering high-speed access points and IoT devices

Virtual Stacking Framework (VSF) support for scalable and simplified management

Dual redundant hot-swappable power supplies for high availability

1U rack-mountable form factor for efficient use of rack space

Comprehensive management options via Aruba AOS-CX, Aruba Central, Web GUI, CLI, and SNMP

Product Specification Table

Specification Value
Product Model JL660A
Switching Type Layer 3 Managed
Ports 24 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE + 4 x SFP56
Console Port USB-C and RJ45
Switching Capacity 880 Gbps
Forwarding Rate 660 Mpps
MAC Address Table 32,768 entries
Routing Table Size IPv4: 16,000; IPv6: 8,000 entries
Latency 1GbE: 4.24 µs; 10GbE: 1.50 µs; 25GbE: 2.91 µs; 50GbE: 3.49 µs
Processor & Memory Quad-core ARM Cortex A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC
Power Consumption Max 120W
Dimensions 44.5 x 43.5 x 4.4 cm (1U height)
Operating Temperature 0°C to 45°C
Humidity 15% to 95% non-condensing
Certifications UL, IEC, FCC, RoHS
Warranty Limited lifetime

Similar Models Comparison Table

Model Ports Highlights
JL659A 48 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE + 4 x SFP56 Higher port density for larger deployments
JL661A 48 x 1GbE Class 4 PoE + 4 x SFP56 Lower port speeds suitable for smaller networks
JL662A 24 x 1GbE Class 4 PoE + 4 x SFP56 Cost-effective solution for basic networking

Latest Model in Same Series Table

Model Ports Key Upgrade
JL659A 48 x HPE Smart Rate 1/2.5/5GbE Class 6 PoE + 4 x SFP56 Increased port density and higher PoE budget


Aruba 6300M JL660A 24G PoE+ Switch with 4 SFP56 Uplinks
