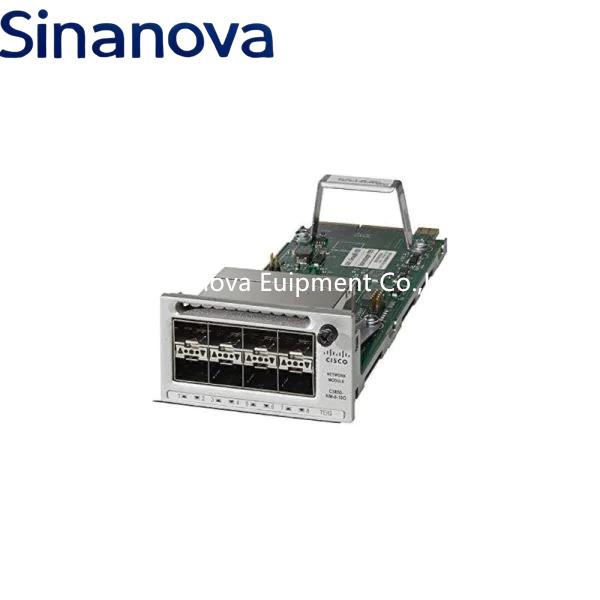

C9300-NM-8X 8-Port 10G SFP+ Network Module for Catalyst 9300
Product Overview
The Cisco C9300-NM-8X is a network module for the Cisco Catalyst 9300 Series switches, offering 8 ports of 10G SFP+ uplinks. It provides flexible high-speed uplink connectivity, allowing enterprise networks to scale bandwidth and aggregate traffic efficiently. Ideal for campus and enterprise access layer networks, this module enhances the scalability and performance of the 9300 Series platform.
Product Details and Features
| Item | Description |
|---|---|
| Model | C9300-NM-8X |
| Product Type | Network Module |
| Compatible Series | Cisco Catalyst 9300 Series (C9300 models only) |
| Ports | 8 x 10G SFP+ |
| Port Type | Hot-swappable, SFP+ (supports 1G and 10G modules) |
| Module Type | Uplink Module |
| Max Throughput | 80 Gbps total uplink bandwidth |
| Hot Swappable | Yes |
| Software Compatibility | Cisco IOS XE |
| Use Case | High-speed uplinks, switch stacking, aggregation uplinks |
| Installation | Front-panel slot on compatible Catalyst 9300 switch |
| Ideal For | Enterprise access switching, uplink scalability, 10G network expansion |
Product Highlights
Provides eight 10G SFP+ ports for high-speed uplink or fiber aggregation
Fully compatible with Cisco Catalyst 9300 Series switches
Supports both 1G SFP and 10G SFP+ transceivers for flexibility
Hot-swappable and easy to install
Enables future-proofing for network bandwidth growth
Similar Models Comparison
| Model | Uplink Ports | Port Speed | Compatibility | Use Case |
|---|---|---|---|---|
| C9300-NM-8X | 8 x SFP+ | 1G/10G | Catalyst 9300 | High-performance uplinks |
| C9300-NM-4G | 4 x SFP | 1G | Catalyst 9300 | Basic fiber uplinks |
| C9300-NM-2Q | 2 x QSFP+ | 40G | Catalyst 9300 | 40G backbone aggregation |
| C9300-NM-4M | 4 x MGig | 100M/1G/2.5G/5G/10G | Catalyst 9300 Multigig | Flexible multigig access |
Latest Compatible Switches
| Model | Ports | Uplink Support via Module | Switching Capacity | Stackable |
|---|---|---|---|---|
| C9300-48P-E | 48 x 1G PoE+ | C9300-NM modules (incl. 8X) | 208 Gbps | Yes |
| C9300-24T-A | 24 x 1G | C9300-NM modules | 128 Gbps | Yes |
| C9300X-48HX | 48 x MGig PoE+ | Native 100G, optional 40G | 1.2 Tbps | Yes |
