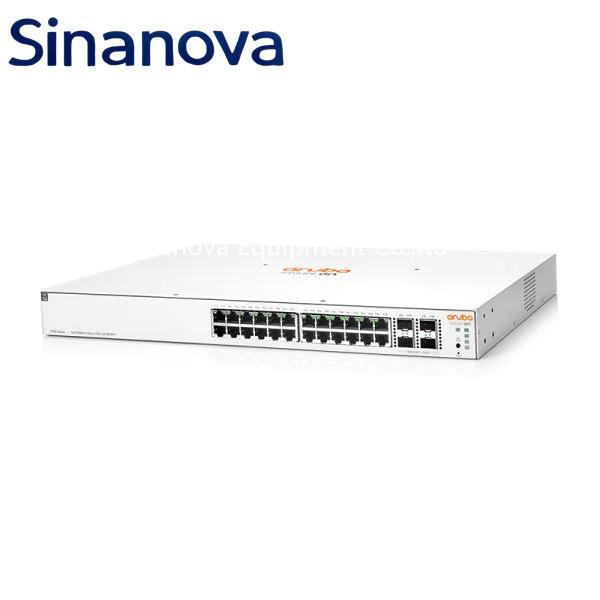

JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
JL807A Enterprise L2/L3 Managed Switch with 25G Uplink
Specifications
Brand Name :
Hp e
Model Number :
JL807A
Certification :
ce
Place of Origin :
USA
MOQ :
1 pc
Price :
$10/pc
Payment Terms :
T/T
Supply Ability :
500pcs
Delivery Time :
1-3 days
Packaging Details :
original new
Part number :
JL807A
Details :
25G uplink switch
Keywords :
reliable enterprise switch
Product Features :
high-throughput switch
Packing :
original
Shipping :
DHL FEDEX UPS
Payment :
TT 100% in advance
Lead time :
1-2 days
Description

JL807A High-Speed Network Switch – Enterprise L2/L3 Managed Switch

Product Overview
The JL807A is an enterprise-class high-speed network switch engineered for modern data centers and large corporate networks. It provides advanced Layer 2/3 switching, multiple 25G/40G uplinks, and robust security features for demanding network environments. Designed for scalability, reliability, and energy efficiency, the JL807A supports virtualization, cloud services, and bandwidth-intensive applications, ensuring low-latency, high-throughput performance for mission-critical operations.

Product Detail Table

Feature Specification
Model JL807A
Device Type Managed Switch
Ports 48 x 1G RJ45, 8 x 25G/40G SFP+
Switching Capacity 1.2 Tbps
Forwarding Rate 950 Mpps
VLAN Support 4K VLANs
Layer L2/L3
Management CLI, Web GUI, SNMP
Redundancy Dual power supply support
MTBF 200,000 hours
Dimensions 440 x 220 x 44 mm
Operating Temperature 0°C to 50°C

Key Features

High-density Gigabit and 25G/40G uplink ports for maximum throughput

Advanced Layer 2/3 switching and routing capabilities

Comprehensive security with ACLs, 802.1X authentication, and port security

Dual redundant power supply for uninterrupted operation

CLI, Web GUI, and SNMP management support

Energy-efficient design to reduce operational costs

Full Specifications Table

Specification Details
Switching Fabric 1.2 Tbps
Forwarding Rate 950 Mpps
Jumbo Frame 9216 bytes
MAC Address Table 512K entries
IPv4/IPv6 Routing Supported
QoS 8 hardware queues per port, DSCP, CoS
Link Aggregation LACP support
Port Mirroring Supported
Redundant Power Supply Supported
Power Consumption ≤350 W
Operating Temperature 0°C–50°C
Storage Temperature -40°C–70°C
Humidity 10%–90% non-condensing
MTBF 200,000 hours

Similar Models Specification Table

Model Ports Switching Capacity Forwarding Rate Layer Key Feature
JL800A 48 x 1G, 4 x 25G 960 Gbps 760 Mpps L2/L3 High-performance, scalable
JL802A 48 x 1G, 8 x 25G 1.2 Tbps 950 Mpps L2/L3 Advanced QoS, dual power
JL805A 48 x 1G, 12 x 25G 1.5 Tbps 1,140 Mpps L2/L3 Top-tier performance, redundant power

Latest Model in Same Brand/Series Table

Model Ports Switching Capacity Forwarding Rate Layer Key Feature
JL810A 48 x 1G, 16 x 40G 1.8 Tbps 1,400 Mpps L2/L3 Ultra-high performance, advanced security, dual redundant power
