FusionServer Pro 2288H V5 2288h V6 Rack Server 25*2.5inch HDD Chassis With 2*GE And 2*10GE Electrical Ports
FusionServer Pro 2288H V5 2288h V6 Rack Server 25*2.5inch HDD Chassis With 2*GE And 2*10GE Electrical Ports
Specifications
Model Number :
FusionServer 2288h V6
Place of Origin :
china
MOQ :
1
Product Name :
Fusion Server Pro 2288H V5 2288h V6 rack server 25*2.5inch HDD Chassis With 2*GE and 2*10GE Electrical Ports
Keyworlds :
Rack Server
Processor Type6226 :
6226
Form Factor :
2U Rack Server
Memory capacity :
32G
Processor Type :
6226
Description

Fusion Server Pro 2288H V5 2288h V6 rack server 25*2.5inch HDD Chassis With 2*GE and 2*10GE Electrical Ports

Description

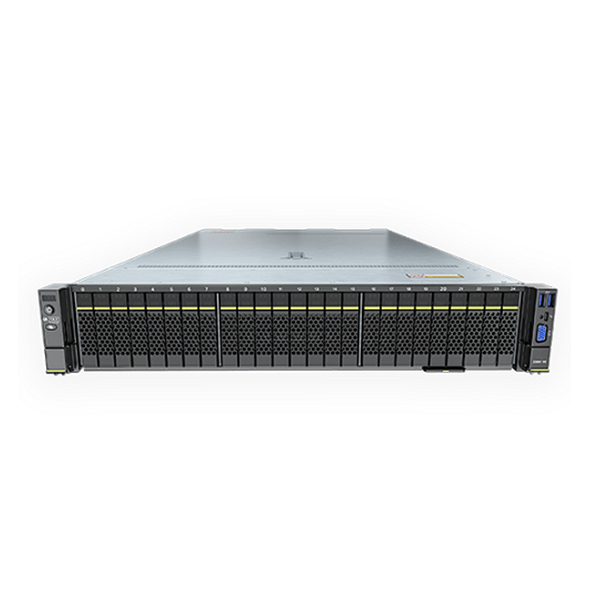

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations and can be widely used in cloud computing, virtualization, databases, and big data. The 2288H V6 is configured with two I ntel Xeon Scalable processors, 16/32 DDR4 DIMMs, and 14 PCIe slots, providing large-capacity local storage resources. It incorporates patented technologies, such as DEMT and FDM, and integrates FusionDirector software for entire-lifecycle management, helping customers drive down OPEX and improve ROI.

Product Spectification
2288H V5 Item

Specification
Form factor 2U rack server
CPU

* 2x1500W Enhanced Platinum AC Power Module
* 2x Intel Xeon Gold 6226(2.7GHz/12-Core/19.25MB/125W)Cascade lakeProcessor (with heatsink)
* 12x DDR4 RDIMM Memory,32GB,2933MT/s,2Rank(2G*4bit),1.2V,ECC
* 12xSSD,960GB,SATA 6Gb/s,Read intensive,PM893 Series,2.5inch(2.5inch Drive Bay)

*1x SM212 Onboard NIC,4xGE Electrical Interface(I350),RJ45
*2x 3*x8 (x16 slot) Riser1 Module
*1x SP212 Ethernet Adapter,1Gb Electrical Interface(Intel I350),4-Port,RJ45,PCIe 2.0 x4
*2x 10G Electrical Inteface(Intel X550),2-Port,RJ45,PCIe 2.0 x8
*2x Qlogic,FC HBA,16Gb(QLE2692),2-Port,SFP+(with 2x Multi-mode Optical Transceiver),PCIe 3.0 x8
*1x2U Ball Bearing Rail Kit(Direct delivery material)
*1x 1U/2U Cable Management Arm(Direct delivery material)

FusionServer Pro 2288H V5 2288h V6 Rack Server 25*2.5inch HDD Chassis With 2*GE And 2*10GE Electrical Ports
Q1: Can I get some samples?
A: Yes, sample order is available for quality check and market test. But you have to pay the sample cost and express cost.
Q2: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q3: What's the lead time.
A: According to the order quantity, small order usually need 3-5 days, big order need negotiation.
Q4: What's your warranty terms?
A: We supply 12 months warranty time.
Q5: What's your payment terms?
A: We receive Escrow, T/T, West Union, Cash and etc
