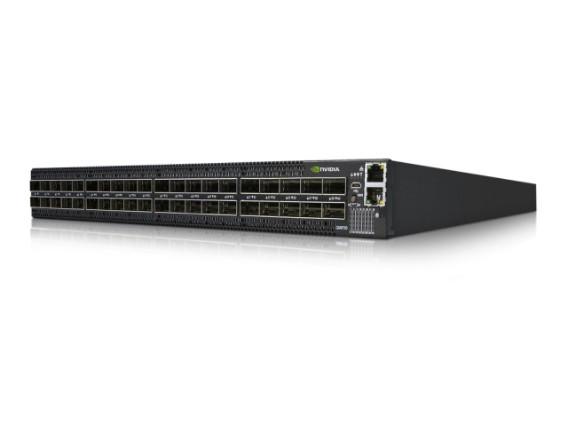

Mellanox MQM8790 - HS2F Quantum HDR InfiniBand Switch
Mellanox MQM8790 - HS2F Quantum HDR InfiniBand Switch
Specifications
Model Number :
MQM8790 - HS2F
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T, D/P, D/A, Western Union,
Supply Ability :
10000 set per month
Delivery Time :
3-5
Packaging Details :
box
Product Name :
Mellanox MQM8790 - HS2F Quantum HDR InfiniBand Switch
Keywords :
MQM8790-HS2F
Products Status: :
Stock
Availability :
Backordered
Technology :
InfiniBand
Max Speed :
HDR
Connector Type :
QSFP56
Ports :
40
Description

Mellanox MQM8790 - HS2F Quantum HDR InfiniBand Switch

Description

QM8790 is the world's smartest network switch, designed to enable in-network computing through the Co-Design Scalable Hierarchical Aggregation and Reduction Protocol (SHARP) technology. The Co-Design architecture enables the usage of all active data center devices to accelerate the communications frameworks using embedded hardware, resulting in an order of magnitude application performance improvements.

Key Features

  • Performance
    • 40 x HDR 200Gb/s ports in a 1U switch
    • 80 x HDR100 100Gb/s ports (using splitter cables)
    • 16Tb/s aggregate switch throughput
    • Sub-130ns switch latency
  • Optimized design
    • 1+1 redundant & hot-swappable power
    • N+1 redundant & hot-swappable fans
    • 80 gold+ and energy star certified power supplies
  • Advanced design
    • Adaptive routing
    • Congestion control
    • Collective offloads (SHARP technology)
    • VL mapping (VL2VL)
Product Spectification

Product Name CloudEngine S5736 - S48S4XC
Performance
 200Gb/s per port
DescriptiSwitch radix
on		 40 non-blocking ports with
aggregate data throughput
up to 16Tb/s
Connectors and
cabling		 Quad small form-factor
pluggable (QSFP56)
connectors; passive or
active copper or active fiber
cable; optical module
Management
ports

1x RJ45
1x console port: RS232
1x micro USB
CPU

Broadwell ComEx D-1508
2.2GHZ
System
memory		 Single 8GB
Software
 MLNX-OS

Mellanox MQM8790 - HS2F Quantum HDR InfiniBand Switch

Q: Do I need to buy SFP modules for FutureMatrix S5736-S48S4XC switch?

A: Yes, as S5736-S48S4XC is an optical switch, the optical ports will not able to work without SFP module, if you don’t have SFP module, you will need to purchase addtional SFP module.

Q: Does FutureMatrix S5736-S48S4XC support Redundant power supply?

A:Yes, 1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.

Q: Can I use compatible SFP/SFP+ module on FutureMatrix S5736-S48S4XC switch?

A:Yes, but the switch may generate alarm, however, it will not affect normal use.

Q: Can I get technical support from Thunder-link.com if we purchase FutureMatrix S5736-S48S4XC from you?

A: Yes, Thunder-link.com has experienced technical team on switches, however, you may need to purchase

technical support service from us as by default we only provide one year hardware warranty.
