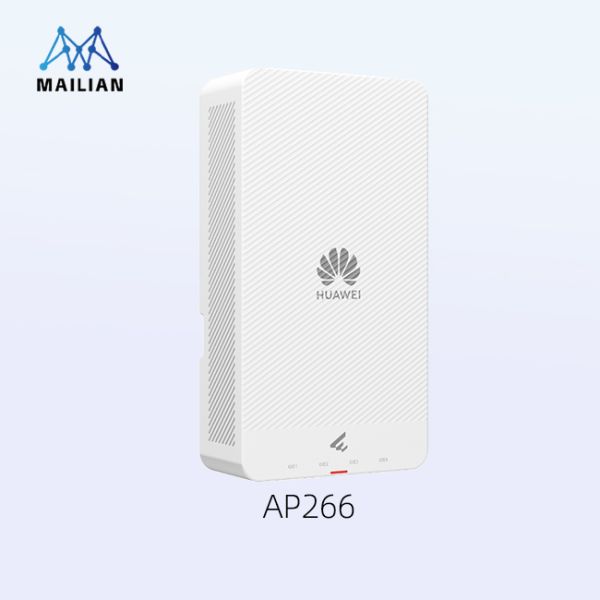

AP266 Wall Plate AP WiFi 6 Wireless Access Point with 2.975 Gbps Speed Dual Radio for 128 Access Users
AP266 Wall Plate AP WiFi 6 Wireless Access Point with 2.975 Gbps Speed Dual Radio for 128 Access Users
Specifications
Brand Name :
huawei
Model Number :
AP266
Place of Origin :
china
MOQ :
1
Price :
EXW: USD 400-450, subject to exchange rate and order quantity
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
About 15–45 days, depending on order quantity.
Optimal Signal Distance (m) :
20
Max Number of Access Users :
128
Device Rate :
2.975 Gbps
Power supply mode :
PoE
Maximum PoE output power [W :
1
Description
AP266 Wall Plate AP WiFi 6 Wireless Access Point
High-performance WiFi 6 access point delivering 2.975 Gbps dual-band connectivity, designed for wall plate installation and supporting up to 64 concurrent users.
Key Features
  • WiFi 6 (802.11ax) technology for enhanced performance
  • Dual-band operation: 2.4 GHz and 5 GHz
  • 2.975 Gbps maximum device rate
  • Supports up to 128 maximum / 64 recommended access users
  • Multiple installation options: wall, desk, ceiling, junction box
  • Power over Ethernet (PoE) powered
Technical Specifications
Wi-Fi Standards 2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type Desk, Wall, Ceiling (Gypsum Board), Junction Box (86 mm/1-Gang 120 mm/Octagonal)
Optimal Signal Distance 20 meters
Device Rate 2.975 Gbps
Power Supply PoE (802.3at/af)
Maximum PoE Output Power 15 W
Physical Ports GE (RJ45) x 5, 10M/100M/1000M auto-sensing
Radio Configuration 2 radios, 2x2 MIMO spatial streams
Channel Bandwidth Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz): 160 MHz
Maximum Transmit Power 2.4G: 20 dBm/chain, 23 dBm combined
5G: 20 dBm/chain, 23 dBm combined
Maximum Power Consumption 9.4 W (excluding PoE out)
Dimensions (without packaging) 160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Weight (without packaging) 0.23 kg (0.51 lb)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 5% RH to 95% RH, non-condensing
Antenna System Built-in smart antennas
2.4G: 4 dBi/chain peak, 2 dBi combined
5G: 4 dBi/chain peak, 1 dBi combined
Surge Protection: PoE ports feature comprehensive surge protection with differential mode: 0.5 kV and common mode: 4 kV protection, ensuring reliable operation in various environments.
