Specifications
Brand Name :
H3C
Model Number :
H3CS5130S-HI Series
Certification :
FCC/ICES/VCCI/CE/RCM/CCC/RoHS/REACH
Place of Origin :
CHINA
MOQ :
1
Price :
depending on order quantity and specific model
Supply Ability :
Up to 30 days
Delivery Time :
15 working days
Packaging Details :
See the hardware specification sheet for details based on the specific model.
Description
H3C S5130S-HI Series New Generation Gigabit Managed Ethernet Switch
The H3C S5130S-HI series switches are intelligent, manageable, and stackable switches designed for network environments demanding high performance, high port density, and easy deployment. They provide 10/100/1000Base-T auto-sensing Ethernet ports and 10G SFP+ optical ports. With a richer variety of port types, the switches support dual hot-pluggable power supplies, and some models are equipped with expansion slots.
Available Models

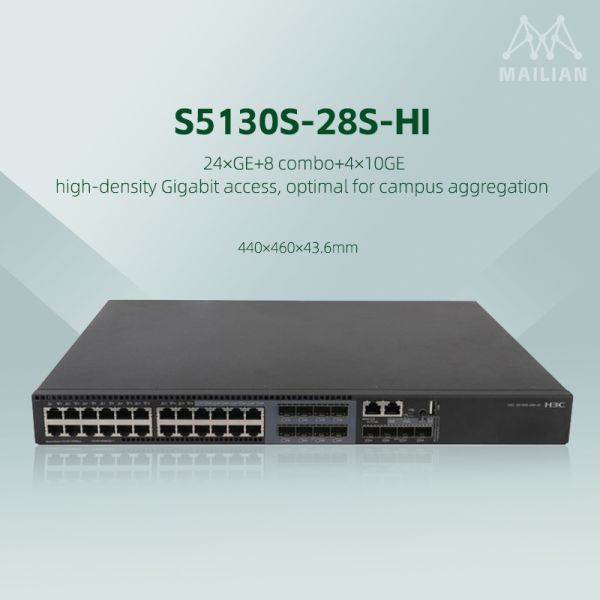

  • S5130S-28S-HI: 24 * 10/100/1000BASE-T Ethernet ports (8 combo ports), 4 * 1/2.5/10GE SFP+ ports, dual modular redundant power supplies

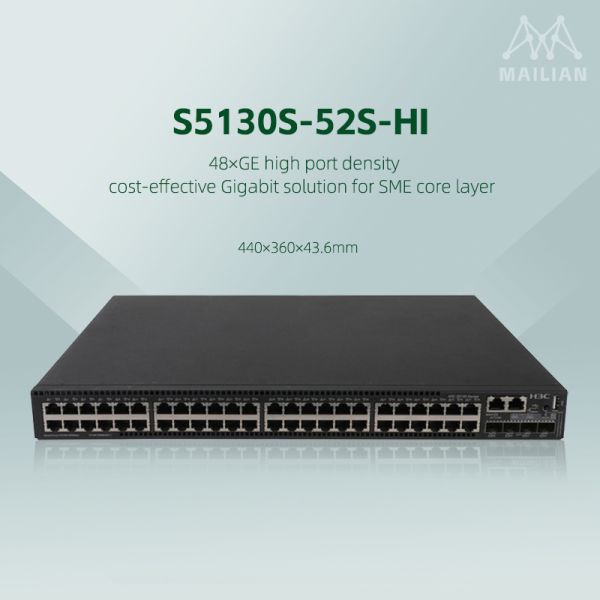

  • S5130S-52S-HI: 48 * 10/100/1000BASE-T Ethernet ports, 4 * 1/2.5/10GE SFP+ ports, dual modular redundant power supplies
  • S5130S-28S-PWR-HI: 24 * 10/100/1000BASE-T Ethernet ports (4 combo ports), 4 * 1/2.5/10GE SFP+ ports, dual modular redundant power supplies
  • S5130S-52S-PWR-HI: 48 * 10/100/1000BASE-T Ethernet ports, 4 * 1/2.5/10GE SFP+ ports, dual modular redundant power supplies
  • S5130S-28C-HI: 24 * 10/100/1000BASE-T electrical ports (8 SFP combo ports), 4 * 1/2.5/10GE SFP+ ports, 1 expansion slot, dual modular redundant power supplies
  • S5130S-52C-HI: 48 * 10/100/1000BASE-T electrical ports (2 SFP combo ports), 2 * 1/2.5/10GE SFP+ ports, 1 expansion slot, dual modular redundant power supplies

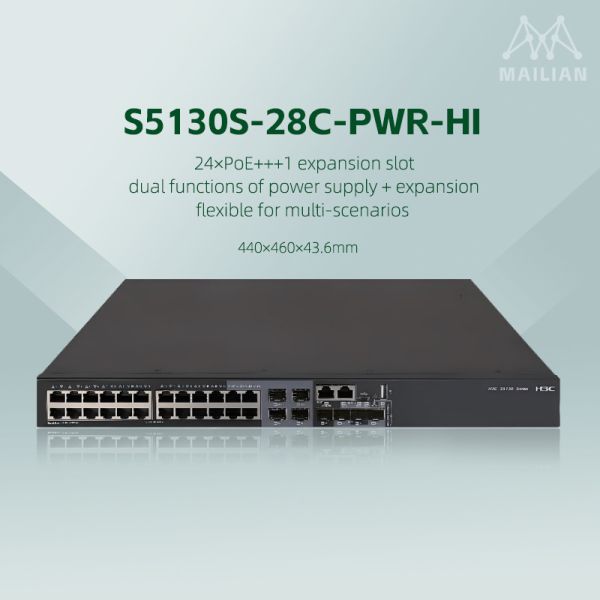

  • S5130S-28C-PWR-HI: 24 * 10/100/1000BASE-T (PoE+) electrical ports, 4 SFP combo ports, 4 * 1/2.5/10GE SFP+ ports, 1 expansion slot, dual modular redundant power supplies
  • S5130S-52C-PWR-HI: 48 * 10/100/1000BASE-T electrical ports, 2 SFP combo ports, 2 * 1/2.5/10GE SFP+ ports, 1 expansion slot, dual modular redundant power supplies

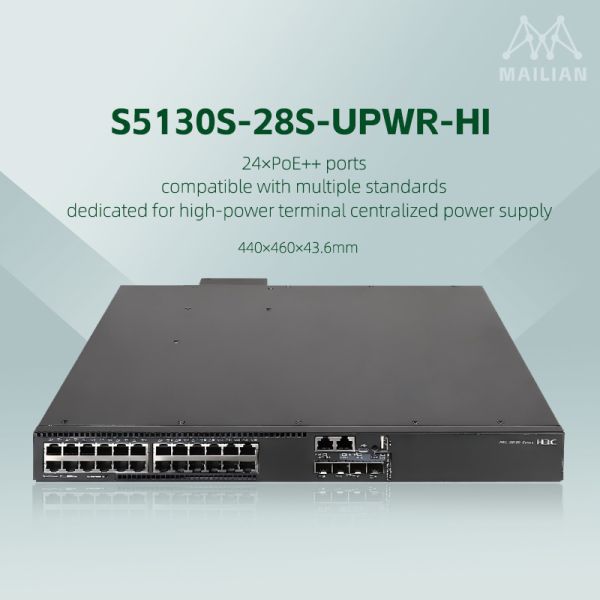

  • S5130S-28S-UPWR-HI: 24 * 10/100/1000BASE-T PoE++ electrical ports, 4 * 1/2.5/10GE SFP+ ports, dual modular redundant power supplies
Technical Specifications
Item S5130S-28S-HI S5130S-52S-HI S5130S-28S-PWR-HI S5130S-52S-PWR-HI S5130S-28S-UPWR-HI S5130S-28C-HI S5130S-52C-HI S5130S-28C-PWR-HI S5130S-52C-PWR-HI
Switching Capacity 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps 672Gbps/6.72Tbps
Packet Forwarding Rate 171Mpps/222Mpps 207Mpps/252Mpps 171Mpps/222Mpps 207Mpps/252Mpps 171Mpps/222Mpps 207Mpps/252Mpps 207Mpps/252Mpps 171Mpps/222Mpps 207Mpps/252Mpps
Fixed Ports 24 * 10/100/1000Base-T (8 combo), 4 * 1/2.5/10GE SFP+ 48 * 10/100/1000Base-T, 4 * 1/2.5/10GE SFP+ 24 * 10/100/1000Base-T (4 combo), 4 * 1/2.5/10GE SFP+ 48 * 10/100/1000Base-T, 4 * 1/2.5/10GE SFP+ 24 * 10/100/1000BASE-T PoE++, 4 * 1/2.5/10GE SFP+ 24 * 10/100/1000BASE-T (8 combo), 4 * 1/2.5/10GE SFP+ 48 * 10/100/1000BASE-T (2 combo), 2 * 1/2.5/10GE SFP+ 24 * 10/100/1000BASE-T (PoE+), 4 combo, 4 * 1/2.5/10GE SFP+ 48 * 10/100/1000BASE-T (PoE+), 2 combo, 2 * 1/2.5/10GE SFP+
PoE Support Not supported Not supported 802.3af/PoE, 802.3at/PoE+, up to 30W per port 802.3af/PoE, 802.3at/PoE+, up to 30W per port 802.3bt/PoE++, backward compatible Not supported Not supported 802.3af/PoE, 802.3at/PoE+, up to 30W per port 802.3af/PoE, 802.3at/PoE+, up to 30W per port
Dimensions (W*D*H, mm) 440*360*43.6 440*360*43.6 440*460*43.6 440*460*43.6 440*460*43.6 440*360*43.6 440*360*43.6 440*460*43.6 440*460*43.6
Weight ≤6kg ≤6.5kg ≤8.5kg ≤9.5kg ≤8.5kg ≤4.5kg ≤4.5kg ≤5.4kg ≤5.8kg
Advanced Features
High Reliability
Modular redundant dual power supplies, hardware protection technologies, and comprehensive link-level reliability protocols including IRF2, LACP, STP/RSTP/MSTP, and Smart Link.
Professional Lightning Protection
Built-in 10KV lightning protection capability for reliable operation in harsh environments.
PoE Capability
Supports Fast PoE and Perpetual PoE technologies for uninterrupted power to wireless APs, cameras, and other powered devices.
Green Energy Saving
Energy-efficient chips, auto-power-down, EEE technology, and compliance with EU RoHS environmental standards.
Comprehensive Protocol Support
The H3C S5130S-HI series supports extensive networking protocols including VLAN, QoS, ACL, DHCP, IP routing, multicast, security features, and comprehensive management capabilities through CLI, Web UI, SNMP, and NETCONF.
Environmental Specifications
Operating Temperature: -5°C to 45°C
Operating Humidity: 5%-95% (non-condensing)
Input Voltage: AC: 100V-240V AC, 50/60Hz | DC: -48V~-60V DC
