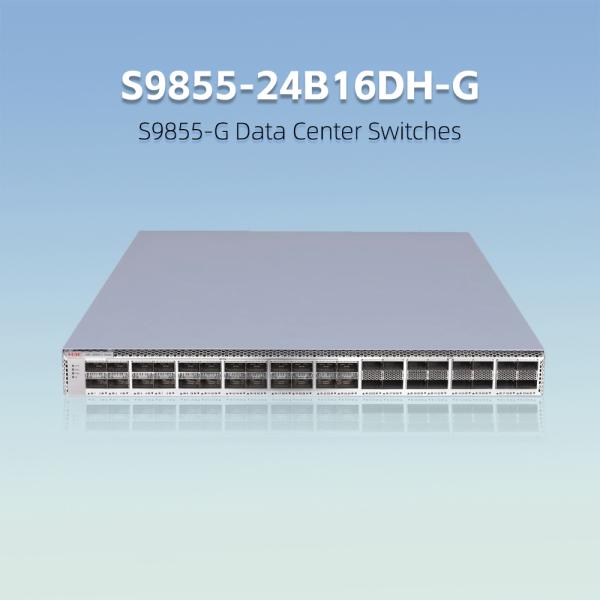

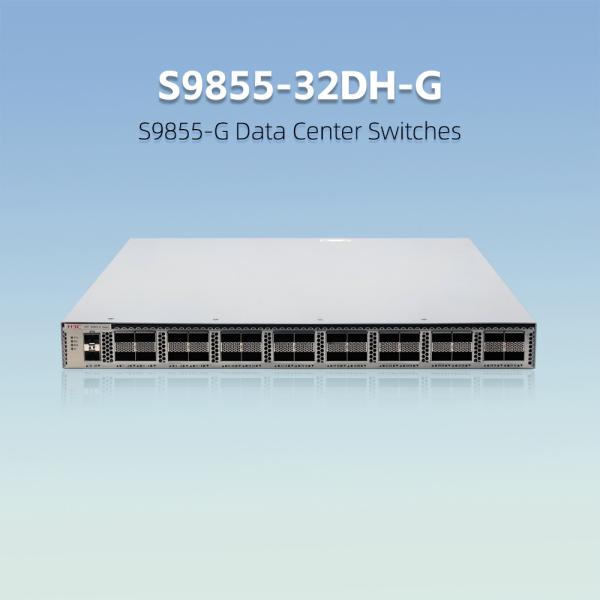

H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone
H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone
H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone
H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone
Specifications
Payment Terms :
L/C,T/T,Western Union
Forwarding Capacity :
5.6Bpps
Model Number :
S9855-24B16DH-G/S9855-32DH-G
Console ports :
1
Price :
$5850(According to the Model and configuration requirements)
Packaging Details :
Original packaging
Management Ethernet ports :
1
Products Item :
Data Center Switches - Aggregation Switch
Supply Ability :
500
communication mode :
Full-Duplex & Half-Duplex
Place of Origin :
China
Products status :
Order
Brand Name :
H3C
Switching Capacity :
22.4T-25.6T
Delivery Time :
Depending on the order
Dimensions (W×D×H, mm) :
44*442 * 550
MOQ :
1
Warranty :
3 years
USB port :
1
Description
H3C S9855-G Series 400G 200G High-Density Lossless Data Center Switches for AI Compute Spine Backbone
Overview

High-performance data center switches designed for AI and high-performance computing environments, featuring ultra-large bandwidth and comprehensive lossless networking capabilities.

  • Ultra-large 22.4T/25.6T non-blocking bandwidth with native 400G/200G ports for AI & HPC spine backbone
  • Complete data center lossless suite with RoCEv2 zero packet loss and ultra-low latency for RDMA computing clusters
  • Standard EVPN-VXLAN Fabric + M-LAG device redundancy with hitless batch device upgrade capability
  • Full-link telemetry: INT real-time monitoring + PTP high-precision clock for fast fault diagnosis
  • Programmable ASIC supporting OpenFlow/Ansible/NETCONF for SDN automatic deployment
  • Full hardware redundancy: hot-swappable PSUs & fans with bidirectional airflow for data center cooling
  • Multi-layer security: uRPF, MACsec, ARP/ND defense, and multi-level ACL to isolate malicious traffic
Product Specifications
Item S9855-24B16DH-G S9855-32DH-G
Dimensions (H * W * D) /mm 44 * 442 * 550
Weight ≤12.3kg
Console port 1
Out-of-band management port 10M/100M/1000M Base-T port: 1
USB port 1
CPU 2.2GHz
Flash/SDRAM NAND FLASH: SSD 128G RAM: 16G
Latency 1μs
Buffer 64MB
Switching capacity 22.4T (bidirection) 25.6T (bidirection)
Forwarding capacity 5.6Bpps
AC-input voltage 100V-240V AC; 50/60Hz
DC-input voltage 240V DC
Power module slot 2
Fan tray slot 6
Air flow direction Port Panel and Fan Panel Side Exhaust Airflow
Static power consumption Single power: 232W / Dual power: 247W Single power: 258W / Dual power: 272W
Typical power consumption (full cables, 50% load) Single power: 320W / Dual power: 331W Single power: 344W / Dual power: 350W
Typical power consumption (full transceivers, 100% load) Single power: 907W / Dual power: 909W Single power: 980W / Dual power: 939W
MTBF (years) 67.7 45.07
MTTR (hour) 0.5
Operating temperature 0ºC～40ºC
Storage temperature -40ºC～70ºC
Operating humidity 5%～95%
