English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
Specifications
Brand Name :
H-LIN
Model Number :
HG8010H
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
5 Piece/Pieces
Price :
negotiable
Payment Terms :
Western Union, T/T
Supply Ability :
20000 Piece/Pieces per Month
Delivery Time :
Within 3-5 business days after got the payment
Packaging Details :
standard export package
Port :
One fiber port+One RJ45 Port
LAN interface: :
10/100/1000Mbps
Fiber port :
1 EPON interface, SC single-mode/single-fiber,
Fiber interface :
SC/PC
Wavelength :
Tx 1310nm, Rx 1490nm
Operation Temperature :
-5-+55℃
Description

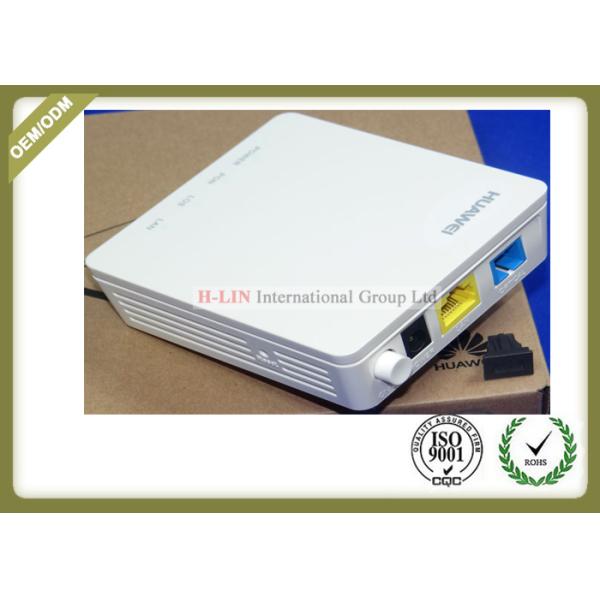

Huawei EPON ONU HG8010H

Introduction

The Echo Life HG8010H is an indoor optical network terminal (ONT) in FTTH solution. By using the EPON technology, ultra-broadband access is provided for home and SOHO users. The HG8010H provides one GE Ethernet port. The HG8010H features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

  • Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
  • Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.
  • Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
  • High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
  • IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.

Characteristics

  • Plug and play: Configurations are automatically delivered by the Network Management System so on-site commissioning is not required
  • Remote diagnosis: POTS ports support loop line tests and call simulation tests, implementing remote fault locating. Supports remote batch upgrades, and up to 2,000 devices can be upgraded each hour
  • Link monitoring: IEEE 802.1ag-based Ethernet OAM that implements end-to-end (E2E) link detection and network isolation
  • Energy wise: SOC chips feature high-integration capabilities. Each chip integrates the PON, voice, gateway, and LSW modules, with 25 percent power savings

Specifiaction

Technical items Descriptions

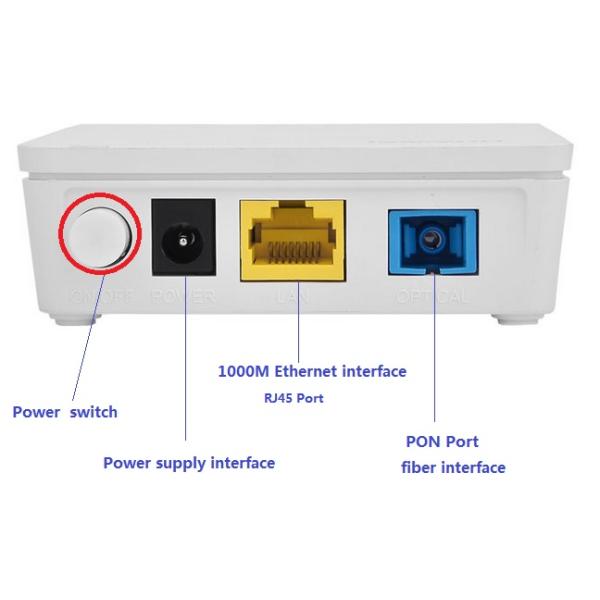

Fiber port 1 EPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-28dBm (1490nm)
WLAN IEEE802.11b/g/n,300Mbps, a built-in antenna
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput Throughput can reach 900Mbps or more
DC power 12V 1A, external AC-DC power adapter
Button Reset, power
Power ≤8W
Operation Working temperature: -5-+55℃ working humidity:10-90%(non-condensation)
Storage Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)
Dimension 130*105*30mm(length*width*height)
Net weight ≤0.2Kg

English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring

Applications

Data services

Voice services

Video services

Monitoring service

FTTH / FTTB / FTTO / FTTP

Package

Here is package box dimension of 1 port EPON ONU for your reference.

40PCS for one carton. Huawei original package.

Show

English Version EPON ONU Single Lan Port SC Single - Mode Link Monitoring
