1/2/4 core FRP Indoor GJXFH FTTH Fiber Optic Cable


Product Description

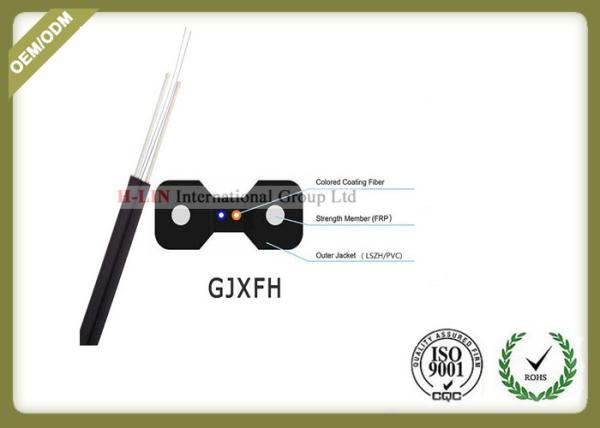

GJXFH FTTH Indoor Drop Cable uses butterfly flat structure, whose optical fiber unit is positioned in the centre. Two parallel Fiber Reinforce Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning protection and anti-electromagnetic interference. FTTH cables are ideal for indoor cabling, end users directly cabling, and access network.

Features

• Good waterproof preformance
• Low smoke, zero halogen and flame retardant sheath
• Smaller diameter, simple structure, light weight, and high practicability
• FRP strength member ensures anti-electromagnetic and crush resistance
• Special low-bend-sensitivity fiber provides high bandwidth data transmission
• Novel flute design, easily strip and splice, simplify installation and maintenance

Specification

Application:

Access network

Local area network (LAN)

Used end users directly cabling

Fiber optic communication system

FTTH (fiber to the home) indoor cabling and distribution

Ideal Using of Butterfly Flat Indoor FTTH Drop Cable

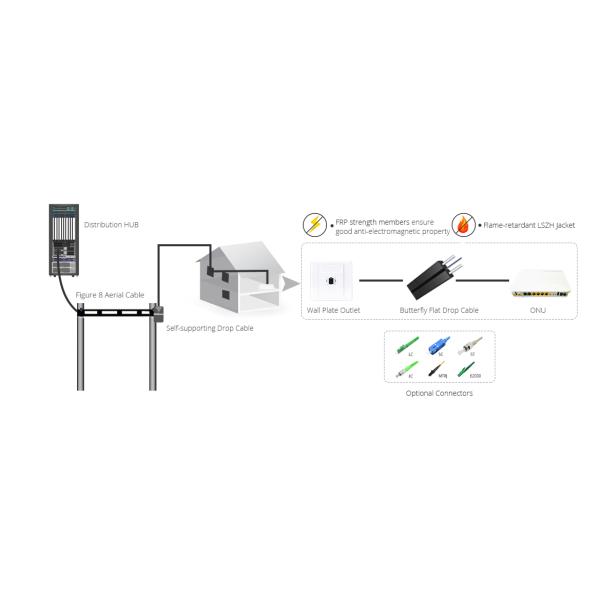

Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's

very suitable for indoor cabling, end users directly cabling, and access network.

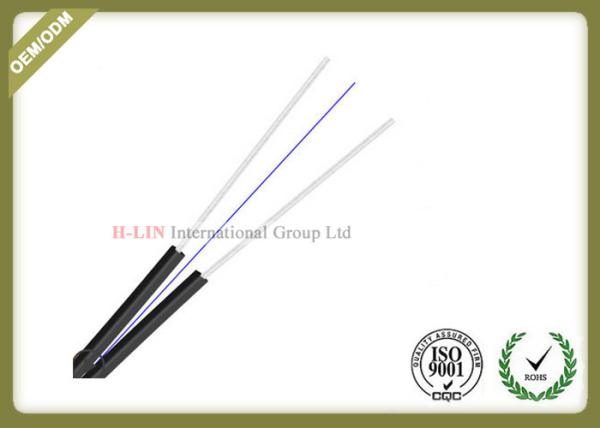

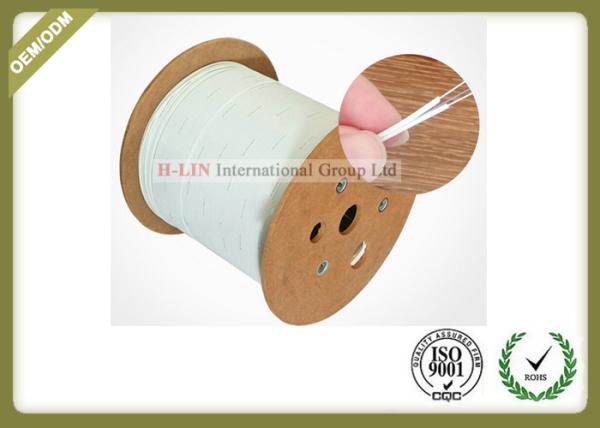

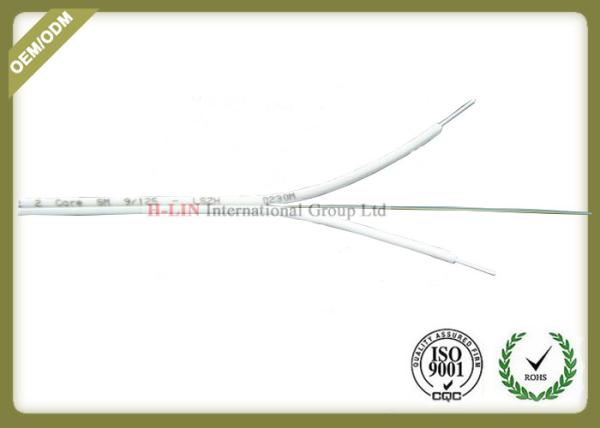

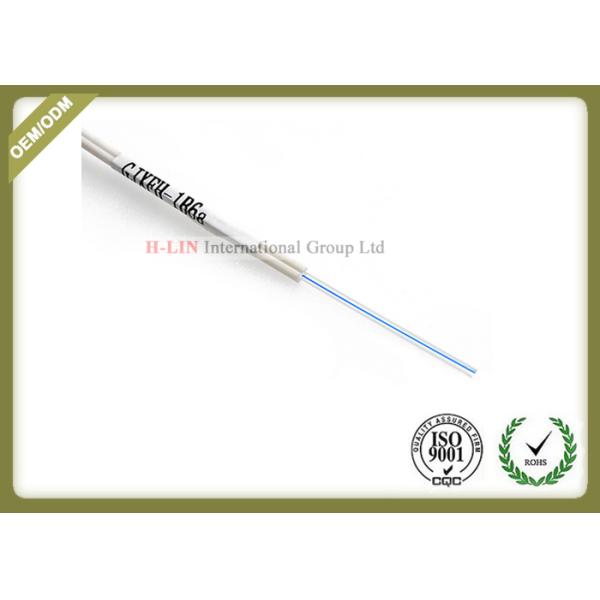

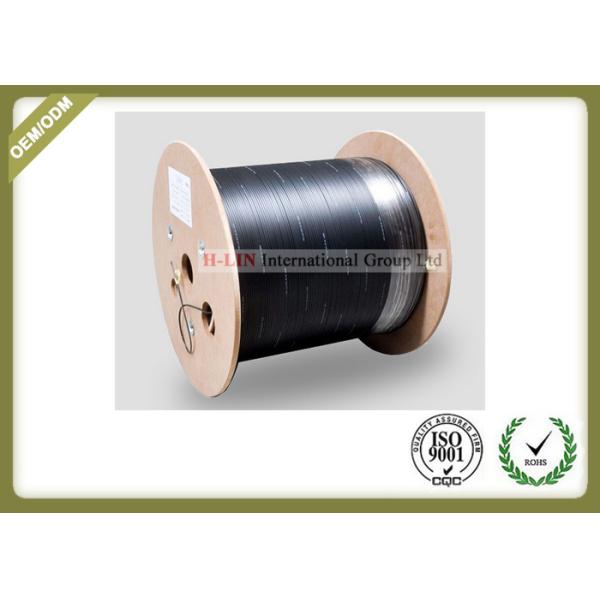

Product show
