Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Specifications
Brand Name :
H-Lin
Model Number :
FC Blade
Certification :
CE/ROHS/IOS9001
Place of Origin :
Shenzhen China
MOQ :
1 Piece
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 Piece/Pieces per Week
Delivery Time :
1-3 days after payment
Packaging Details :
By carton
Applicable mode :
FC-6S or all famous brands of Fushion Splice
Material :
Tungsten Carbide
Durability(dB) :
0.1Typical Change, 1000 Times
cleavering edge :
<0.5 degree
position :
12/16 positions
use life :
>2500 fibers
Description

Fiber Cleaver Blade for Single mode fiber optic cleaver FC-6S or all famous brands of Fushion Splice

Precision Optical Fiber Cleaver Cutting Blade

Product description

Fiber cleaver blade characterizes have a high precision of cutting and positioning, smooth cutting face, cutting angle precise and good wear resistance with long service life.

Advantages

  1. Good wear resistance with a long lifetime.
  2. High precision in cutting with an all-round mirror surface.
  3. Applicable Fiber: Apply to a diameter of 0.08 ~ 0.125mm ordinary single mode or multimode fiber quartz series fiber.
  4. Fiber Count: Suitable for single fiber
  5. End face angle: After cutting the fiber end face squareness ≤ 1
  6. Cleaving length: minimum cleave length 10mm.
  7. Working environment: 0 ~ 40 °C, 90% RH (40 °C no condensation)

Specification

FIBER CLEAVER BLADE DESCRIPTION
Specification 22*4*2mm 22*4*3mm
Blade positions 12 and 16
Material Tungsten carbide
Cleaving angle <0.5 degree
Cutting Life >2500 fibers/position
Applicable FUJIKURA ,FURUKAWA,SUMITOMO and so on
Original Made in china

Photo Rolated positions Application Brand Application Type
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S 12 Sumitomo FC-6S FCP-22 FCP-25 FC-6M
Ericsson EPC-P22 series
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S 16 FUJIKURA CT-20 ,CT-30,CT-05
llsintech Cl01,Cl03
Inno VF78,VF18,VF15,VF15H
Jilong KL-260,KL-280,KL-300
DVP DVP105 106 107

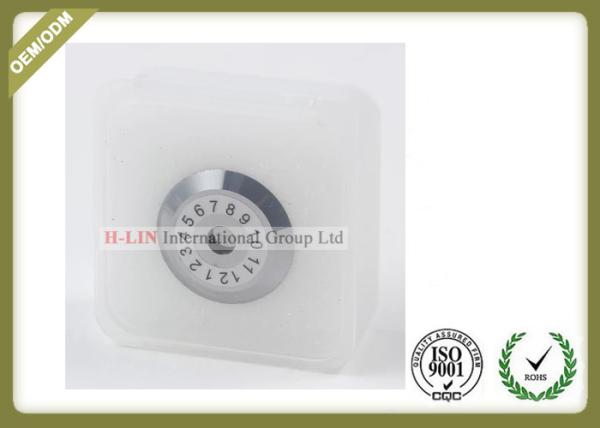

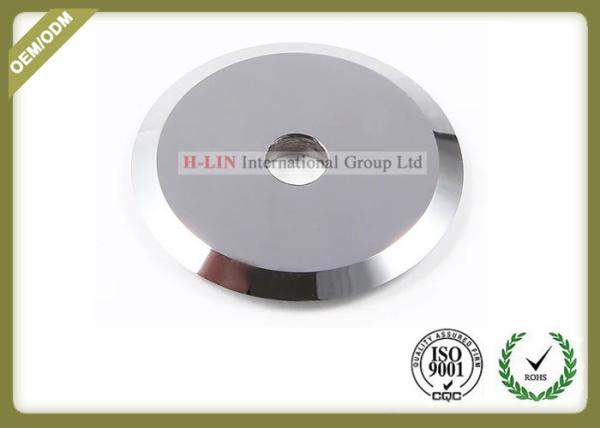

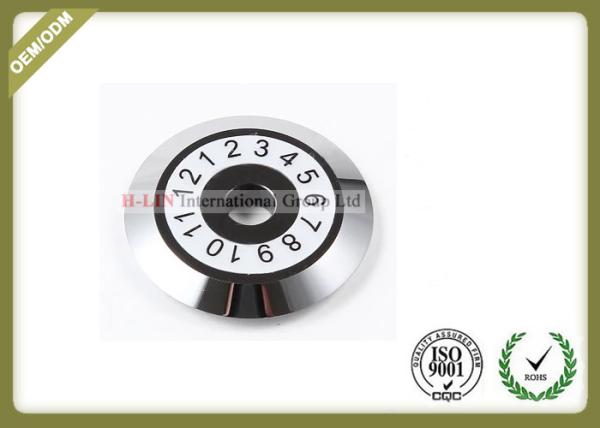

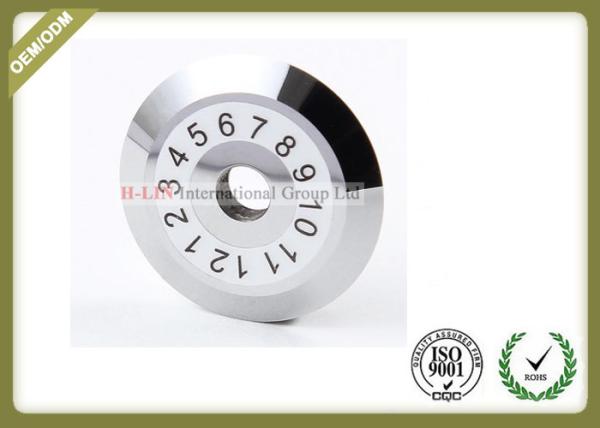

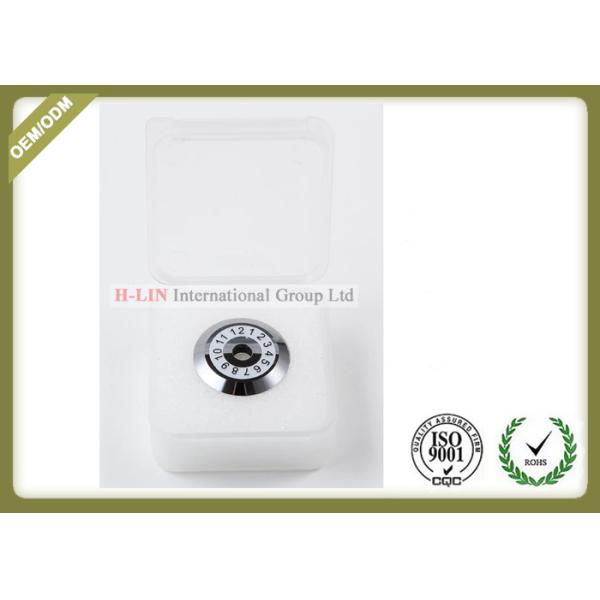

Product show

Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
Tungsten Carbide Fiber Cleaver Blade For Single Mode Fiber Optic Cleaver FC - 6S
