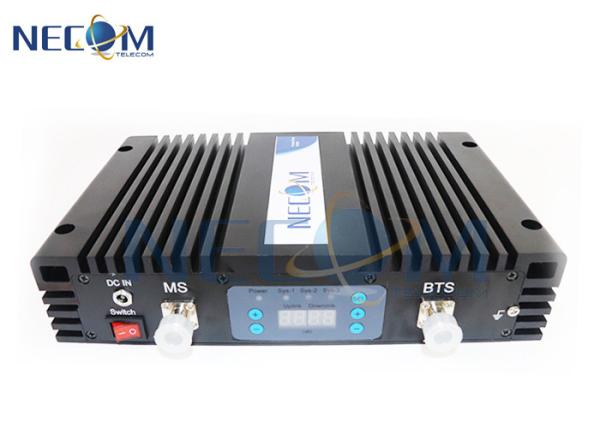

4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
Specifications
Brand Name :
vodasafe
Model Number :
TE2635B02
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
5000pcs Per Month
Delivery Time :
3-5Working Days After Payment
Packaging Details :
Neutral Packing Carton Box
Power Supply :
AC110-220V±10%/45-55Hz;
Size :
148mm×106mm×33mm;
Reliability :
To the GB6993-86 standard;
Electromagnetic :
To the ETS300 694-4 standard;
Function :
b) Export power LED denote;
Description

35Dbm High Power 4G2600MHz Mobile Phone Signal Booster/4G Cellphone Signal Booster

Brief Description:

2600MHz Pico-Repeater is intended to strengthen the signal of 2600MHz mobile phone in the buildings. Ideal for use in areas where the 2600MHz signal is weak to cause Call dropout or Cant connection. The device improves the voice calls and data VOICE GPRS and EDGE (depends of the signal operator).

Features:

  1. High system gains.
  2. Full duplex and double-end design, external power supply, and convenient installation.
  3. ALC technology with auto-steady function adopted.
  4. Provide power indication and uplink and downlink indications.
  5. With the amplified linear power, the inter-modulation an spuriousness are suppressed effectively.
  6. The reliability conforms to GB6993-86 standards.
  7. The electromagnetic compatibility conforms to ETS300 609-4 standards.

Applicable place:

It can be applied in Building rooms there have weak signal of mobile.

Specification:

Frequency Range Uplink:2500-2570MHz; Downlink:2620-2690MHz;
Gain (Uplink)Gp≥80dB; (Downlink):Gp≥85dB;
Output Power ≥35dBm;
Pass band ripple ≤4dB
Guard band rejection (BW-60dB) ≤42MHz;
(BW-70dB)≤45MHz;
I/O impedance 50Ω/N Connector;
I/O return loss ≤-10dB;
Noise figure ≤-8dB;
Intermodulation attenuation (Po=13dBm) ≤-40dBm
Transmission ≤0.5μs;
Ambient -10℃-50℃;
Power Supply AC110-220V±10%/45-55Hz;
Size 148mm×106mm×33mm;
Reliability To the GB6993-86 standard;
Electromagnetic To the ETS300 694-4 standard;
Function a) Power supply LED denote;
b) Export power LED denote;

Order Information:

Pico-Repeater 3G2600MHz TE-2635B:Output power 35dBm/Gain 85dB Cover area 3500-4000 square meters;

Package contents:

1 pcs booster

1 set power supply

1 pcs user manual

1 set installation screws

4G 2600MHz Cell Phone Signal Booster 148mm*106mm*33mm Size Double End Design
