High-Speed 200-450rpm Shade Net Making Machine with 135-260 Working Width and E3-E18 Gauge for Protective Mesh Production
High-Speed 200-450rpm Shade Net Making Machine with 135-260 Working Width and E3-E18 Gauge for Protective Mesh Production
Specifications
Brand Name :
Chenye
Model Number :
SRCA
Certification :
ISO ,CE, TUV
Place of Origin :
China , Jiangsu
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
25 sets per month
Delivery Time :
60 days after deposit payment
Packaging Details :
40HQ/Set
Product Type :
Shade net making machine
Color :
Customized
Working Width :
135"-260"
Speed :
200-450rpm
Size :
2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Warranty :
1Year(lifelong Technical Support)
Description

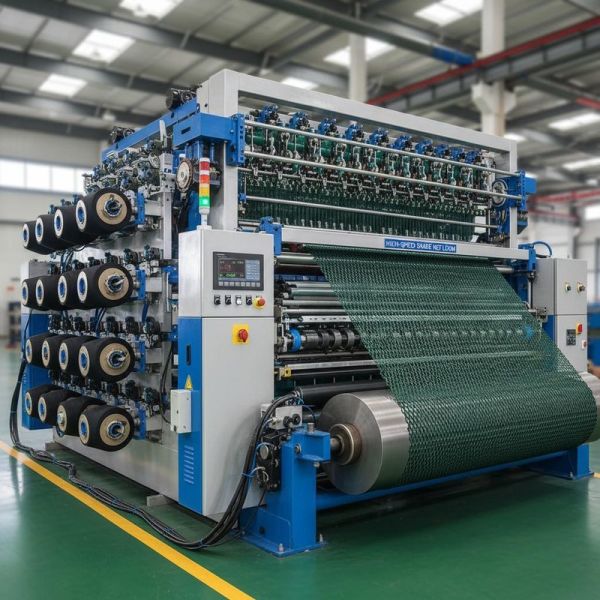

Sunshade Net Machine - Protective Mesh Making Machine
Our industrial-grade sunshade net machine is designed to deliver superior performance and reliability for your protective mesh manufacturing operations.
Product Specifications
Number of bars: 2~8
Working Width: 135", 150", 170", 220", 240", 260"
Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
Needle Type: Block latch needle, individual latch needle, or Compound needle
Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size (L×W×H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300×2200×2700 4700 3 200-530
SRCA-150 4900×2200×2700 5000 3 200-530
SRCA-180 6100×2200×2700 7500 5.5 200-530
SRCA-220 7300×2200×2700 9000 5.5 200-530
SRCA-260 8200×2200×2700 11000 7.5 200-480
SRCA-340 10300×2200×2700 14000 11 200-450
Applications & Purpose
Shade net machines produce specialized netting material used in agricultural settings, nurseries, gardens, and outdoor areas to create controlled environments with optimal growing conditions.
Primary Benefits:
  • Sunlight Protection: Reduces sunlight intensity to prevent overheating and create favorable microclimates
  • Temperature Control: Maintains lower temperatures by filtering sunlight for plant, animal, and human comfort
  • Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust in sensitive areas
Product Images
High-Speed 200-450rpm Shade Net Making Machine with 135 High-Speed 200-450rpm Shade Net Making Machine with 135 High-Speed 200-450rpm Shade Net Making Machine with 135 High-Speed 200-450rpm Shade Net Making Machine with 135
Technical Support & Services
We provide comprehensive technical support and service for our Shading Net Making Machine to ensure optimal performance and longevity.
Our Services Include:
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
Our team of qualified technicians provides on-site service for complex repairs and maintenance, ensuring your machine operates at peak efficiency.
High-Speed 200-450rpm Shade Net Making Machine with 135 High-Speed 200-450rpm Shade Net Making Machine with 135
Packing & Shipping
We ensure complete safety and security of all goods during packing and shipping processes.
High-Speed 200-450rpm Shade Net Making Machine with 135 High-Speed 200-450rpm Shade Net Making Machine with 135
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters for machinery, raw materials, and finished products storage.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials with adjustable machine settings.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. We provide comprehensive training sessions and manuals covering setup, operation, and maintenance procedures.
