High Efficiency Warp Knitting Machine for Safety Net Manufacturing
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
Specifications
MOQ :
1 set
Delivery Time :
60 days after deposit payment
Warranty :
1Year(lifelong Technical Support)
Speed :
200-450rpm
Packaging Details :
40HQ/Set
Certification :
ISO ,CE, TUV
Brand Name :
Chenye
Place of Origin :
China , Jiangsu
Model Number :
SRCA
Payment Terms :
L/C,T/T,Western Union
Color :
Customized
Size :
2m/2.5m/3.4m/3.8m/4.5m/5.5m/6m/6.6m/8.6m/9.6m/11m
Price :
Negotiation
Working Width :
135"-260"
Supply Ability :
25 sets per month
Product Type :
Shade net making machine
Description
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
Product Overview
Advanced sunshade net manufacturing machine featuring cutting-edge weaving technology for superior sun protection net production.
Key Specifications:
  • Number of bars: 2~8
  • Working Width: 135", 150", 170", 220", 240", 260"
  • Take-up manner: 2 rollers with friction drive, center shaft drive, separately-standing
  • Feature: Equipped with oiled eccentric gearing and negative yarn let-off system
  • Needle Type: Block latch needle, individual latch needle, or Compound needle
  • Gauge: E3, E6, E7, E8, E9, E12, E14, E16, E18
Machine Parameters
Type Size (L*W*H) Weight (Kg) Power (KW) Speed (rpm)
SRCA-135 4300*2200*2700 4700 3 200-530
SRCA-150 4900*2200*2700 5000 3 200-530
SRCA-180 6100*2200*2700 7500 5.5 200-530
SRCA-220 7300*2200*2700 9000 5.5 200-530
SRCA-260 8200*2200*2700 11000 7.5 200-480
SRCA-340 10300*2200*2700 14000 11 200-450


Safety nets are widely used in construction, industrial operations, transportation, and other environments where protective mesh products are required.

Because safety net products may be used in demanding working environments, manufacturers need to maintain consistent production standards. The mesh structure, yarn selection, and production process are all important factors.


Warp knitting machines provide an efficient method for manufacturing different types of safety and protective mesh fabrics. Depending on the required product, manufacturers can select suitable machine models and configurations.The production of safety netting may involve different specifications. Customers can determine the appropriate equipment based on the required width, mesh structure, yarn type, and final application.


Changzhou Chengye Warp Knitting Machinery Co., Ltd. offers warp knitting machinery suitable for different net production fields. The company provides equipment solutions based on customer production requirements.Stable machine operation is important for manufacturers producing large quantities of mesh products. Continuous production capability can help improve manufacturing efficiency and support regular order requirements.


With suitable warp knitting equipment, manufacturers can expand their production capabilities and develop different types of protective and safety mesh products for various markets.


Applications & Purpose
Shade net machines produce specialized netting used in agriculture, horticulture, and construction to provide protection from harsh weather, regulate temperature, and shield crops from excessive sunlight.
Primary Purposes:
  • Sunlight Protection: Reduces sunlight intensity to prevent overheating of crops, plants, or animals
  • Temperature Control: Filters sunlight to maintain lower temperatures and create favorable growth conditions
  • Wind and Dust Barrier: Acts as windbreak to reduce wind speed and prevent dust infiltration
Product Images

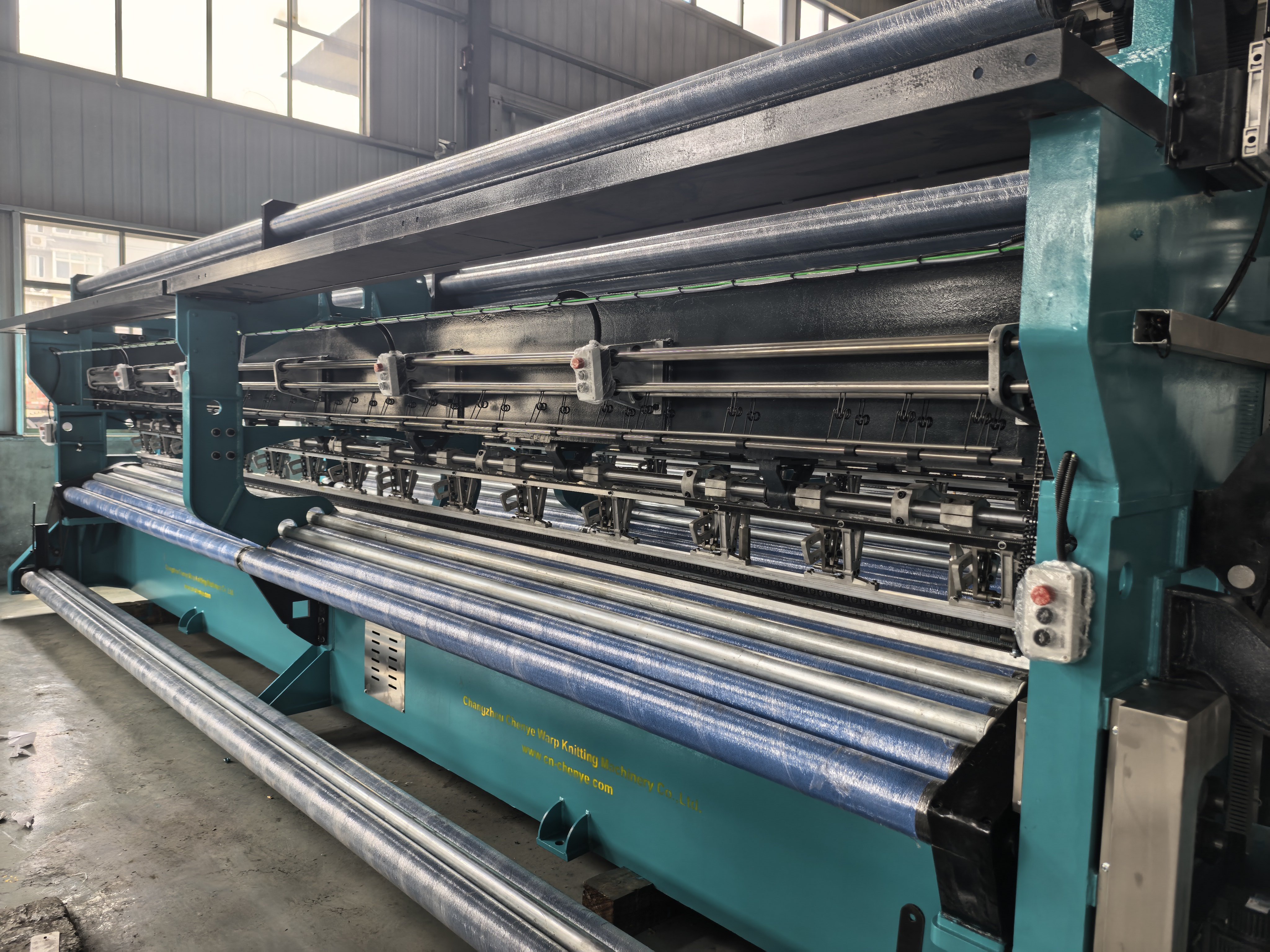

High Efficiency Warp Knitting Machine for Safety Net Manufacturing
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
Technical Support & Services
Our comprehensive technical support and service program ensures optimal performance of your Shading Net Making Machine.
Services Include:
  • Information and troubleshooting assistance
  • Software and hardware upgrades
  • Installation and maintenance services
  • Technical advice and guidance
  • Parts and accessories replacements
We provide on-site service for complex repairs and maintenance by our team of highly qualified technicians.
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
Packing & Shipping
We ensure complete safety and security of goods during packing and shipping processes.
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
High Efficiency Warp Knitting Machine for Safety Net Manufacturing
Frequently Asked Questions
What is the output of shading net making machine?
Depending on machine working width and net technical specifications, output is approximately 500-1000KG/24h.
How much space needed to set up a shading net production line?
A small-scale production line requires 100-200 square meters, while larger operations may need several thousand square meters. Space requirements include machine footprint plus storage for raw materials and finished products.
How many kinds of shading net can be produced by rascheal warp knitting machine?
Four types of shade nets can be produced: mono+mono yarn shading net, mono+flat yarn shading net, mono+flat yarn shade net, and Al+pet yarn shade net.
Are the machines customizable for different net specifications?
Yes, modern shading net making machines are customizable to produce nets of various sizes, mesh configurations, and materials. Machine settings can be adjusted to meet specific shading requirements.
What types of shading nets material can be made with these machines?
Primary material is HDPE, with some shading nets using AL and PET materials.
Are there any special skills required to operate the machine?
Operating requires training for optimal performance. Manufacturers provide training sessions and manuals covering setup, operation, and maintenance procedures.
