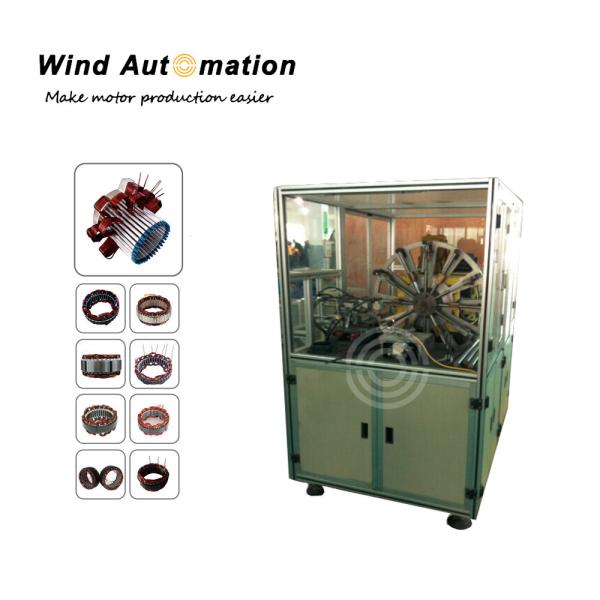

Alternator Wave Shape Coil Winder
Alternator Wave Shape Coil Winder
This wave winder is controlled by control computer(brand Advantech) instead of PLC. Separate winding for odd layer and even layer winding. The wire feeding length can be set accordingly. The locking mechanism of winding form is a quick disassemble device, easy to operate. The screen can monitor all operation state of wave winding machine.
(1)Features
Winding cycle is 46-60s/pc
Automatically wire feeding
Easy loading and unloading
Fast tooling change design within 20 min.
Precision performance of winding
Fully programmable operation
Parameter adjustable according to different stators
Applied as a stand-alone machine or integrated into a production line
(2)Machine configuration
Item Brand
Guideway ABBA/TCP
Sensor Sick
Servo motor MITSUBISHI, 6sets
Electrical components Schneider
Pneumatic Components Festo
LCD Advantech

(3) Operation process
Tread wire
Adjust winding form as per required winding parameters.
Press start button, machine will automatically do winding process.
Unload winding form and transfer it to coil inserting station.

Alternator Wave Shape Coil Winder
Alternator Wave Shape Coil Winder
Alternator Wave Shape Coil Winder
