100 Sets/Year Rotor Aluminum Rotor Casting Motor Die Casting Machine for Motor Manufacturing
100 Sets/Year Rotor Aluminum Rotor Casting Motor Die Casting Machine for Motor Manufacturing
Specifications
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

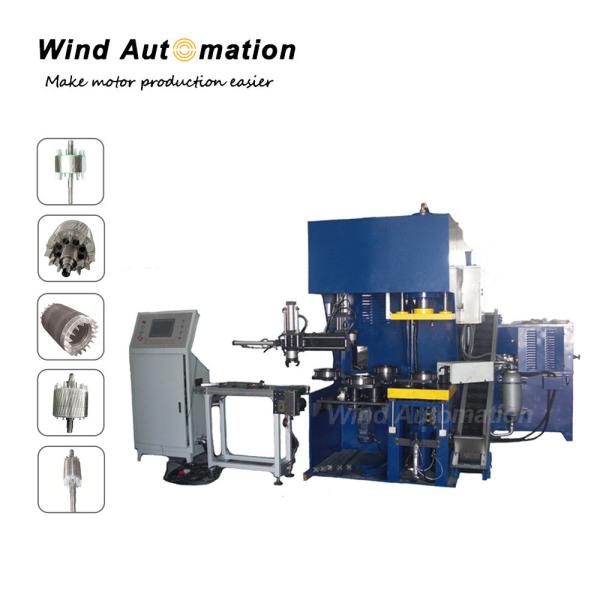

Rotor Aluminum Rotor Casting Motor Die Casting Machine
100 Sets/Year Rotor Aluminum Rotor Casting Motor Die Casting Machine for Motor Manufacturing
The rotor die-casting machine is used for aluminum armature rotor.

Specification
Rotor OD: 40-80mm
Core length: 16-100mm
Max casting weight: 0.6kgs
Rotor core: Without opening slot
Working pressure of upper cylinder: 40T
Working pressure of lower cylinder: 12T
Max working pressure of liquid aluminum: 22.6MPa
Oil tank capacity: 425L
Max aluminum filling capacity in our present standard machine: Diameter 75mm x Height 60mm. It is about 500 grams
Running speed of pressing and shooting piston: Slow shooting 190mm/s, fast shooting 600mm/s
Hydraulic system: 40L variable piston pump with 7.5KW motor
Working efficiency: 8s
Power: 380v/50Hz, 8.5KW
Weight: 2000kgs
Dimensions: 1800(L) x 1800(W) x 2350(H)mm
