Specifications
Model NO. :
WIND-150-IF
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

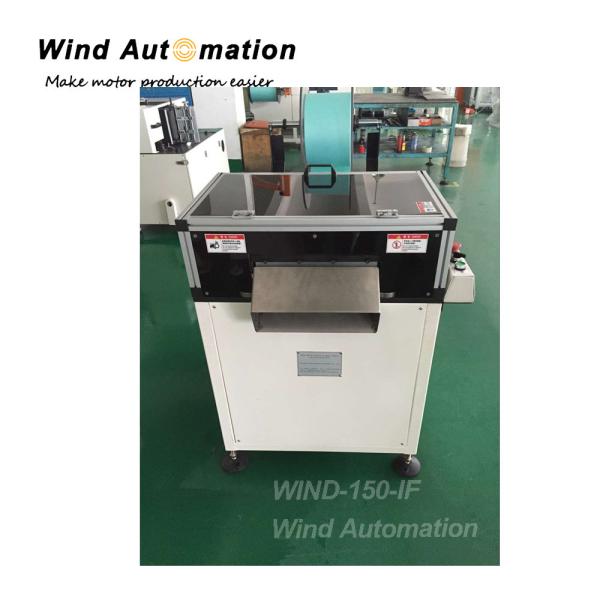

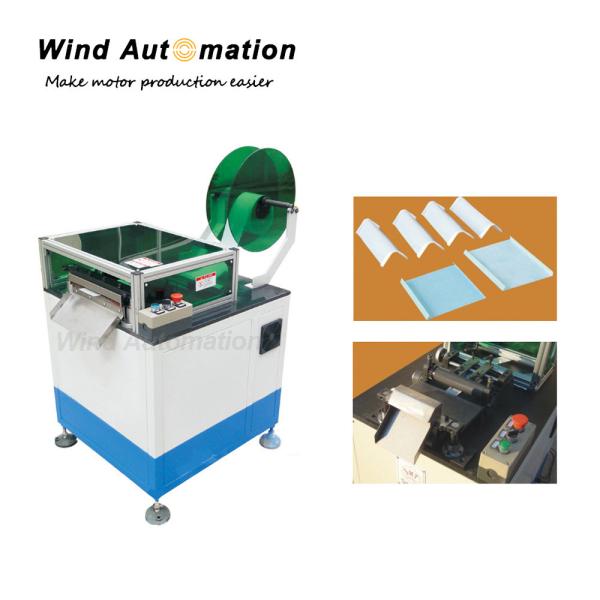

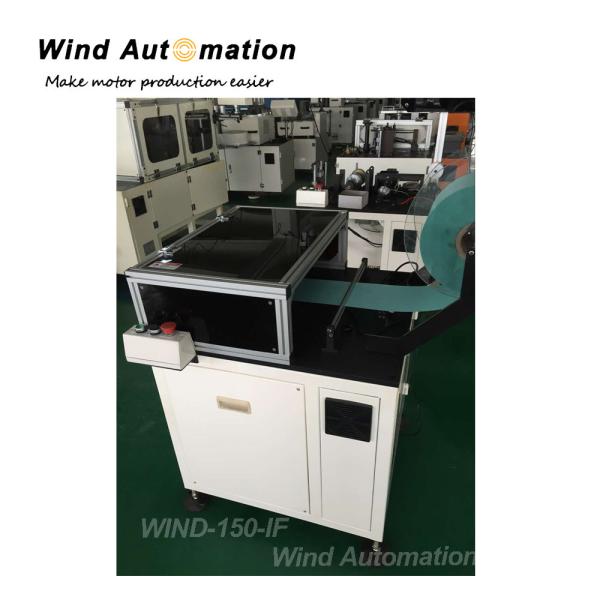

Slot Paper Forming and Cutting Machine
Slot Paper Forming and Cutting Machine

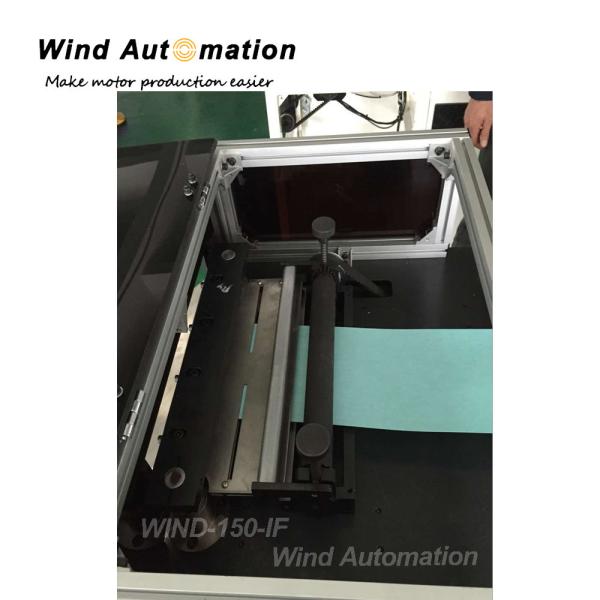

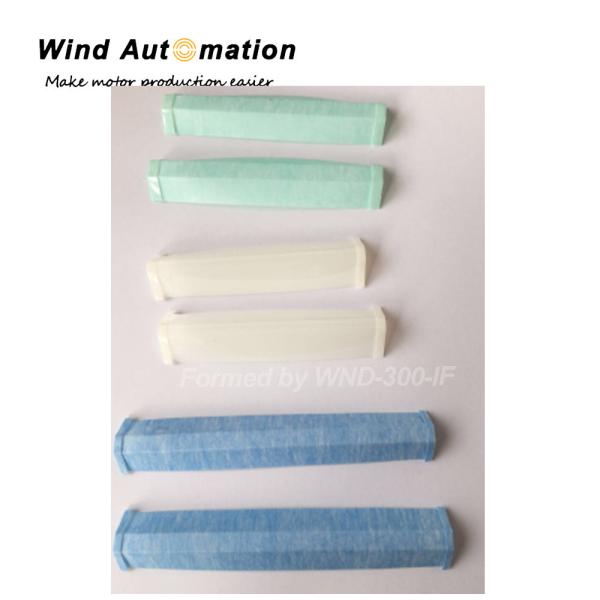

This machine is used to form and cut insulation paper for stator slot inserting.

The feeding length is related to slot size total area length,cutting width is usually stator stack length+ edge folded length *4 , for a motor frame size below 132, the edge folded usually is around 3.5mm.For example, if stack length is 80mm, the cutting width is around 80+14 = 94mm.

(1) Specification
Feeding length 10~100mm
Cutting width Max 150mm
Cutting thickness Max 0.35mm
Cuff height 2.5mm~4mm
Power supply 220V 50/60HZ
Total power 0.5KW
Weight 150KG
Dimension 500x900x1200mm

(2) Feature
Simple and easy to operate
Wide applied for bending and cutting different slot cell size no need tooling change
No regular maintenance needed, only polish or replace cutter after 2 year to 5 years

(3) Application
This machine is suitable for a low volume but a high mix of production or manual production motor manufacturer.
