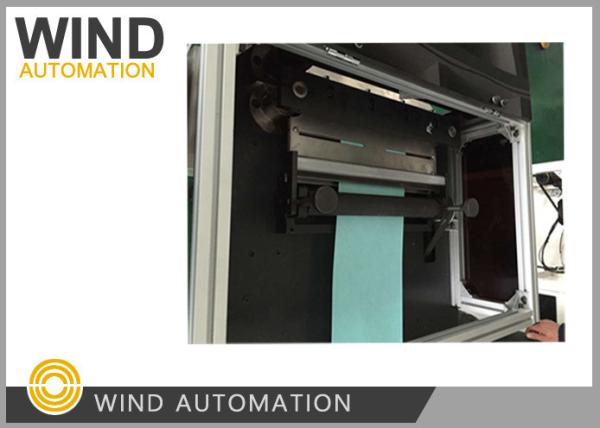

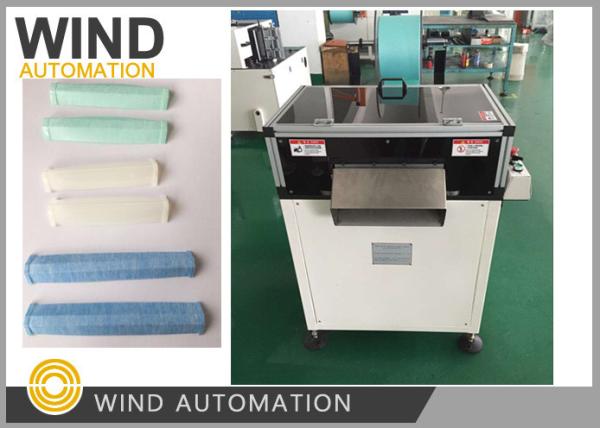

Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner
Specifications
Model NO. :
WIND-150-IF
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description
Insulation Paper Forming and Cutting Machine For Motor Stator
Insulation Paper Forming and Cutting Machine for Motor Stator Slot Liner

All the parameters, edge folding size, paper feeding length&width are adjustable. Standard machine does not have heating function, while customized one has.

(1) Specification
Feeding length: adjustable
Cutting width <150mm
Cutting thickness < 0.35mm
Edge folded width 2.5mm~4mm
Weight: around 150KGS
Dimension: 500*900*1200mm

(2) Feature
Simple and easy to operate
Wide applied for bending and cutting different slot cell size no need tooling change
No regular maintenance needed, only polish or replace cutter after 2 year to 5 years

(3) Application
This machine is suitable for a low volume but a high mix of production or manual production motor manufacturer.
