Specifications
Model NO. :
WIND-150-IF
Specification :
150KG
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Package Size :
1200.00cm * 1000.00cm * 1860.00cm
Package Gross Weight :
500.000kg
Description
Cuffing Creasing Cutting Machine Slot Cell Forming
Insulation Forming Stator Slot Insulation

Electrical Motor Insulation Polyester Film Cuffing Creasing Cutting Machine Slot Cell Forming

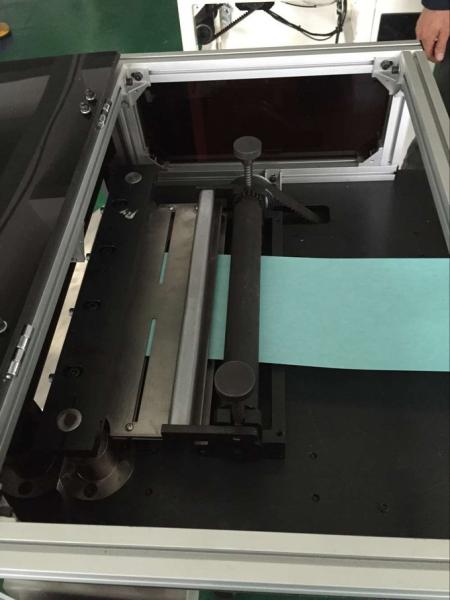

This kinds of paper forming machine is designed for stator to do manual paper inserting. Fold edge, paper feeding length and width is adjustable.

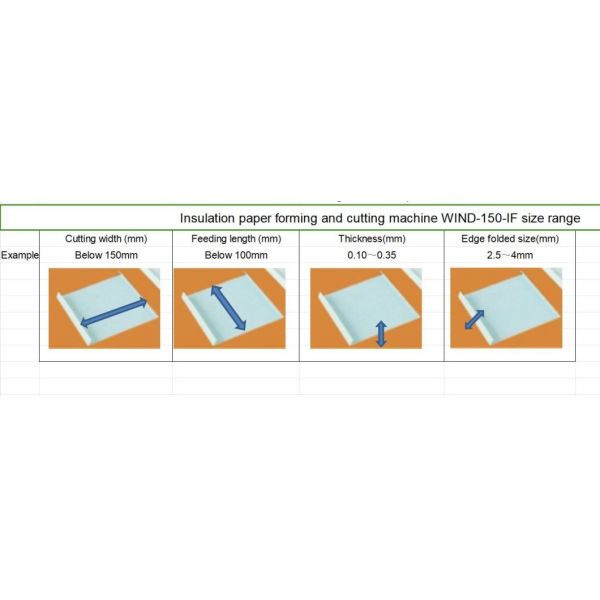

(1) Specification
Feeding length 10mm-100mm
Insulation thickness <0.35mm
Fold edge width 2.5~4mm
Cutting width: < 150mm
Input: 220V/50Hz
Dimension 500mm × 900mm × 1200mm
Weight: ≈ 150kg

(2) Application
This machine is suitable for manual motor manufacturer and manufacurer who has varies of motor models.

(3) Ask and Answer

1. if the machine only cut the insulation or can also bend the insulations?
--- Yes, it can cut and also bend the insulations, the bend we call it edge folded
2. What are the maximum and minimum width of the insulation?
--- Width of the insulation Min 10mm, Max 150mm, other type can be customized
3. What is the thickness of the insulations?
--- 0.05mm to 0.35mm
4. What kind of material can bend and cut?
--- DMD,PMP and other Polyester film
Electrical Motor Insulation Polyester Film Cuffing Creasing Cutting Machine Slot Cell Forming

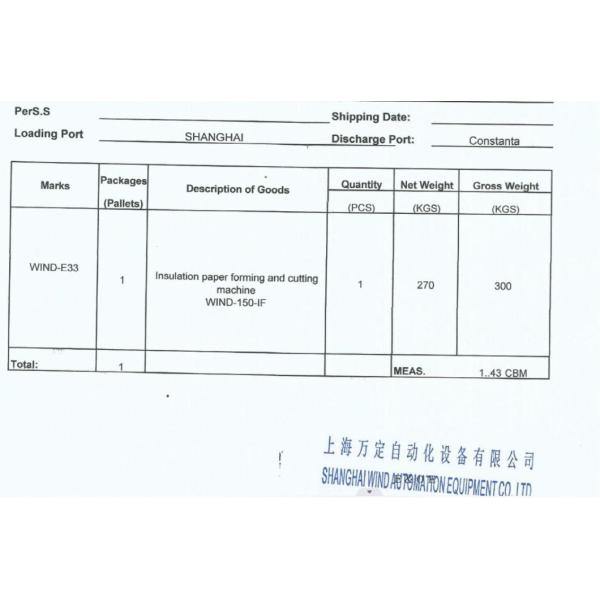

Packing List details

Electrical Motor Insulation Polyester Film Cuffing Creasing Cutting Machine Slot Cell Forming

Question and Answer

In the first stage, we are interested in Insulation paper forming and cutting machine
WIND-150-IF.
Could you send me the characteristics of the machine?
It is not clear if the machine only cut the insulation or can also bend the insulations.
--- Yes, it can cut and also bend the insulations, the bend we call it edge folded,
What are the maximum and minimum width of the insulation?
--- Width of the insulation Min 10mm, Max 150mm
What is the thickness of the insulations?
--- 0.05mm to 0.35mm
What kind of material can bend and cut?
--- DMD,PMP and other
We produce brushless permanent magnet motors.
--- Got it, please show us the armature and stator photo and how many piece you produce per day
