Specifications
Model NO. :
WIND-PCW-F2
Specification :
Middle Size
Trademark :
Wind Automation
Origin :
China
HS Code :
8479811000
Production Capacity :
100 Sets/Year
Description

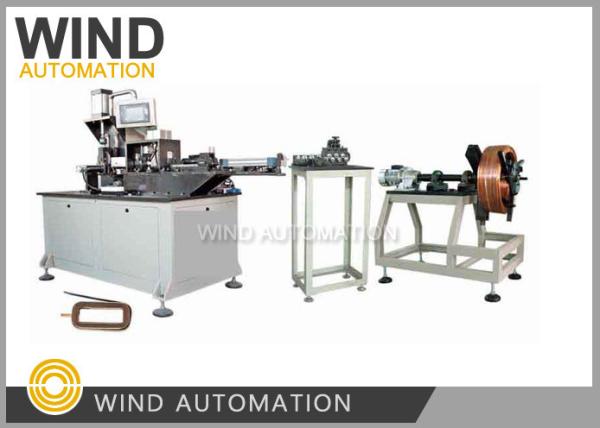

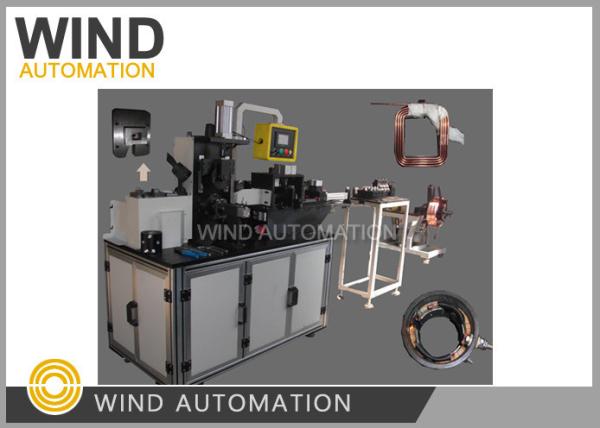

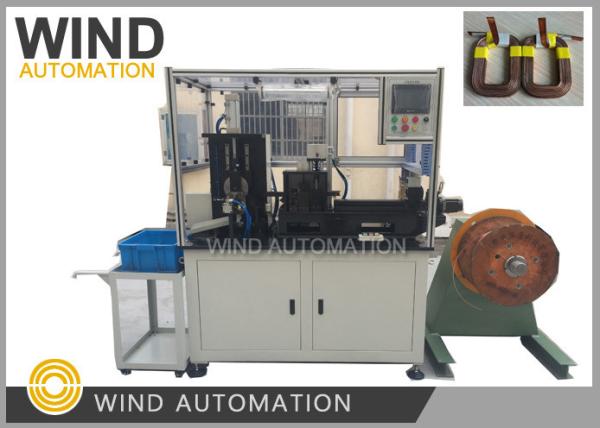

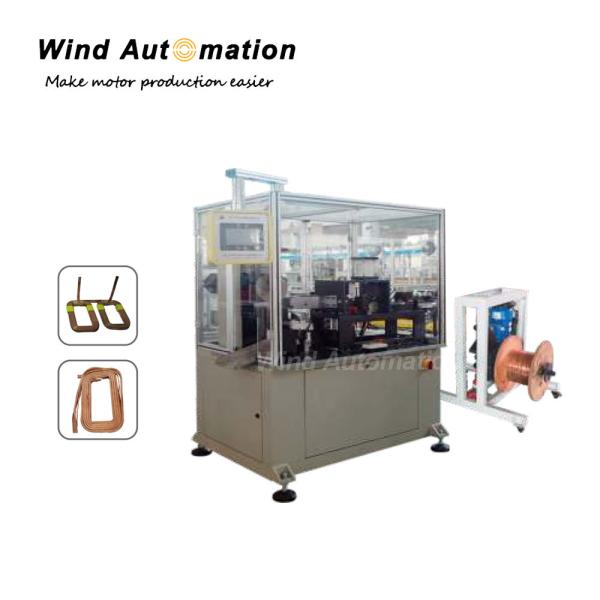

Starter Stator Magnetic Field Coil Winding Starting Motor Copper Foil Flat Loop Wire Winding Copper Strip WindingStarter Stator Magnetic Field Coil Winding Featuring Middle Size Copper Foil Flat Loop
Starting motor's stator magnetic field coil winding, also called flat copper wire winding, copper strip winding, rectangular coil winding,Many of our customers are BOSCH parts product OEM suppliers from different countries.

(1)Specifications
Wire OD Less than 20mm
Winding speed 0~80r/min
Rotation diameter 160mm
Power Supply AC 220V ±10% 50Hz
Air Pressure Supply 0.5~0.7Mpa
Machine Power 3 kW
Dimension 1500x800x1800mm

(2) Application
Suitable for various kinds of starter motor with rectangular wire coil.

(3) Features
Auto winding, straightening, bending and twisting
Precise pneumatic drive control of the coil winding
Short re-adjusting time
PLC controlled working operations
Completely automated winding process of the magnetic field coil
LCD display of all technical parameters and current status of the winding process
This machine can be customized accordingly
Self-diagnostic troubleshooting system
No skilled operator required
