SOURCE | ||
Light Source | 600W Color White LED | |
Color Temperature | 6600K | |
Average LED Life | 20,000 Hour | |
POWER | ||
Input Voltage | 100-240V AC, 50/60Hz | |
Power Consumption | 750W | |
OPTICAL SYSTEM | ||

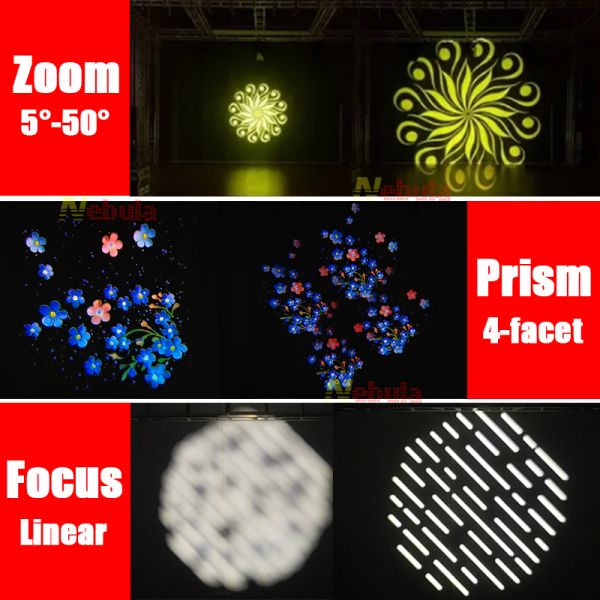

Zoom | 5° - 50° linear electronic | |
Prism(Selectable) | 4-facet circular rotating prism | |
Focus | Motorized linear focus | |
Strobe | 0-25Hz variable speed, pulse and random strobe | |
Dimmer | 0-100% variable linear dimming curves | |

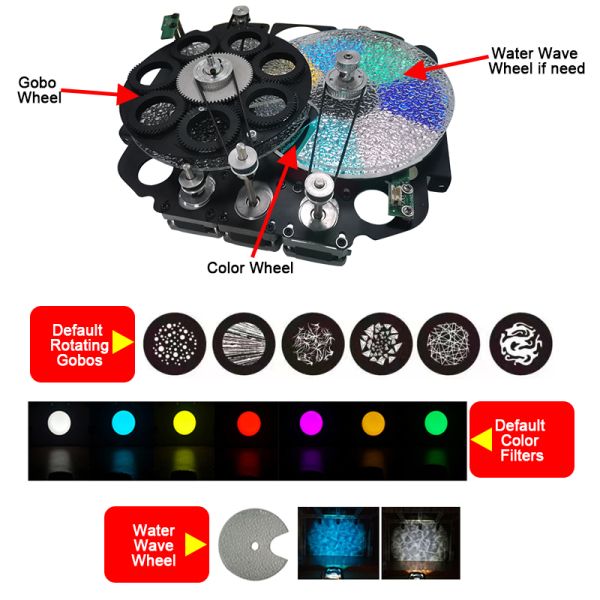

COLOR WHEEL | ||
Colors | 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect | |
GOBO WHEEL | ||
Rotating Gobos | 1 rotation gobo wheel with 6 interchangeable glass gobos plus open or 7 interchangeable glass gobos Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect | |
Gobo Size | Glass gobo outside Φ28mm, insideΦ22mm | |
CONTROL & CONNECTION | ||
DMX Channel | 10CH | |
Control Mode | DMX, Auto 1, Auto 2, Sound, Scene | |
LCD | Full Color 180° Reversible LCD | |
Power In/Out | 3 pin waterproof Male/Female power cable | |
DMX In/ Out | 3-pin waterproof Male/Female signal cable | |
PHYSICAL | ||
IP Rate | IP65 | |
Body Finish | Aluminum alloy shell with high strength, surface blasting oxidation treatment, black, white and gray optional or customized color is available | |
Cooling System | The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatly | |
WEIGHT & DIMENSION | ||
Net Weight | 26.05kg | |
Gross Weight | 28.50kg | |
Dimension | 262×329×681mm | |
Package | (1in1 Carton): 800×495×390mm (1in1 flightcase): 740×520×420mm | |
