SOURCE | ||
Light Source | 600W Color White LED | |
Color Temperature | 6600K | |
Average LED Life | 20,000 Hour | |
POWER | ||
Input Voltage | 100-240V AC, 50/60Hz | |
Power Consumption | 750W | |
OPTICAL SYSTEM | ||

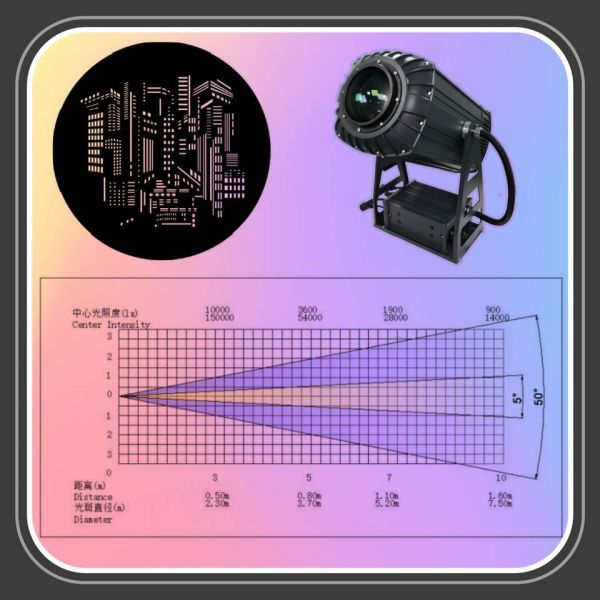

Zoom | 5° - 50° linear electronic | |
Prism | 4-facet circular rotating prism(selectable) | |
Frost | 1 frost filter diffusing effect(selectable) | |
Strobe | 0-25Hz variable speed, pulse and random strobe | |
Dimmer | 0-100% variable linear dimming curves | |
COLOR WHEEL | ||

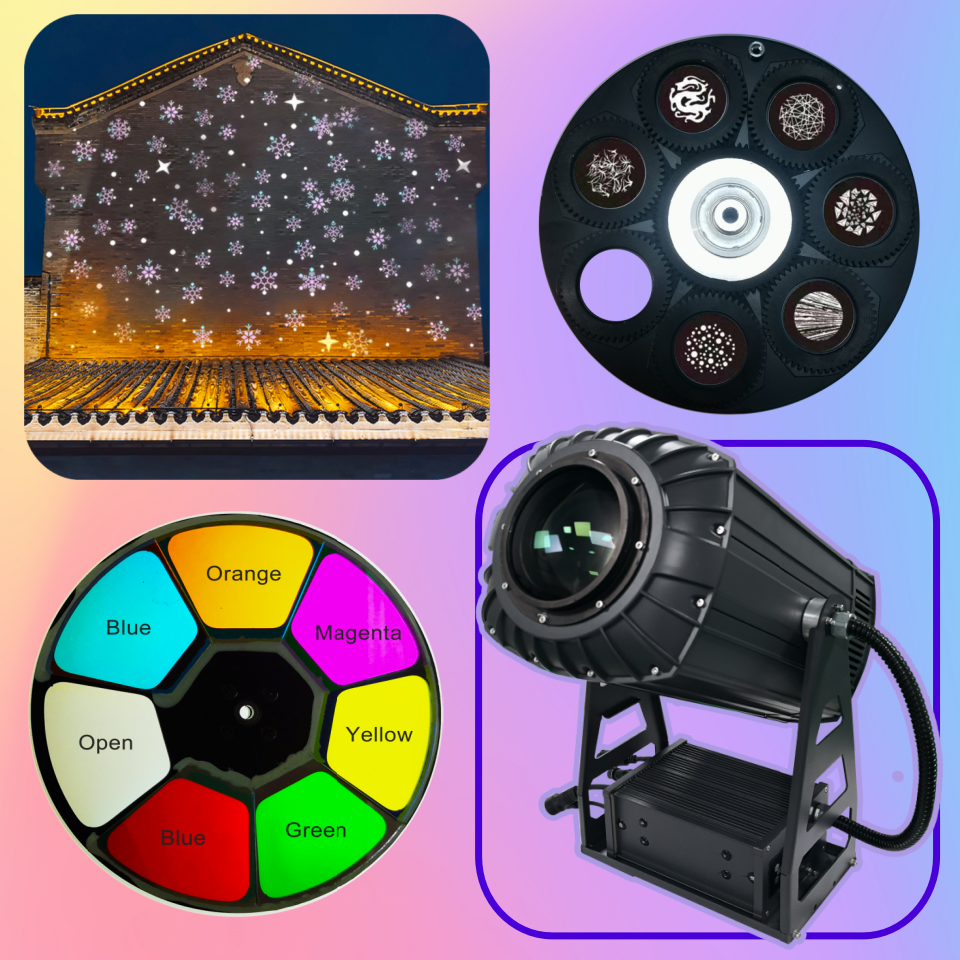

Colors | 6 Dichoric Colors plus open, Index / Bi-directional rotating rainbow effect | |
GOBO WHEEL | ||
Rotating Gobos | 1 rotation gobo wheels with 6 interchangeable glass gobos plus open / Seven interchangeable gobos (Selectable) Interchangeable rotating / Shake / Bi-directional variable-speed rotation effect | |
CONTROL & CONNECTION | ||
DMX Channel | 10CH | |
Control Mode | DMX, Auto, Sound, Program, Manual | |
LCD | Full Color 180° Reversible LCD | |
Power In/Out | 3 pin waterproof power cable | |
DMX In/ Out | 3 pin waterproof signal cable | |
PHYSICAL | ||
IP Rate | IP65 | |
Body Finish | Aluminum alloy shell with high strength, surface blasting oxidation treatment, black and gray optional or customized color is available | |
Cooling System | The heat pipe and advanced cooling system make the chip cool all the time, which maximize the chip illuminance and delay its life greatly | |
WEIGHT & DIMENSION | ||
Net Weight | 26.05kg | |
Gross Weight | 28.50kg | |

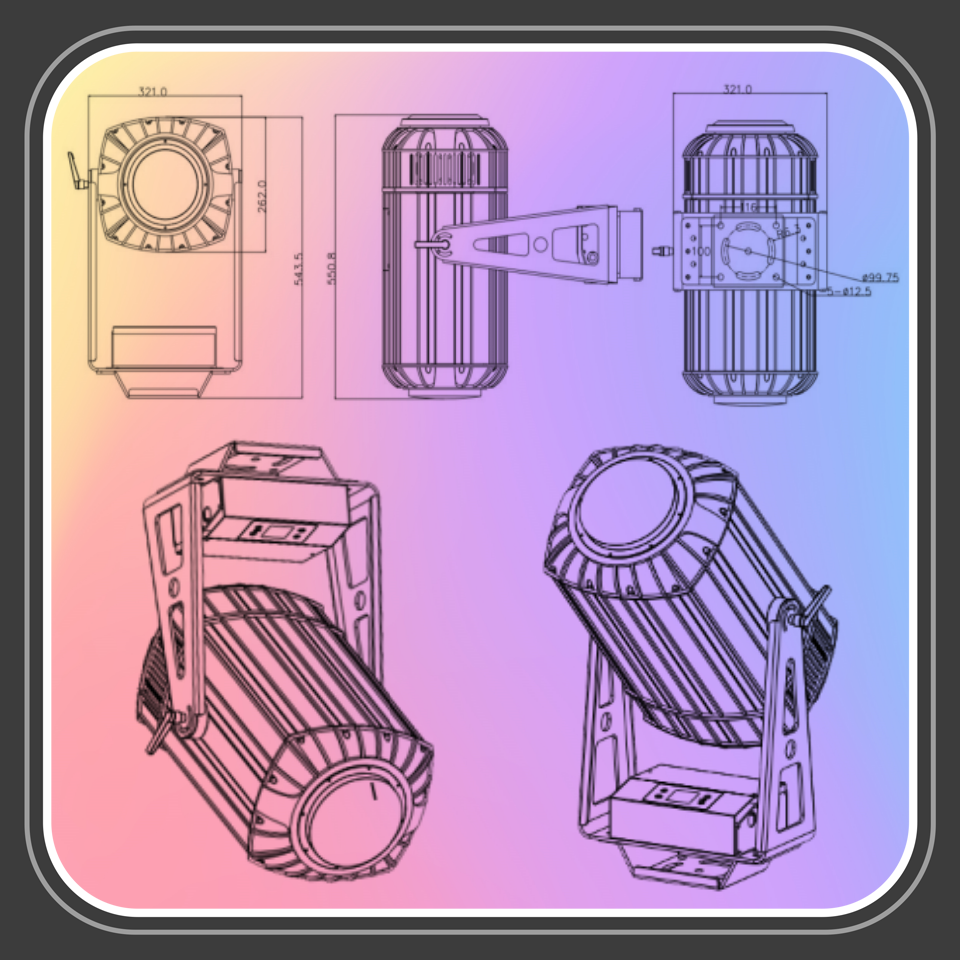

Dimension | 262×321×544mm | |
Package(Carton) | 800×495×390mm | |
