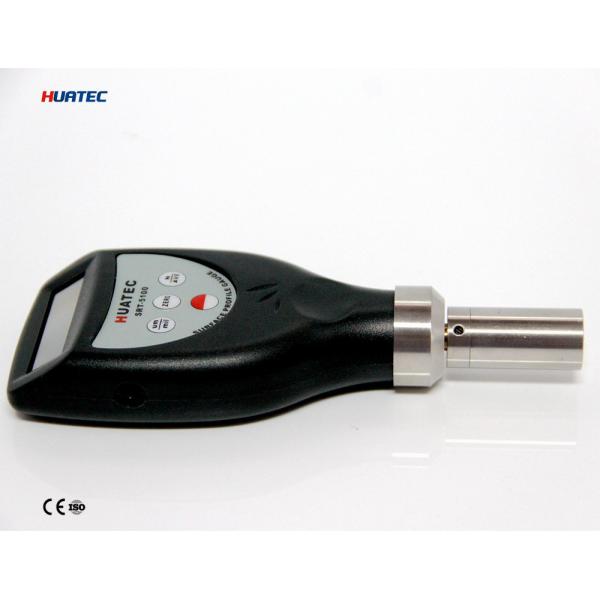

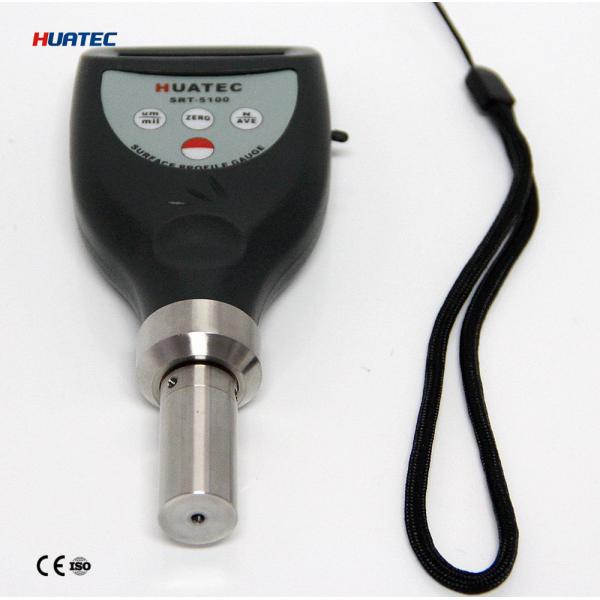

SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge
SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge
SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge
SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge
Specifications
Brand Name :
HUATEC
Model Number :
SRT-5100
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD450/set - USD507/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
10-15 working days after receipt of your payment
Packaging Details :
Carton packing box
Range :
0 μm to 800 μm (0 mils to 30 mils)
Accuracy :
±5% or ±5 μm, (whichever is the greater)
Resolution :
1 μm (0.1 mils)
Measurement speed :
>30 (readings per minute)
PC interface :
RS232C
Description

SRT-5100 Handheld Digital Blast Cleaned Surface Profile Gauge

Detailed Product Description

* This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces.

* It meets the standards of ASTM D 4417-B, IMO MSC.215(82), SANS 5772, US Navy NSI 009-32, US Navy PPI 63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.

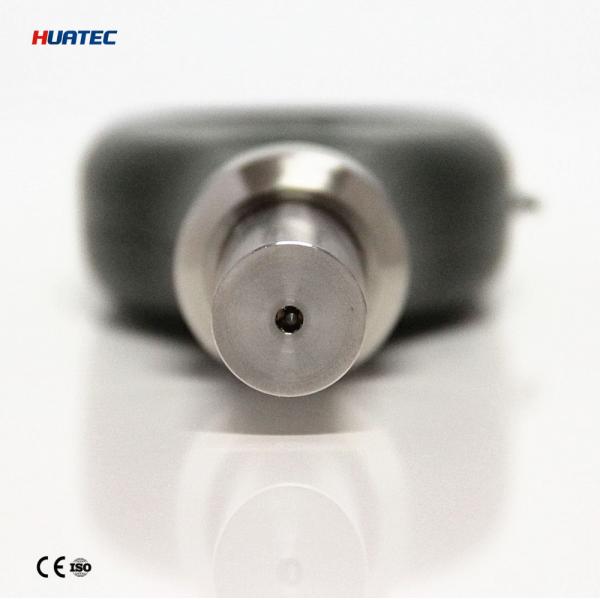

* The tungsten carbide tip will last for up to 20, 000 readings and can then be easily replaced by the user in the field.

* Cost per test is significantly lower than other test methods.

* Used the exclusive Micro -computer LSI circuit and crystal time base to offer high accuracy measurement.

* Can communicate with PC for recording, printing and analyzing by the optional software and cable for RS232 interface. USB adaptor and Bluetooth interface can also be used.

* Automatic power off to conserve power.

* Widely used in field of blast cleaned surface measurement. If the profile is too large the amount of coating required to ensure adequate coverage increases, otherwise there is a danger that the peaks remain uncoated - allowing rust spots to occur. If the profile is too small, there maybe an insufficient key to produce adequate adhesion, leading to premature coating failure . Ensuring the correct surface preparation optimises the performance of the coating and material usage.

SPECIFICATIONS:

echnical parameters:

Item Description
SRT-5100
Measuring Range 0 -800μm
Resolution 1 μm (0.1 mils)
Gauge face diameter 50mm
Accuracy ±5% or ±5 μm
Power 4x1.5v (AAA) battery
Interface RS232/USB, bluetooth

Standard Accessories :

Main unit……………...1pc.

Carrying case…………1 pc.

Operation manual…….1 pc.

Optional accessories:

RS232C cable, USB adaptor, Bluetooth interface
