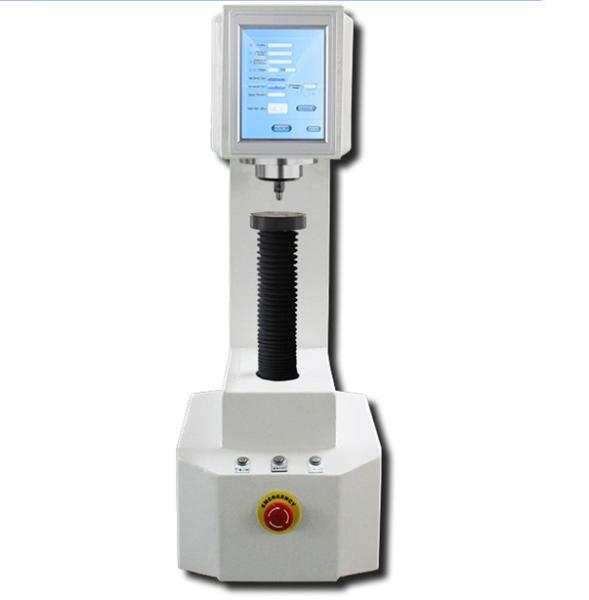

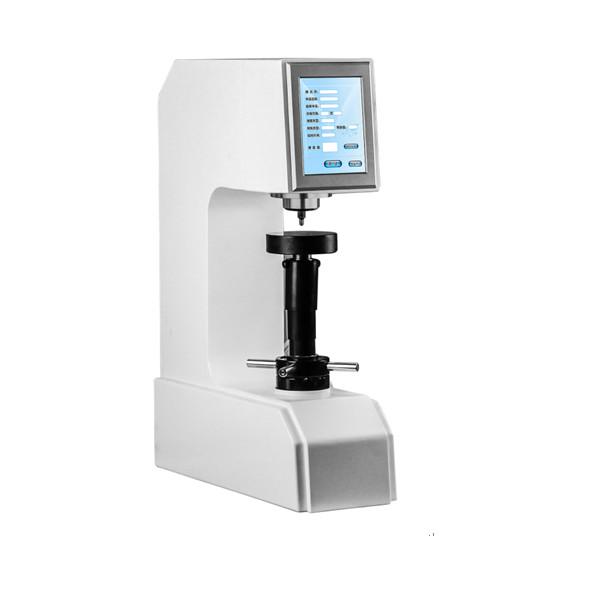

HR-150DX Touch Screen Rockwell Hardness Tester with 15 Scales
HR-150DX Touch Screen Rockwell Hardness Tester with 15 Scales
HR-150DX Touch Screen Rockwell Hardness Tester with 15 Scales
HR-150DX Touch Screen Rockwell Hardness Tester with 15 Scales
Specifications
Brand Name :
HUATEC
Model Number :
HR-150DX
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD3085/set - USD3490/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Exchanging scales :
Rockwell, Superficial Rockwell
Dwell time :
0-60s
Total load of Rockwell :
60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)
Total load of Superficial Rockwell :
15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N)
Load value error :
Less than 0.5%
Hardness measurement accuracy :
0.5HR
Max Height of Sample :
220mm
Distance of Indenter to outer wall :
200mm
Description

HR-150DX Advanced Touch Screen 15 types Rockwell scales Rockwell Rockwell Hardness Tester

Product Features:

1. Modern and beautiful appearance, stable structure

2. Touch screen interface, easy operation, multi-language versions

3. Available for using after staring up, unnecessary for installing weights and debugging

4. Electric loading, closed-loop control

5. All Rockwell scales, total 15 types

6. Automatically apply the initial load and main load

7. Automatic correction of high, medium and low hardness numbers

8. Automatic correction of load, with the force accuracy increased by a numerical level

9. More information of sample and testing

10. Data stored in USB flash disk, EXCEL format, easy for compiling and processing

11. Adopt the modular design, easy maintenance

12. Larger sample space, huge sample stage

Application Fields:

Industrial production, Inspection of product quality on processing technology. Ferrous and nonferrous metals, Hardened steel, tempered steel, annealed steel, hardened steel, sheet of various thicknesses, carbide materials, powder metallurgy materials, hardness and thermal spray coating.

Sheet metal, thin-walled pipe, hardened steel, and small parts of hardness.

Widely used in machinery manufacturing, metallurgy plants, universities, laboratories, etc.

Technical Parameters:

Product model

HR-150DX
Scales Converted to Rockwell, Brinell, Vickers
Dwell time 0-60s
Initial load of Rockwell 10kgf (98N)
Total load of Rockwell 60kgf (588.4N) 100kgf (980.7N) 150kgf (1471N)
Initial load of Superficial Rockwell 3kgf (29.4N)
Total load of Superficial Rockwell 15kgf (147.1N) 30kgf (294.2N) 45kgf (441.3N)
Load value error

0.5%
Hardness testing range

HRA: 20-96 HRB: 20-100 HRC: 20-70 HRD: 40-77 HRE: 70-100 HRF: 60-100 HRG: 30-94

HRH: 80-100HRK: 40-100HRL: 50-115HRM: 50-115 HRR: 50-115
Testing rage of Superficial Rockwell

HR15N: 70-94; HR30N: 42-86; HR45N: 20-77;

HR15T: 67-93; HR30T: 29-82; HR45T: 10-72
Hardness measurement accuracy

0.5HR
Executive standard

GB/T230.1 GB/T230.2 national standard JJG112 verification regulation
Max Height of Sample 220mm
Distance of Indenter to outer wall 200mm
Hardness reading LCD display
Data output USB flash disk
Power supply

AC220V,50/60HZ
Net weight About 70kg

Standard Accessories:

Name Quantity Name Quantity
Diamond Rockwell indenter 1 Ball indenter with the diameter of 1.5875 mm 1

Hardness block

(HRB, HRC high, HRC low value)

 3 Large, medium, V-type testing table 1 for each
Power line 1 Dustproof plastic housing 1
USB flash disk 1 Operating Instruction, Product Qualification Certificate 1 for each
