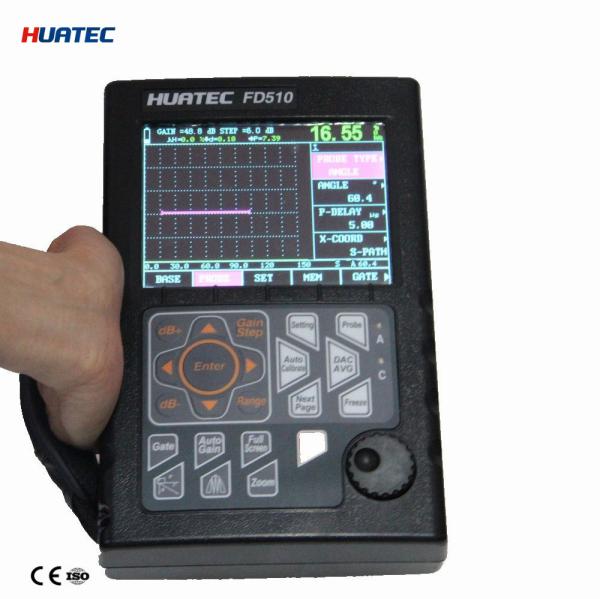

FD510 Portable Ultrasonic Welding Flaw Inspection Test Machine

Main faetures:

★ Automated calibration,Automated gain, 0-110dB gain

★ DAC,AVG,TCG,B scan,AWS

★ High-speed capture and very low noise

★ Solid metal housing,water / oil proof,dust proof

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

• Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
• Automated switch three staff gauge ((Depth d,level p,distance s)；
• Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；
• Convenient to make and use DAC TCG and AVG to evaluate the echo, the curve can be modified and compensated
• 6dB DAC functions;
• 100 independence setup, any criterion can be input freely, we can work in the scene without test block；
• Big memory of 500 A graph
• Automated gain and gain scan;
• Peak Hold and Peak Memory；
• B scan;
• AWS D1.1
• Automated make video of test process and play; use upan,the length of video is unlimited.
• Powerful pc software and reports can be export to excel;
• Li battery, continue working time up to 9 hours;
• The embeded software can be online updated；
• Other assistant function
  • Display freeze;
  • Automated echo degree;
  • Angles and K-value;
  • Lock and unlock function of system parameters;
  • Electronic clock calendar ;
  • Two gates setting and alarm indication;
  • Gate and DAC alarm;

Standard Delivery:

Main unit

2.5MHZ-ф20 straight probe

4MHZ-8x9mm, 60degree angle probe

4A/9Vpower adapter

Probe connection cable (BNC to BNC)

Probe connection cable (BNC to Lemo 00)

Instruction manual

Carrying case

RS232-USB converter

Additional Accessories:

Data managing software

Data managing cables RS232

Straight probe (5MHZ-ф20)

Straight probe (2.5MHZ-ф20)

Straight probe (2.25MHZ-ф20)

Straight probe (1MHZ-ф20)

Angle probe (4MHZ-45degree, 8*9mm)

Angle probe (4MHZ-60degree, 8*9mm)

Angle probe (4MHZ-70degree, 8*9mm)

Angle probe (4MHZ-80degree, 8*9mm)

Angle probe (2MHZ-45degree, 8*9mm)

Angle probe (2MHZ-60degree, 8*9mm)

Angle probe (2MHZ-70degree, 8*9mm)

Angle probe (2MHZ-80degree, 8*9mm)

Probe T/R (5MHz-ф20mm, focus 15mm)

Probe T/R (2.5MHz-ф20mm, focus 15mm)

Connection cable to probe (BNC-BNC)

Connection cable to probe (BNC-Lemo 00)

Connection cable to probe (BNC-Lemo 01)

Connection cable to probe (Lemo 00-Lemo 01)

Lithium ion battery

Power adapter (4A/9V)

Power Cable

Leather case

Test block V1

Test block V2

Test block DAC, ASME etc.
