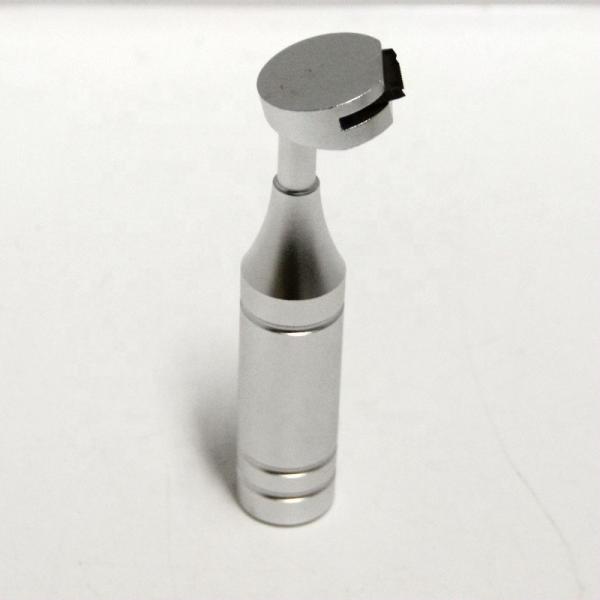

ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm
ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm
ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm
ISO 2409 Cross Hatch Cutter for Paint Adhesion Testing 1mm 2mm 3mm
Specifications
Brand Name :
HUATEC
Model Number :
Cross Hatch Cutter
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD65-USD90/SET
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10 Sets/YEAR
Delivery Time :
1 month after receipt of your payment
Packaging Details :
ABS box+Outer carton packaging
standard :
ISO 2409-1974,GB/T9286-98
multi-blade cutters :
1mm,2mm,and 3mm
Description

Cross Hatch Cutter one/two/three Knifes type Organic Paints Grid Scratching Adhesion

cross hatch cutter is designed and manufactured in accordance with ISO 2409-1974.It is also complies with GB/T9286-98 standard. The instrument is mainly used for the measurement of the grid scratching adhesion of the organic paints. It is not only applicable to the laboratories, but also good to the construction sites under various conditions. There are three specifications of multi-blade cutters(1mm,2mm,and 3mm),which can be chosed for different test conditions. The multi-blade cutter with 1mm distance is suitable to the test pieces with the paint film less than 60um.The multi-blade cutter with 2mm distance is suitable to the test pieces with the paint film of 60-100um.

No standard knife edge Knife Knife distance
H-5125 DIN/ISO 6 1 1mm(0.04inch)
H-5126 DIN/ISO 6 1 2mm(0.08inch)
H-5128 DIN/ISO 6 1 3mm (0.12ch)
H-5129 ASTM 11 1 1mm (0.04ch)
H-5130 ASTM 11 1

1mm (0.04ch) & 2mm two knifes changeable
H-5131 ASTM 11 1

1mm (0.04ch)&2mm&3mm three knifes changeable
H-5132 DIN/ISO 6 1

1mm(0.04inch)&2mm two knifes changeable
H-5133 DIN/ISO 6 1

1mm(0.04inch)&2mm&3mm three knifes changeable

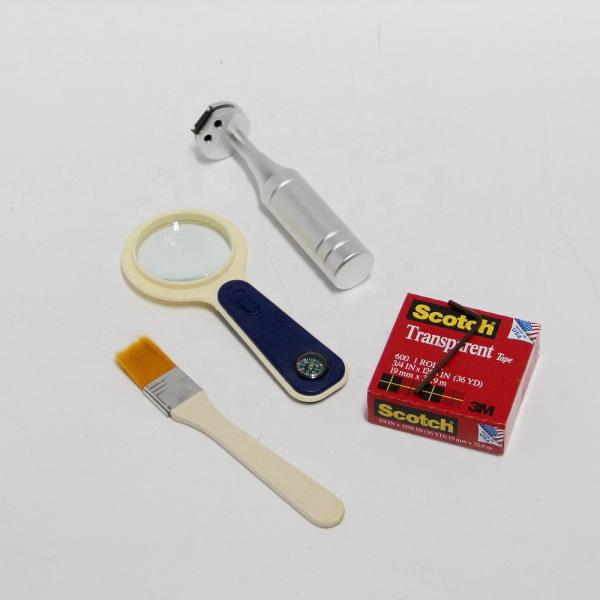

Model lists:

1. The one knife, two knives for general use(1mm and 2mm)

2. The rotary three knives(1mm,2mm,and 3mm)

3. The cylindrical four sides(1mm,2mm)
