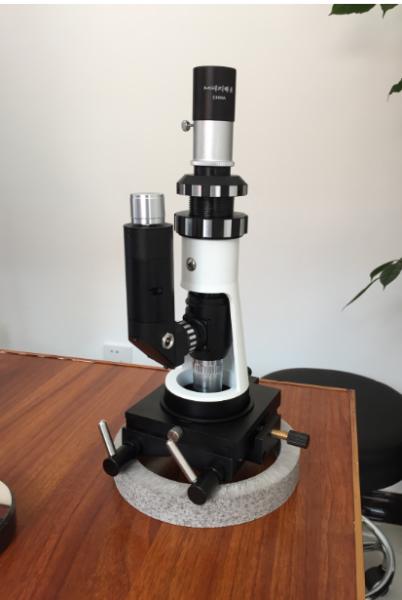

HSC-500 Portable Metallurgical Microscope 100X-500X Magnification
HSC-500 Portable Metallurgical Microscope 100X-500X Magnification
HSC-500 Portable Metallurgical Microscope 100X-500X Magnification
HSC-500 Portable Metallurgical Microscope 100X-500X Magnification
Specifications
Brand Name :
HUATEC
Model Number :
HSC-500
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD1050/set - USD1185/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Eyepiece :
WF10X/ф6
Objective :
10X, 20X,50X
Total Magnification :
100X-500X
Focusing range :
25mm
Mechanical tube length :
160mm
Power supply :
3.6v
Description

HSC-500 Portable Metallurgical Inspection Sample Organization Analysis Microscope

Product Description:

HSC-500 Portable Metallurgical Microscopes has vertical illumination light source.

Applicable to metallographic inspection of various work pieces which is large or unable to make sample.

No need to cut sampling and can directly grinding and polishing, in order to ensure the integrity of the work piece.

This machine can identify different metal and alloy organization structure.

Widely used in Casting quality appraisal, raw material inspection or organization analysis after handling the materials by factory, laboratory.

Main Parameters:

No. Item Specification
1 Eyepiece WF10X/ф6
2 Objective 10X, 20X,50X
3 Total Magnification 100X-500X
4 Focusing range: 25mm
5 Mechanical tube length: 160mm
6 Power supply 3.6v
7 Weight N.W.: 0.75kg G.W.: 0.9kg
8 Dimension Instrument dimension: 230X110X70(mm)

Standard configuration:

No. Item Main Specification Unit Quantity
1 Main unit HSC-500 Set 1
2 Objective 10X, 40X,50X (optional) Piece 1 each
3 Eyepiece 10X Piece 1
4

Illuminator

 Installed on the main body Piece 1
5 Battery charger Piece 1
6 Magnetic base Piece 1
7 C mount adapter Piece 1
8 Instruction manual Piece 1
9 Calibration certificate Piece 1

Optional parts:

Eyepiece: 12.5X

Objective: 50X
