XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range
XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range
XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range
XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range
Specifications
Brand Name :
HUATEC
Model Number :
XXG-2505B
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
KV regulating range :
100-250 (KV)
MA adjustment range :
Less than 5 (MA)
Exposure time :
5.0 minutes
Focus size :
2.0*2.0 (mm)
Ray Angle :
40+5°
Ray filter :
1.0mm(beryllium) +3.0mm(aluminum)
Maximum penetration :
40 (mm)
Description

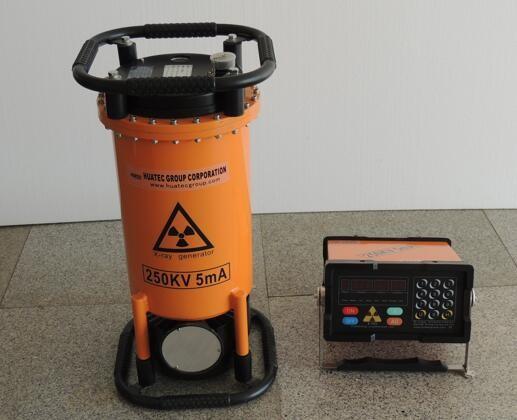

XXG-2505B Lithium Battery Directional Radiation Ceramic X-Ray Tube Flaw Detector

XXG series are ceramic X-ray tube, both can be directional model and Panoramic, it is more durable than the glass tube: shake proof and long working life.

Specification

KV regulating range 100-250 (KV)
Adjusting the step length 1 (KV)
MA adjustment range Less than 5 (MA)
Exposure time 5.0 minutes
Focus size 2.0*2.0 (mm)
Ray Angle 40+5°
Ray filter 1.0mm(beryllium) +3.0mm(aluminum)
Maximum penetration 40 (mm)
The ring size 270*270*615 (mm)
Tube head weight Directional 22 (KG)
Weight of controller 7.5 (KG)

XXG-2505B lithium battery parameters

Weight 15 (KG)
volume 300*200*200 (mm)
voltage 120 (V)
energy 20 (AH)

Standard Delivery

DirectionalceramicX-ray tube 1 Pcs
Generator 1 Set
High voltage joins cable 1 Pcs 25 Meters
Controller 1 Set
Power cable 1 Pcs 10 Meters
Grounding cable 1 Pcs 5 Meters
Accessories 1 Set

(Including: alarm lamp,1 Pcs; lead letter, 1 box; Film dark cassettes 5 pcs; intensifying screen

5 pcs; Wire penetrameter (IQI) 1 set; fuse1 pc)

Compared with conventional frequency converter:

1. Big penetration under the same conditions.

2. Small size and light weight.

3. Stable and reliable quality

Feature:

●Checking the software and hardware itself after start the machine

●Excellent anti-jamming performance, which can adapt for field operation without power supply, because of the motor supports

●Can adjust exposure parameters with keys ( easy operation.)

●Has the function of Delay time opening HV. Convenient for operator keep away from dangerous field

●Can adjust high voltage slowly for protecting X-ray generator

●Automatically controlling according to 1:1 working and rest operating way, the longest continuous exposure period is 5 minutes.

●Including complete protecting system: over KV, low mA, over mA, over temperature and optical-sound alarming

●Convenient for repairing and maintenance

●Much more Substance for structure designing, much more convenient for local operation

●Time can be changed for±0.3 according to the power supply net to make the exposure more precise

XXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV RangeXXG-2505B Lithium Battery Ceramic X-Ray Tube Flaw Detector with 250KV Range
