HEF-C35RFT RFT/ECT Eddy Current Tester for Heat exchanger and Boiler tube with Tube sheet mapping

HEC-C35RFT eddy current instrument with remote field technology option is a new generation eddy current instrument. HEC-C35RFT with full-digital, multi-frequency, multi-channel is a versatile system offering a comprehensive array of electromagnetic testing techniques available on a single instrument HEC-C35RFT can be used to accurately and efficiently inspect both non-ferromagnetic and ferromagnetic tubing materials for flaws such as pitting corrosion vibrations wear steam erosion and cracking.

HEC-C35RFT combines the advanced testing capabilities of the HEC-C35RFT with a highly sensitive remote field technology option, makes the instrument an ideal solution for a broad range of tubing applications in the petroleum chemical and power generation industries. Where inspection of both non-ferromagnetic and ferromagnetic materials is required. In contrast to other ferromagnetic tubing inspection, the HEC-C35RFT provides not only a more complete --100% coverage with inner and outer surface discontinuity detection, but also thickness measurement -- in a fraction of the time.

Technical specification

Features And Specifications

Frequencies & Channels

●Own all of the function of HEC-C35++

●2 independently-selectable frequencies

●Frequency range from 1Hz to4MHz

●4 independently channels

●Three signal mixing capabilities

Gain Adjustment

●Adjustable gain from 0dB to 48dB in 0.5dB steps.

Phase

●360 degrees phase shift can be varied in steps of 1

degree, the impedance plane can be rotated during

modification for ease of operation.

Colored Real-Time Display

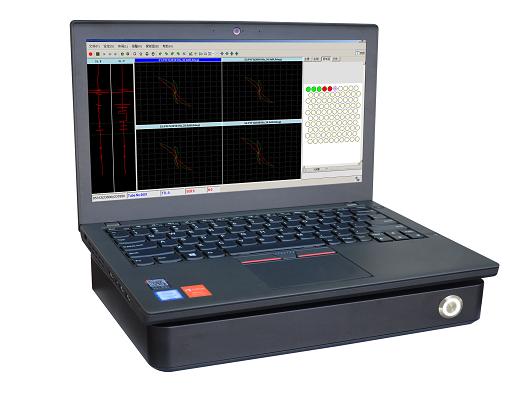

●Colored real-time display of x-y impedance plane and/or strip chart signals.

●Alarm can be set to trigger either inside or outside the gated area

Filter & Others

●Digital filters

●Fast electronic balancing

●Adjustable sample rate.

Inputs

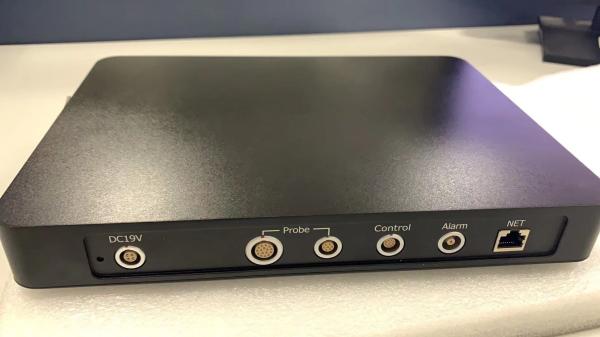

●Four connectors are provided for differential, absolute and reflection type probes. The connectors are designed to operate with most manufacturer’s probes.

●Other connects are provided for rotating probe.

Outputs

●Eight analog outputs

●Print data to Epson series

Memory Store & Recall

●Stores test setups

●Stores screen images

Easy to learn & Easy To Operate

Independent vertical to horizontal display scaling ratio adjustable from 0.1 to 10

●A-scan and C-scan displays

●Delay erase display mode

●All instrument settings are shown on the display.

Alarm

●Audio, visual and logic output alarms

●Special alarm areas adjustable from 1 to 8

●Alarm area is provided for each display window of impedance plane

●Alarm area size and positioning are independently adjustable
