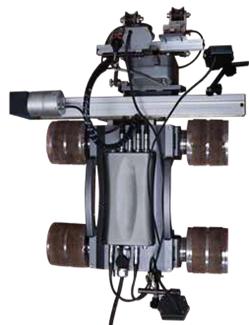

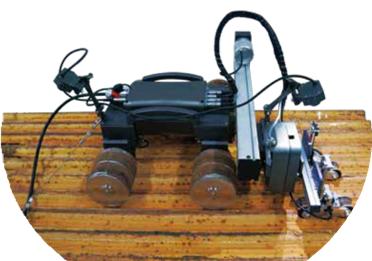

TG-M80 Water-cooled Dual-channel four-wheel drive Wall Magnetic Crawling Thickness Measurement System

This system does not require scaffolding, anti-corrosion coating grinding, or any coupling agent. It conducts video detection for unobstructed crawling across water-cooled walls in all directions

And corrosion thickness measurement inspection; It is applicable to the routine inspection of boiler water-cooled walls and the rapid response to emergency situations such as pipe bursts for troubleshooting.

Product parameters:

Product features:

1.Dual-channel electromagnetic ultrasonic thickness measurement, no grinding or anti-corrosion required

Corrosion layer, no need for any coupling agent, double the detection efficiency.

2.To prevent the high-hardness magnetic wheel from touching the inner surface of the container

If the anti-corrosion coating is damaged, the magnetic wheel should be treated with an outer layer of adhesive without damaging the anti-corrosion coating.

3.The vehicle body can adapt to the surface of water-cooled walls of various specifications and sizes, and can cross obstacles and crawl in all directions on the water-cooled wall surface without any obstacles. No scaffolding is needed, reducing labor and improving efficiency.

4.Equipped with a high-precision grating arm, it offers flexible control and operation

High-precision programmed scanning.

5.This crawler is equipped with three sets of high-definition cameras, respectively

Do not look towards the front, rear, or the thickness measurement position of the electromagnetic ultrasonic probe for observation and video inspection.

6.The magnetic suction force is extremely strong. The maximum vertical load capacity of this magnetic robot is 25kg, meaning that when dragging a 25kg object, it does not affect its various movements in the vertical direction at all. Even in the event of an unexpected power outage, there will be no risk of the vehicle body falling off the surface being inspected.

*High operational safety: This crawling robot uses rare earth magnets to make high-strength permanent magnetic wheels. Even in the event of an unexpected power outage, there will be no risk of the vehicle body falling off the surface being inspected. To prevent the high-hardness magnetic wheel from damaging the anti-corrosion coating on the inner surface of the container, the magnetic wheel is treated with an external adhesive coating.

*Dynamic and agile: The vehicle body is equipped with four motors and a four-wheel drive mode, allowing for forward and backward movement as well as left and right steering.

*Ride stability: The wheels adopt an active cantilever design, which can be applied to different curved surfaces. When passing through circumferential welds, it can minimize the shaking and offset of the vehicle body to the greatest extent. The vehicle is equipped with high-precision level sensors inside, which can sense the horizontal status of the vehicle in real time and self-correct the vertical driving route through software. It is very suitable for stable and reliable operation in large Spaces.

*High efficiency: The multi-channel electromagnetic ultrasonic probe can simultaneously detect multiple water-cooled wall tubes.
