HMP-3000 Fluorescent Magnetic Leakage Field Particle Detector
HMP-3000 Fluorescent Magnetic Leakage Field Particle Detector
HMP-3000 Fluorescent Magnetic Leakage Field Particle Detector
HMP-3000 Fluorescent Magnetic Leakage Field Particle Detector
Specifications
Brand Name :
HUATEC
Model Number :
HMP-3000
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
5sets/Month
Delivery Time :
20-30 working days after receipt of your payment
Packaging Details :
Carton packing box
Circumferential magnetization current (A) :
3000
Longitudinal magnetization MMF (AT) :
12000、16000、18000
Optional coil inner diameter (mm) :
350、400、500
Optional maximum electrode spacing (mm) :
500、1000、1500、2000、3000
Duty cycle :
≤30%
Description

HMP-3000 Fluorescent Magnetic Leakage Field Particle Detector

Work principle

Utilizing interaction between magnetic leakage field and magnetic powder at the defect of the workpiece. It takes advantage of the difference between the permeability of surface & near-surface defects of steel products (such as cracks, slag inclusion, hair lines, etc.) and magnetic permeability of steel, the magnetic field at the discontinuity of these materials will be distorted after magnetization, forming part of the magnetic flux leakage and generating a magnetic leakage field, using the characteristics of the magnetic leakage at the defect site to absorb magnetic powder, thereby attracting magnetic powder to form magnetic powder accumulation at the defect - magnetic marks, under appropriate lighting conditions, the defect location and shape are revealed accordingly.

Technical Parameters

Current

Name

AC/(HWDC/FWDC)

(Optional)
Circumferential magnetization current (A) 3000
Longitudinal magnetization MMF (AT) 12000,16000,18000
Optional coil inner diameter (mm) 350,400,500
Optional maximum electrode spacing (mm) 500,1000,1500,2000,3000
Main engine Integrated/split type (control cabinet separated from main engine)
Sensitivity Clearly display on Type A test piece (15/50 )
Duty cycle ≤30%
Control mode Manual/Automatic
Operation interface Digital ammeter/Touchscreen
Clamping mechanism Manual/Pneumatic
Rotation mode Manual/Electric
Tail electrode movement Manual/Electric
AC magnetization method Circumferential, longitudinal, composite magnetization
AC demagnetization Automatic decay demagnetization
Rectification mode Half-wave rectification (HWDC) / Full-wave rectification (FWDC)
AC/DC magnetization method

AC circumferential magnetization,

DC circumferential magnetization, AC longitudinal magnetization, DC longitudinal magnetization, AC circumferential + DC longitudinal composite magnetization, DC circumferential + AC longitudinal composite magnetization
DC demagnetization Ultra-low frequency demagnetization
UV lamp Suspended / Handheld
Spray time 3–6 seconds / Manual control
Magnetization time 0.5–2 seconds per cycle
Rotation observation time 5–10 seconds
Demagnetization time 3–5 seconds per cycle
Air supply 0.4-0.8MPa
Power supply Three-phase five-wire, 380V±10%, 50Hz
Overall Dimension (mm) Length: 1.5m + electrode spacing
Width: 2,000; Height: 2,200

Application

It is designed to detect surface and near-surface micro-defects (e.g., cracks, slag inclusions) of ferromagnetic workpieces (such as bolts, pins, bushings, gears, gear rings, crankshafts, etc.) caused by forging, quenching, grinding, fatigue, and other processes.

Compliance Standards

Magnetic particle flaw detector: GB/T 8290—2011

Observation conditions for magnetic particle inspection: GB/T 5097-2020 / ISO 3059:2012

ASTM standard: Magnetic Particle detection method ASTM E1444-01

EU/International standards: DIN EN ISO 9934-2:2003

Technical Parameters

Detection range: Diameter: 0–260 mm, Length: 1,200 mm (customizable range 0–3,000 mm)

Detection method: Fluorescent or non-fluorescent magnetic particle detection

Magnetization method: Circumferential, longitudinal, and composite magnetization

Electrode spacing: Adjustable 0–1200 mm, customizable range 0–3000 mm

Clamping mechanism: Manual/pneumatic clamping

Magnetization current: 0–4000A

Demagnetization effect: Residual magnetism <0.3 mT

Sensitivity: Clearly display on A1-type standard test piece (15/50 μm)

Power supply: Three-phase five-wire AC 380V 50Hz

Standard Configuration:

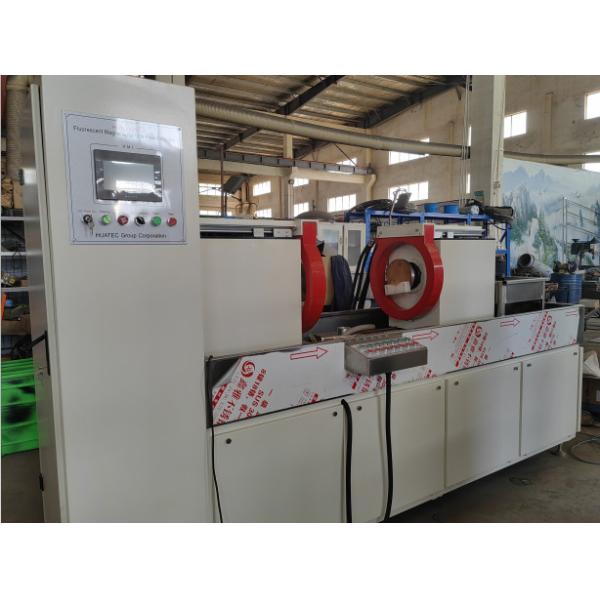

Magnetic Particle Inspection Main Unit

Digital Ammeter

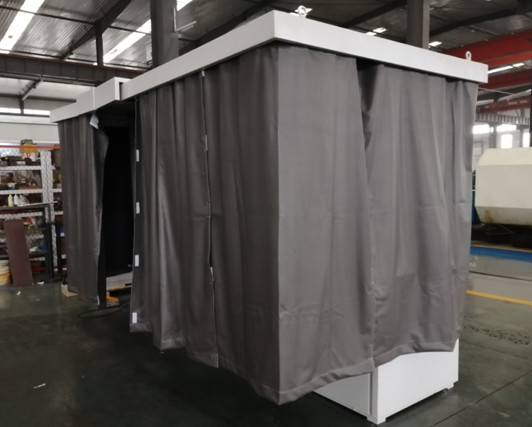

Lightproof Darkroom with Shielding Curtain

Suspended UV Lamp

Fluorescent Magnetic Particles

Magnetic Suspension Concentration Test Tube

Magnetometer

Model Configuration Tail Electrode Movement Rotation Observation Operation Panel
Manual Electric Manual Electric Digital Ammeter Touchscreen
Economical Basic Darkroom √ √ √
Standard Semi-enclosed Darkroom √ √ √
Advanced Fully-enclosed Darkroom √ √ √
