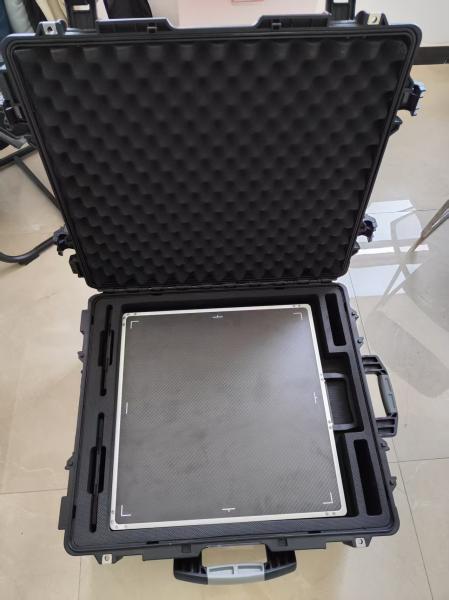

DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection
DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection
DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection
DR Flat Panel H1719HDA-GZ Sensor For Dental Imaging And Industrial Inspection
Specifications
Brand Name :
HUATEC
Model Number :
H1719HDA-GZ
Certification :
ISO
Place of Origin :
China
Dimension :
203×234×22.8 mm
Weight :
1.8g
Material :
Aluminum and magnesium alloys
Front Panel :
Carbon fiber
Description

H1719HDA-GZ It is an amorphous silicon based sensor suitable for dental imaging and industrial inspection

Sensor
Receptor Type IGZO

Scintillator CsI:TI

Active Area 165.8 x 183.8 mm

Resolution 1386 x 1536

Pixel Pitch 120 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Limiting Resolution 4.2 LP/mm

Energy Range 20-160 KV

Dynamic Range ≥76 dB

Category Parameter Details
Electricals and Interface A/D Conversion 16 bits
Data Interface Gigabit Ethernet
Frame Rate 20 fps
Exposure Control Software/Outer
Mechanical Dimension 203×234×22.8 mm
Weight 1.8 g
Material Aluminum and magnesium alloys
Front Panel Carbon fiber
Environmental Temperature 10–35°C (operating); –10–50°C (storage)
Humidity 30–70% RH (non-condensing)
Ingress Protection IP51

Electricals and interface
A/D Conversion 16 bits

Data Interface Gigabit Ethernet

Frame rate 20fps

Exposure Control Software/Outer


Mechanical
Dimension 203×234×22.8 mm
Weight 1.8g

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51
