HDL-430D Automatic Film Registration Industry Film Processing Table-top Machine
HDL-430D Automatic Film Registration Industry Film Processing Table-top Machine
HDL-430D Automatic Film Registration Industry Film Processing Table-top Machine
HDL-430D Automatic Film Registration Industry Film Processing Table-top Machine
Specifications
Brand Name :
HUATEC
Model Number :
HDL-430D
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD8625-USD9750/SET
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Wooden box packaging
Film Size :
Minimum: 50×100mm, Max. Width: 450mm
Processing Time :
3.2～16min. （0.1min. adjustable）
Feed-in Speed :
155～765 mm/min.
Tank Volume :
Dev. Fix. Wash.13L for each
Dev. Temp. :
20～40℃ （0.1℃ adjustable）
Dry Temp. :
20～70℃ （5℃ adjustable）
Power Consumption :
110～240V 10A, 50 or 60Hz
Description

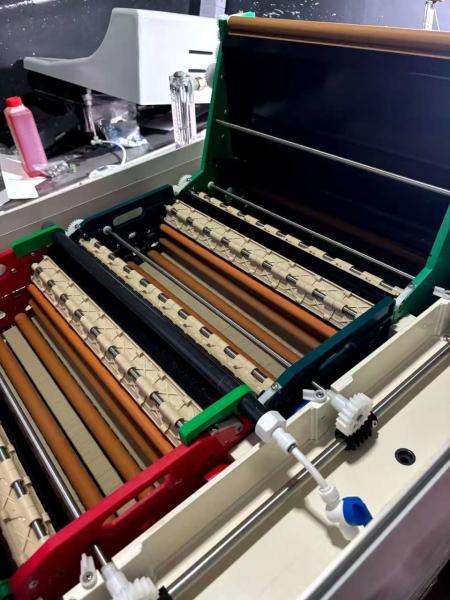

HDL-430D Automatic Film-registration Industry Film Processing Table-top Machine

The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!

Specification

 Model: HDL-430D

Film Size: Minimum: 50×100mm, Max. Width: 450mm

Film Type: roll orflat film

Film probes: 4 sets of micro inductive probes

Processing Time: 3.2～16min. (0.1min. adjustable)

Feed-in Speed:155～765 mm/min.

Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time)

Tank Volume: Dev. Fix. Wash.13L for each

Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡

Dev. Temp.: 20～40℃ (0.1℃ adjustable)

Fix. Temp.:automatically adjustable

Dry Temp.: 20～70℃ (5℃ adjustable)

Water Temp.: 5～30℃

Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown

Power Consumption:110～240V 10A, 50 or 60Hz

Weight: G.W: 128kg, N.W: 88kg

Dimension: appr.: 108×71.5×113cm3
