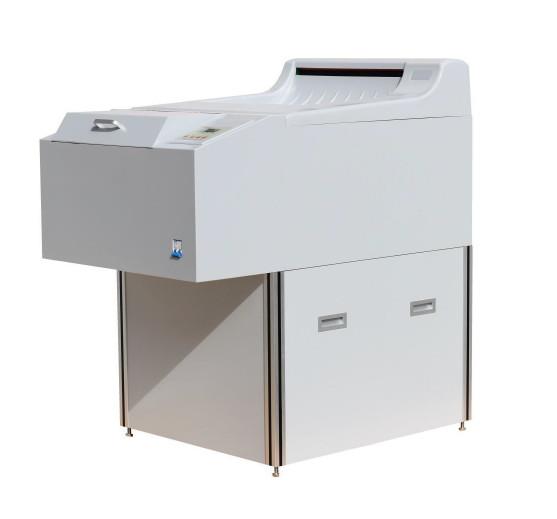

Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Easy Portability NDT Film Processor With Max. Width Of 450mm And Minimum Film Size Of 50×100mm
Specifications
Brand Name :
NDT Film Processor
Model Number :
HDL-430D
Place of Origin :
China
Certification :
ISO,ASTM
MOQ :
1
Packaging Details :
Wooden box
Delivery Time :
10-25 days after payment
Payment Terms :
T/T in advance, or paypal, or Western Union
Supply Ability :
500
Dry Temp :
20～70℃ （5℃ Adjustable）
Water Temp :
5～30℃
Model :
HDL-430D
Film Size :
Minimum: 50×100mm
Film probes :
4 Sets Of Micro Inductive Probes
Feed-in Speed :
155～765 Mm/min.
Fix. Temp :
Automatically Adjustable
Film Type :
Roll Orflat Film
Description

Product Description:

The machine is widely used in the quality inspection of boilers, shipbuilding, pressure vessels, oil and gas pipeline construction, aerospace and other equipment, and is widely praised by customers in the testing industry!

Features:

  • Product Name: X-Ray Flaw Detector
  • Tank Volume: Dev. Fix. Wash. 13L For Each
  • Processing Time: 3.2～16min. (0.1min. Adjustable)
  • Max. Width: 450mm
  • Film Type: Roll Or Flat Film
  • Fix. Temp: Automatically Adjustable

Technical Parameters:

Dry Temp 20～70℃ (5℃ Adjustable)
Dev. Temp 20～40℃ (0.1℃ Adjustable)
Film Size Minimum: 50×100mm
Processing Time 3.2～16min. (0.1min. Adjustable)
Model HDL-430D
Max. Width 450mm
Feed-in Speed 155～765 Mm/min.
Film Type Roll Orflat Film
Weight G.W: 128kg, N.W: 88kg
Tank Volume Dev. Fix. Wash.13L For Each

Specifications:

Model: HDL-430D
Film Size: Minimum: 50×100mm, Max. Width: 450mm
Film Type: roll orflat film
Film probes: 4 sets of micro inductive probes
Processing Time: 3.2～16min. (0.1min. adjustable)
Feed-in Speed:155～765 mm/min.
Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time)
Tank Volume: Dev. Fix. Wash.13L for each
Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡
Dev. Temp.: 20～40℃ (0.1℃ adjustable)
Fix. Temp.:automatically adjustable
Dry Temp.: 20～70℃ (5℃ adjustable)
Water Temp.: 5～30℃
Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown
Power Consumption:110～240V 10A, 50 or 60Hz
Weight: G.W: 128kg, N.W: 88kg
Dimension: appr.: 108×71.5×113cm3
