NDT Calibration Block IIW V2 Gross Weight 1kg
NDT Calibration Block IIW V2 Gross Weight 1kg
Specifications
Brand Name :
Huatec
Model Number :
IIW V2 Block
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
1000 pcs per month
Delivery Time :
3-7 days after payment
Packaging Details :
in carton box
Product name :
Calibration Block
Model :
IIW V2 Block
Material :
CS,SS
Gross weight :
1kg
Description

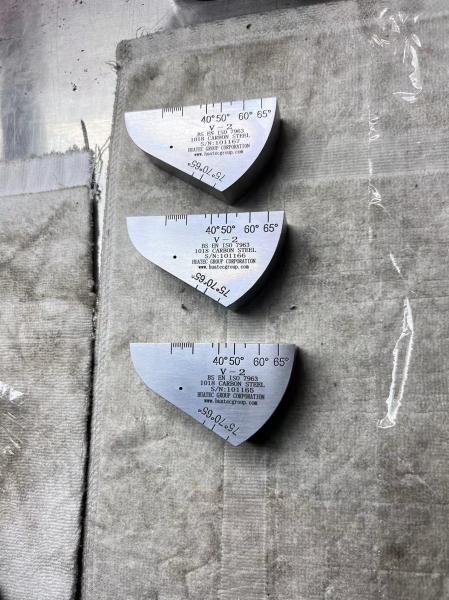

NDT Calibration Block IIW V2 Block

Standard: ISO7963-2010

IIW2 test block (V-2 test block) is the standard test block approved by the International Welding Society. V-2 (DIN54122) compared with IIW test block, V-2 test block has the advantages of light weight and easy to carry, especially suitable for field use. See Figure 1-2.

Main Points of use:

(1) The incident point and sensitivity margin of the inclined probe were measured by using an arc reflection surface with a radius of R50mm;

(2) Using the reflection surface of 5-pass hole, the refraction range of tilt probe is 45°-65° and 65°-75°, respectively.

(3) The horizontal and vertical linearity of the flaw detector can be measured by using multiple p-wave reflections of the bottom with a thickness of 12.5mm;

(4) Two arc surfaces, R25 and R50, are used to correct the time axis and zero point.
