MAIN FEATURE

1. Mechatronics and ergonomics design, small size, light weight, easy to operation

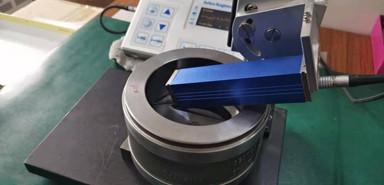

2. The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step.
3. DSP chip control and data processing, high speed, low power consumption
4. 22 Parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2
5. Measurement range up to 160μm (can be optional to 320μm)
6. 4 inches OLED screen, wide viewing angle, excellent readability display.
7. Can be operated using buttons and has menu.
8. It provide Blue tooth Capability, support wireless connection with mobile and mini printer.
9. Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 55 hours while fully charged, and there is remaining charge indicator, charging hint
10. Large capacity data storage, 100 item of raw data and curves can be stored
11. Real-time clock setting and display for easy data recording and storage
12. With auto sleep, auto power off, power-saving features
13. Reliable circuit and software design to preventing the motor stuck
14. Language: English
15. All parameters or any of the parameters which set by users can be printed
16. Optional accessories: Bluetooth capability, curved sensor, pinholes sensors, measurement, stand, extension rod, printer
17. Portable Surface Roughness Tester complies with international standards ISO, DIN, ANSI, JIS
18. 8 types of different probes optional, can make the sensor as customers parts test needs , Can test the narrow deep hole

TECHNICAL DATA

STANDARD DELIVERY
