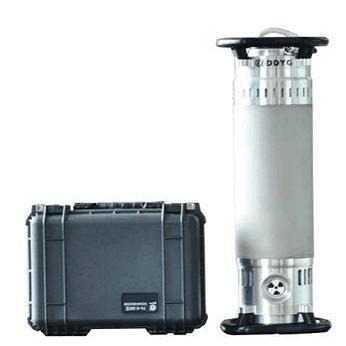

Portable High Frequency X ray Flaw Detector
Portable High Frequency X ray Flaw Detector
Portable High Frequency X ray Flaw Detector
Portable High Frequency X ray Flaw Detector
Specifications
Brand Name :
HUATEC
Model Number :
XXG-300GF
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1pc
Payment Terms :
T/T, Western Union/Paypal
Supply Ability :
500PCS
Delivery Time :
5-8 working days
Packaging Details :
Wooden
Name :
High frequency X-ray flaw detector
kV Adjustment range :
120～300 kV
mA Adjustment range :
0.5～3 mA(Stepping 0.1mA)
Maximum power :
900W
Description

Portable high frequency X-ray flaw detector

Main performance:

n Continuous exposure under the conditions of 35℃ 300kv/3mA, 250kv/3mA;

n Wide input voltage range to meet the power supply of various generators;

n Lightweight, strong penetration, stable performance;

n More suitable for use in harsh and humid environments;

n The operation interface is intuitive and easy to operate;

Main technical parameters

project name XXG-300GF XXG-250GF
X-ray generator Weight 27kg 25kg
Dimensions Φ295×752 (Φ×L) Φ295×704 (Φ×L)
Controller Weight 11kg 11kg
Dimensions 410×228×300 (L×B×H) 410×228×300 (L×B×H)
Focus size 3.0×3.0 3.0×3.0
Radiation angle 40°×40° 40°×40°
Maximum penetration(Fe) 70mm (A3) 60mm (A3)
kV Adjustment range 120～300 kV 70～250 kV
mA Adjustment range 0.5～3 mA(Stepping 0.1mA) 0.5～3 mA(Stepping 0.1mA)
Maximum power 900W 900W
Leakage radiation value maximum 5.0msv/h maximum 5.0msv/h
Operating temperature -20˚C～+50˚C -20˚C～+50˚C
Storage temperature -25˚C～+70˚C -25˚C～+70˚C
Voltage 85～264 VAC 85～264 VAC
Power frequency 45～65 Hz 45～65 Hz
