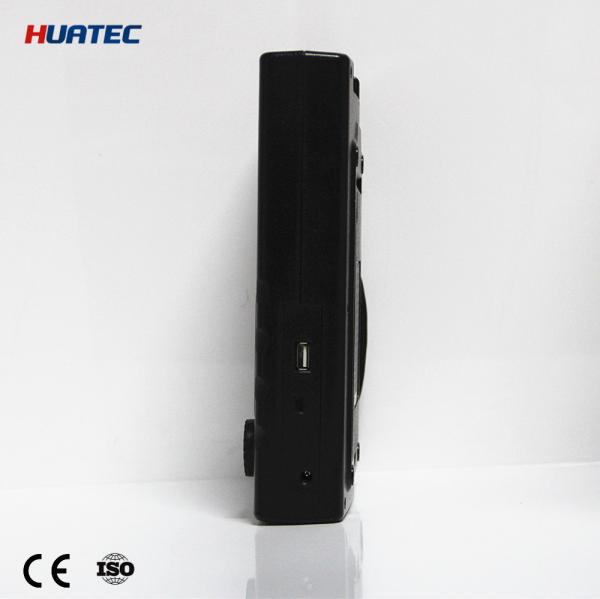

FD202 Automated Calibration Digital High speed Capture Ultrasonic Flaw Detector
FD202 Automated Calibration Digital High speed Capture Ultrasonic Flaw Detector
FD202 Automated Calibration Digital High speed Capture Ultrasonic Flaw Detector
FD202 Automated Calibration Digital High speed Capture Ultrasonic Flaw Detector
Specifications
Brand Name :
HUATEC
Model Number :
FD202
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD4600/set - USD5700/set
Payment Terms :
T/T, Western Union,Paypal, L/C
Delivery Time :
20-30 working days after receipt of your payment
Packaging Details :
Outer carton packaging
Measuring Range（mm） :
0 ～ 10000
Measurement Mode :
Single、Dual、Thru
Frequency Range（MHz） :
0.5 ～ 20
Gain（dB） :
0 ～ 120
Material Velocity（m/s） :
1000 ～ 15000
Description

FD202 Automated Calibration Digital High-speed Capture Ultrasonic Flaw Detector

★ Automated calibration,Automated gain

★ DAC,AVG,B scan,6dB DAC

★ High-speed capture and very low noise

★ Solid metal housing

★ high contrast viewing of the waveform from bright

★ Powerful pc software and reports can be export to excel

Specifications

Title Parameter Title Parameter
Measuring Range(mm) 0 ～ 10000 Measurement Mode Single,Dual,Thru
Vertical Linearity Error ≤3% Reject 0~80%
Horizontal Linearity Error ≤0.1% Pulse Displacement(μs) -20 ～ +3400
Sensitivity Leavings ≥62dB Zero(μs) 0.0 ～ 99.99
Dynamic range ≥34dB Port Type C9
Resolving Power ≥36dB Operating Temperature (℃) -20～50
Frequency Range(MHz) 0.5 ～ 20 H×W×D(mm) 240×150×50
Gain(dB) 0 ～ 120 Weight(kg) 1.7(with battery)
Material Velocity(m/s) 1000 ～ 15000

Other assistant function

  • Display freeze;
  • Automated echo degree;
  • Angles and K-value;
  • Lock and unlock function of system parameters;
  • Electronic clock calendar ;
  • Two gates setting and alarm indication;
  • Gate and DAC alarm;

Features

  • Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф)；
  • Automated switch three staff gauge ((Depth d,level p,distance s)；
  • Automated calibration of transducer Zero-point, Angles, Front edge and material Velocity ；
  • Convenient to make and use DACTCG and AVG to evaluate the echo, the curve can be modified and compensated
  • 6dB DAC functions;
  • 500 independence setup, any criterion can be input freely, we can work in the scene without test block；
  • Big memory of 1000 A graph
  • Automated gain and gain scan;
  • Peak Hold and Peak Memory；
  • B scan;
  • AWS D1.1
  • Powerful pc software and reports can be export to excel;
  • Li battery, continue working time up to 10 hours;
  • The embeded software can be online updated；FD202 Automated Calibration Digital High speed Capture Ultrasonic Flaw Detector
