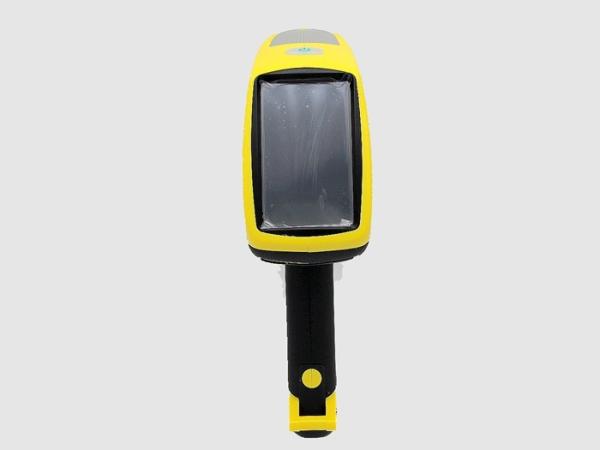

HXRF-580GF Handheld High Coordination Gold Alloy Analysis Spectrometer

Product function, analysis accuracy and stability

(1) Function

(1) All elements between Mg (magnesium) and U (uranium) can be analyzed.

(2) More than 2,000 kinds of alloy grades can be analyzed, and the machine comes with a database of alloy grades up to 300 kinds.

At the same time, users can customize and add more than 300 kinds of gold medal database.

(3), used for stainless steel, alloy steel, tool steel grade identification and composition, content detection, including commonly used stainless steel grade 201 203 301 304 316 321 and other hundreds of kinds.

(4), used for copper alloy grade and composition testing, including brass, bronze, copper, pure copper and so on.

(5), used for a variety of hybrid alloy composition and detection, including titanium alloy, tin alloy, lead alloy, tungsten alloy, zinc alloy

Gold, aluminum alloy, nickel alloy, etc.

(6) For precious metal detection. Contains gold, silver, platinum, rhodium, palladium.

(2) Analysis accuracy and stability:

Component analysis:

At the same time, it can analyze stainless steel, copper alloy, zinc alloy, aluminum alloy, iron alloy, lead tin alloy and other alloys.

The elements H, He, Li, Be, B, C, N, O cannot be analyzed for the moment

Technical parameters and indicators

Analysis accuracy and stability:

1) The detection limit of metal content is 20 ~ 30ppm, and the reading tolerance of these metal test and analysis is stable. The instrument has reached the following standards:

A. The detection content of more than 5% of the element stable test read difference is less than 0.1 ~ 0.2%

B. The detection content in 0.5 ~ 5% of the element stable test reading difference of 0.05% ~ 0.1%

C. Detection content in 0.1 ~ 0.5% of the element stable test reading difference of 0.01 ~ 0.03%

D. Test the reading change rate of elements with less than 0.1%

2) Can detect and analyze the sample status: solid, powder.

Product configuration:

(1) One main machine of X-ray fluorescence spectrum analyzer;

(2) A set of special test software for alloy analysis;

(3) Lithium battery (two pieces);

(4) a set of lithium battery chargers;

(5) 316 standard cap piece;

(6) A copy of the user manual;

(7) Instrument factory inspection certificate;

(8) Two pieces of window protective film;

(9) One waterproof main engine protection box;
