H3543HSA-AG IP51 Light Weight DR Panel
H3543HSA-AG IP51 Light Weight DR Panel
H3543HSA-AG IP51 Light Weight DR Panel
H3543HSA-AG IP51 Light Weight DR Panel
Specifications
Brand Name :
HUATEC
Model Number :
H3543HSA-AG
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T,Paypal
Supply Ability :
5sets/Month
Delivery Time :
10-15 working days after receipt of your payment
Packaging Details :
Carton packing box
Active Area :
350 x 430 mm
Pixel Pitch :
139 μm
Resolution :
2560 x 3072
Energy Range :
40-160 KV
Adapter In :
AC 100-240V,50-60Hz
Description

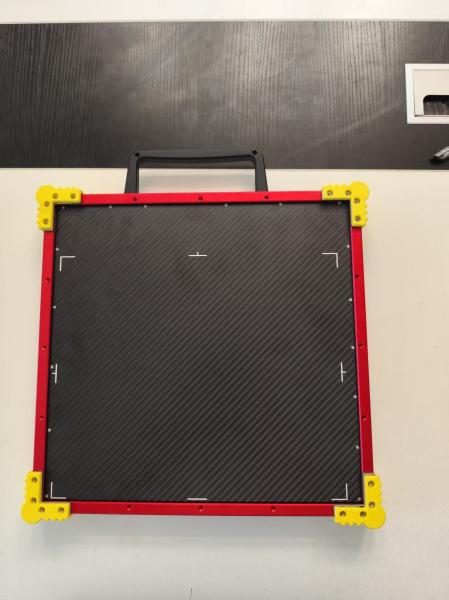

H3543HSA-AG IP51 Light Weight DR Panel

H3543HSA-AG is a light weight detector based on amorphous silicon(a-Si), which is suitable for various fields such as DR and Non-destructive testing.

Electricals and interfaceA/D Conversion 16 bits

Data Interface Gigabit Ethernet

Acquire Time wired: 1s

Exposure Control Software/Outer/AED

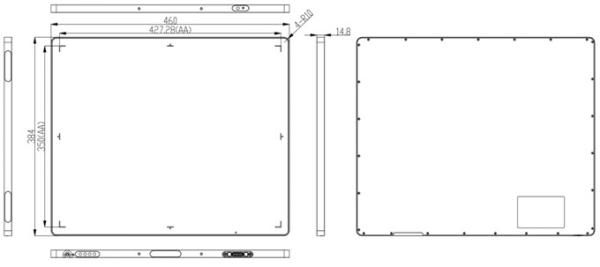

Mechanical
Dimension 384 × 460 × 14.8 mm
Weight 3.4kg

Material Aluminum and magnesium alloys

Front Panel Carbon fiber

Enviromental

Temperature 10-35°C (operating)；-10~50°C (storage)

Humidity 30-70% RH (non-condensing)

Ingress Protection IP51

Sensor
Receptor Type a-Si

Scintillator Gos / CsI:TI

Active Area 350 x 430 mm

Resolution 2560 x 3072

Pixel Pitch 139 μm

Power Supply & Battery

Adapter In AC 100-240V,50-60Hz

Adapter Out DC 24V,2.7A

Power Dissipation <20 W

Image Quality
Limiting Resolution 3.5 LP/mm

Energy Range 40-160 KV

Dynamic Range ≥84 dB

Sensitivity ≥0.54 LSB/nGy

Ghos <1% 1st frame

DQE 42% @(1 LP/mm)

28% @(2 LP/mm)

MTF 68% @(1 LP/mm)

38% @(2 LP/mm)

20% @(3 LP/mm)

H3543HSA-AG IP51 Light Weight DR PanelH3543HSA-AG IP51 Light Weight DR PanelH3543HSA-AG IP51 Light Weight DR PanelH3543HSA-AG IP51 Light Weight DR PanelH3543HSA-AG IP51 Light Weight DR PanelH3543HSA-AG IP51 Light Weight DR Panel
