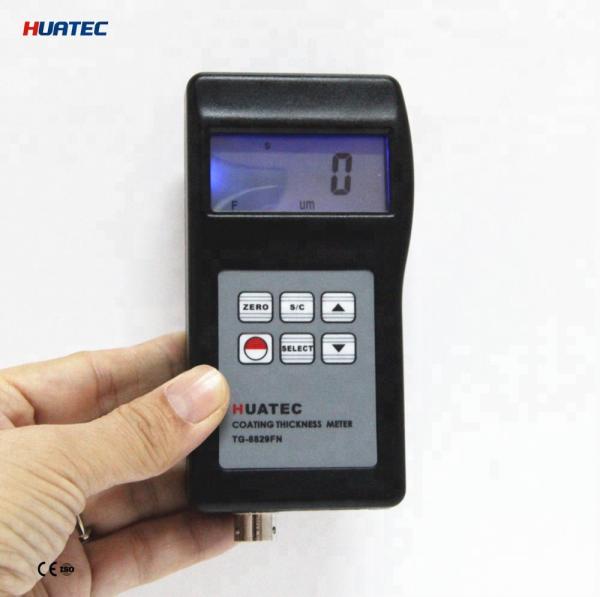

TG-8829FN Car Industry Dry Film Coating Thickness Gauge
TG-8829FN Car Industry Dry Film Coating Thickness Gauge
TG-8829FN Car Industry Dry Film Coating Thickness Gauge
TG-8829FN Car Industry Dry Film Coating Thickness Gauge
Specifications
Brand Name :
HUATEC
Model Number :
TG-8829FN
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD212/set - USD240/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Measuring range :
0-1250um/0-50mil
Resolution :
0.1/1
Accuracy :
±1-3%n or ±2.5um
Min. measuring area :
5mm
Min. sample thickness :
0.3mm
Operating conditions :
0-+45℃(32℉-104℉),≤90%RH
Description

TG-8829FN Car Industry Dry Film Coating Thickness Gauge

Description:
Operating principle: magnetic induction/eddy current (F/NF)
With separate probe(s)

Auto power off

Application:
1. Coating thickness gauge TG-8829F can measure the thickness of non-magnetic coating layers (aluminum, chrome, copper, ename1, rubber, paint) on magnetic substrate (steel, iron, alloy and magnetic stainless steel)
2. Coating thickness gauge TG-8829N can measure the thickness of non-conductive coating layers (ename1, rubber, paint, vanish, plastic anodic oxide layer) covered on non-ferrous substrate (aluminum, brass, zinc, tin and non-magnetic stainless steel)

Measuring range 0-1250um/0-50mil
Resolution 0.1/1
Accuracy ±1-3%n or ±2.5um
Min. measuring area 5mm
Min. sample thickness 0.3mm
Battery indicator low battery indicator
Metric/ imperial convertible
Power supply 4x1.5V AAA(UM-4)battery
Operating conditions 0-+45℃(32℉-104℉),≤90%RH
Dimensions 124x62x30mm
weight 115g

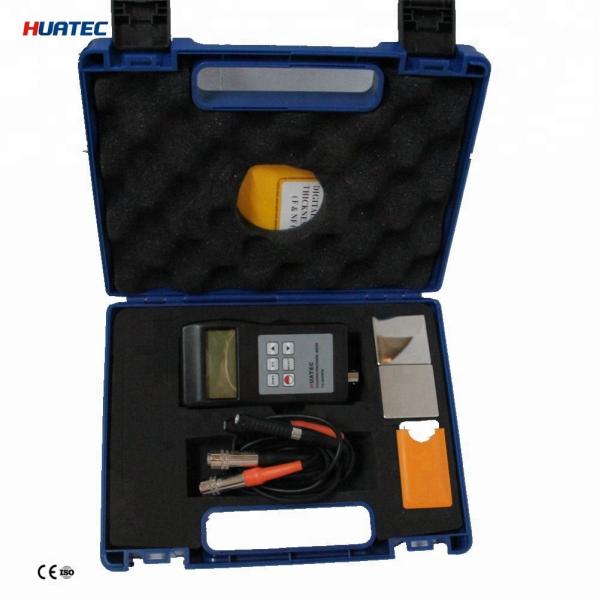

Standard Delivery:
Main unit 1
F type probe 1
N type probe 1
F calibration base set 1
N calibration base set 1
Calibration foil set 1set (4 foils)
Carrying case 1
Instruction manual 1


Optional Accessories:
Cable and software for RS-232C
Customized testing range

TG-8829FN Car Industry Dry Film Coating Thickness GaugeTG-8829FN Car Industry Dry Film Coating Thickness Gauge
