HD-201 Series Dial Porosity Holiday Coating Surface Flaw Testing Detector
HD-201 Series Dial Porosity Holiday Coating Surface Flaw Testing Detector
HD-201 Series Dial Porosity Holiday Coating Surface Flaw Testing Detector
HD-201 Series Dial Porosity Holiday Coating Surface Flaw Testing Detector
Specifications
Brand Name :
HUATEC
Model Number :
HD-201A/B/C
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
USD795/set - USD859/set
Payment Terms :
T/T,Paypal
Supply Ability :
10sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Carton packing box
Measuring range :
A:0.03-3.5mm(Epoxy coal tar pitch medium) B:3.5-10.mm(Petroleum asphalt medium) C:0.03-10.mm(Epoxy coal tar pitch,Petroleumasphalt medium)
Output high voltage :
A:0.5-15KV B:15-35KV C:0.5-35KV
High voltage control system :
Ordinary potentiometer adjustment
DC supply :
12v
Consumption :
<5w
Alarm delay :
1-2s
High voltage probe :
Electronic high voltage generator
Description

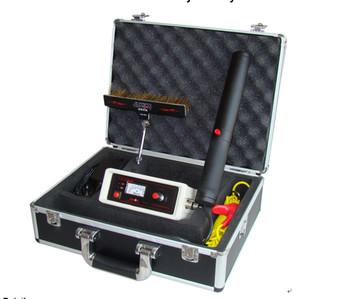

HD-201A/B/C Dial Porosity Holiday Coating Surface Flaw Testing Detector

[Function]

HD-201 Porosity Holiday detector is a special testing equipment used to detect oil and gas pipelines, cables, enamel, metal tank, hull and other protective coatings flaws. It is a simple and practical equipment

[Characteristic]
1,Low power consumption, small size, light weight;
2,Simple operation;


[Main technical index]

Measuring range A:0.03-3.5mm(Epoxy coal tar pitch medium)
B:3.5-10.mm(Petroleum asphalt medium)
C:0.03-10.mm(Epoxy coal tar pitch,Petroleumasphalt medium)
Output high voltage

A:0.5-15KV
B:15-35KV
C:0.5-35KV
Display

pointer
High voltage control system Ordinary potentiometer adjustment
DC supply 12v
Consumption <5w
Alarm delay

1-2s
High voltage probe Electronic high voltage generator
Packing

metal chest
Main dimension

165mm×155mm×68mm
Weight

1.5kg(Including battery)

[Accessories]

Charger, high pressure gloves, long cable, short connecting line, Connecting magnet, earth rod, The brush plate, Manual


[Principle]
The detector generates a high DC voltage that is applied to the coating surface through a probe. The detector is connected to the substrate via the high voltage returned. When the probe is passed over a coating flaw, then the electrical circuit is completed and current flows from the probe to the substrate. As a result, audible and visual alarms are activated in the detector and a spark may be produced at the flaw.
