TG1956 FSTN LCD Display Integral Probe F NF Coating Thickness Gauge
TG1956 FSTN LCD Display Integral Probe F NF Coating Thickness Gauge
TG1956 FSTN LCD Display Integral Probe F NF Coating Thickness Gauge
TG1956 FSTN LCD Display Integral Probe F NF Coating Thickness Gauge
Specifications
Brand Name :
HUATEC
Model Number :
TG1956
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
USD69-USD78/SET
Payment Terms :
T/T, Western Union,Paypal
Supply Ability :
10 Sets/Month
Delivery Time :
7-10 working days after receipt of your payment
Packaging Details :
Outer carton packaging
Range :
0~1300um 0~51.2mil
Accuracy :
±(2.5%+1um) ±(2.5%+0.04mil)
Resolution :
0.1um/0.01mil
Calibration :
Points: ZERO/50/100/250/500/1000um
Operation Environment :
Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Description

TG1956 FSTN LCD Display Integral Probe F&NF Coating Thickness Gauge

Features:
FSTN LCD Display

Built-in Black Light

Integral Probe F&NF, Auto detecting attribute of substrates

Nice shell design for easy reading

Built-in Silicone Slip Strip

Measurement Range: 0~1300um

Accuracy: ±(2.5%+1um)

Resolution: 0.1um

Zero Calibration and 50/100/250/500/1000um Calibration Points

5 minutes auto power off to saving power

Power Supply: 4 x AAA batteries

Operating Temperature: 0 to 40℃ (32 to 104℉)

Size: 155mm x 62mm x 35mm (6.10” x 2.44” x 1.38”)

Weight: 125g (4.41 oz)

Technical specifications

Probe F Probe N
Principle Magnetic Induction Eddy Current
Range

0~1300um

0~51.2mil

0~1300um

0~51.2mil
Accuracy

±(2.5%+1um)

±(2.5%+0.04mil)

±(2.5%+1um)

±(2.5%+0.04mil)
Resolution 0.1um/0.01mil 0.1um/0.01mil
Calibration Points: ZERO/50/100/250/500/1000um
Units um, mil
minimum curvature radius convex: 1.5mm
minimum curvature radius concave: 25mm
minimum measuring area: Diameter 6mm
minimum thickness of substrate 0.5mm(0.02”) 0.3mm(0.012”)

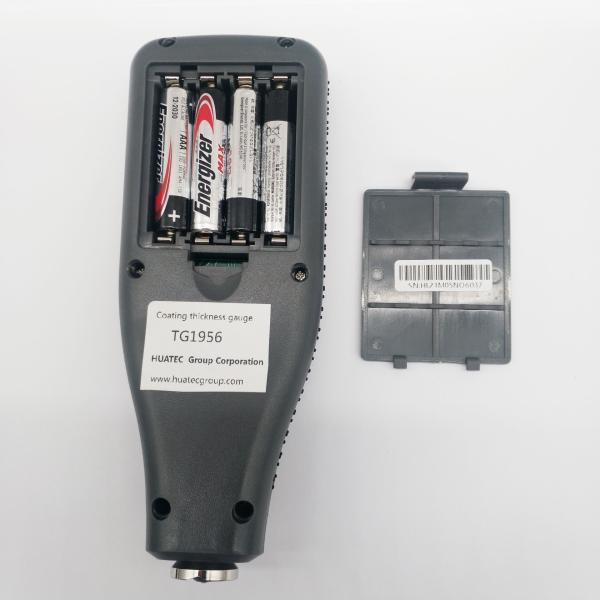

Power 4 x AAA batteries
Operation Environment Temperature:0~40℃(32~104℉) Humidity:20%~90%RH
Size

155mm x 62mm x 35mm

(6.10” x 2.44” x 1.38”)
Weight 125g(4.41oz)
