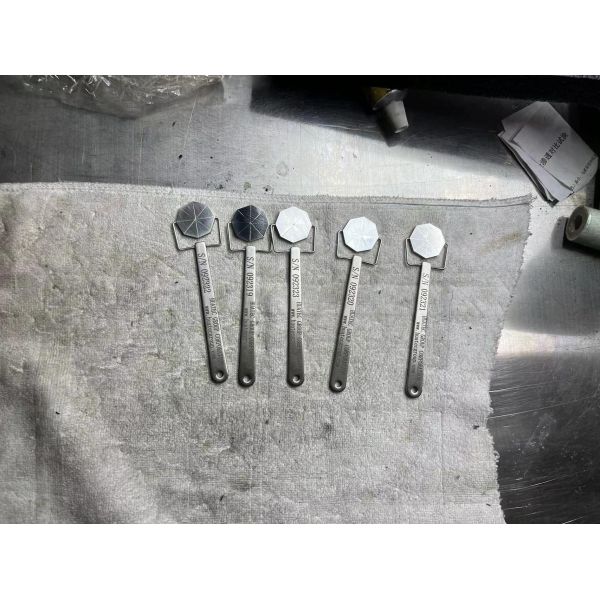

Magnaflux Pie Field Indicator
Magnaflux Pie Field Indicator
Specifications
Brand Name :
HUATEC
Model Number :
Magnaflux Pie Field Indicator
Certification :
ISO，CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 pieces per month
Delivery Time :
3~7 days after payment
Packaging Details :
in carton
Product name :
Magnaflux Pie Field Indicator
Standard :
ASME BPVC Section V Article 7
Description

Magnaflux Pie Field Indicator

Overview

The Pie Gauge is a tool for quickly verifying the direction of magnetic flux on a surface. It is made from eight ferrous segments, braised into a single piece, providing a star pattern of nonferrous discontinuities. The eight linear discontinuities provide indications in all directions. Typically used with dry powders for yoke inspection, the Pie Gauge can be held at any angle and will generate indications perpendicular to the direction of the magnetic flux. Non-ferrous handle with pivot.

Instructions

Place the pie gauge as flat as possible on the test surface with the visible pie sections facing down. Magnetize the surface and apply magnetic particles. Indications will form along lines crossing the direction of the magnetic flux. Indications perpendicular to the magnetic flux will be stronger and more well defined than indications at an angle. No indications will form parallel to (in line with) the magnetic flux. Note: the pie gauge does not indicate magnetic field strength.

Magnaflux Pie Field Indicator
