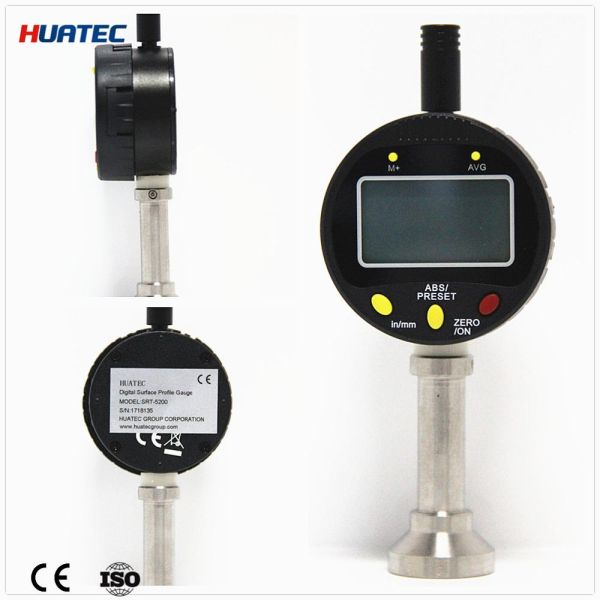

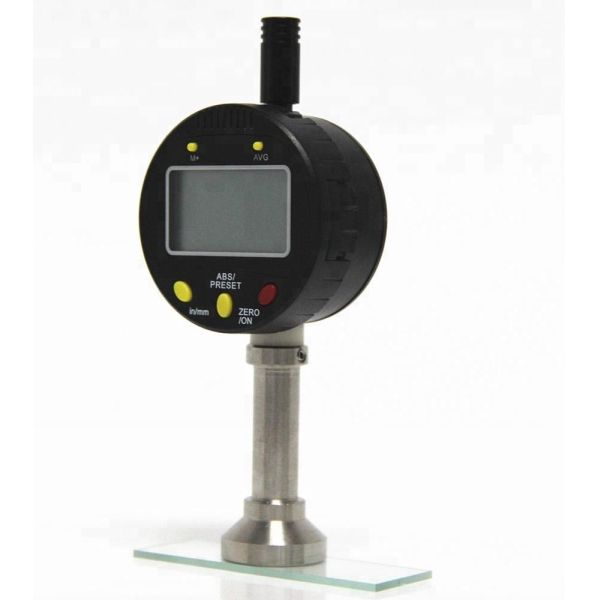

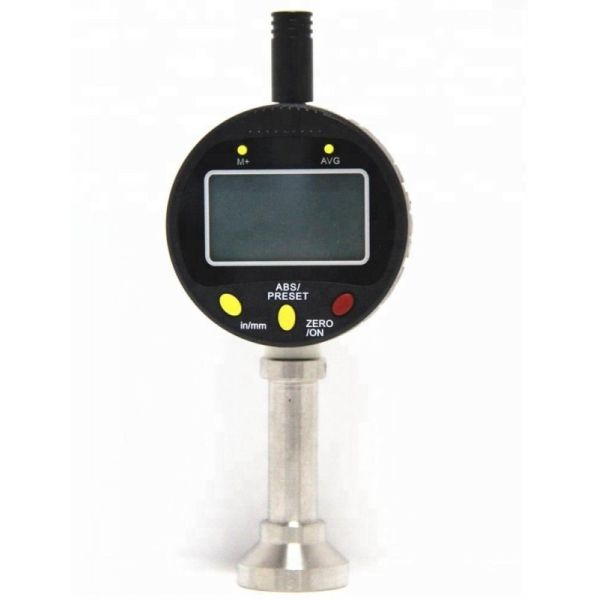

Digital Surface Profile Gauge
Digital Surface Profile Gauge
Digital Surface Profile Gauge
Digital Surface Profile Gauge
Digital Surface Profile Gauge
Digital Surface Profile Gauge
Specifications
Brand Name :
HUATEC
Model Number :
SRT-5200
Certification :
ISO，CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs per month
Delivery Time :
3~7 days after payment
Packaging Details :
in carton
Product name :
Surface Profile Gauge
Measuring Range :
0 - 6500μm m (0 - 0.25")
Resolution :
0.001mm (0.00005")
Power :
1.55V silver oxide battery (SR44)
Description

Digital Surface Profile Gauge

• Working Temperature: 0 to +40C (32 to 104F)
• Storage Temperature: -10 to +60C (14 to 140F)
• Relative Humidity: <80%
• Accuracy: ±2μm
• Unit: metric/imperial
• Enables quick assessment of surface condition prior to coating
• It works on grit sand shot blasted and saw cut surfaces
• The small size (42 mm diameter) of this surface profile gauge makes it easy to use and easy to balance on the surface
• Its design permits accuracies equivalent to an electronic surface trace
• Gives maximum peak to average valley height
• Available with metric and imperial units.
• This gauge can also measure the depth of pits, cracks, craters and scratches of the outer (and in some cases the inside) surfaces of steel structures, pipes and concrete
• Optional software for data output

Measuring Range 0 - 6500μm m (0 - 0.25")
Resolution 0.001mm (0.00005")
Gauge face diameter 42mm (1.65")
Power 1.55V silver oxide battery (SR44)
Battery Life 8 - 12 months

Digital Surface Profile Gauge
