2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch
2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch
2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch
2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch
2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch
2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch
Specifications
Brand Name :
HUATEC
Model Number :
HFV-2708
Certification :
ISO，CE
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 pcs per month
Packaging Details :
in carton
Product name :
Film Viewer
Model :
HFV-2708
Power supply :
AC 220V 50Hz
Machine size :
485mm (L) *225mm (W) *182mm (H)
Description

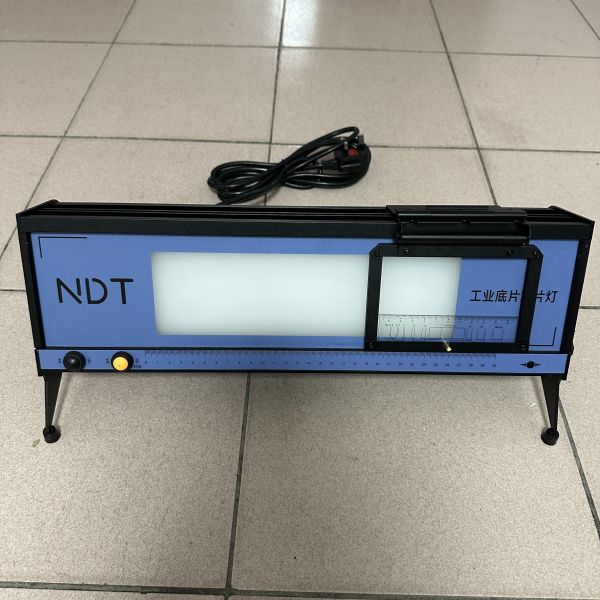

2x Magnifying Glass and LED Lamp Bead X-ray Film Viewer with Foot Switch

1. Product introduction

Install a sliding 2x magnifying glass; The magnifying glass can move left and right, front and back, up and down in multiple directions to make the evaluation more convenient.

· Installation of sliding film scale; The rating scale can be moved left and right, up and down in multiple directions to observe any position of the negative.

· The film evaluation window adopts high light transmittance acrylic plate; Adjustable window size, applicable to different specifications of film without the use of shading.

· The service life of imported LED lamp beads is greatly increased, and the cold light source layout is reasonable and uniform without damaging the film.

· Stepless dimming, suitable for different black film.

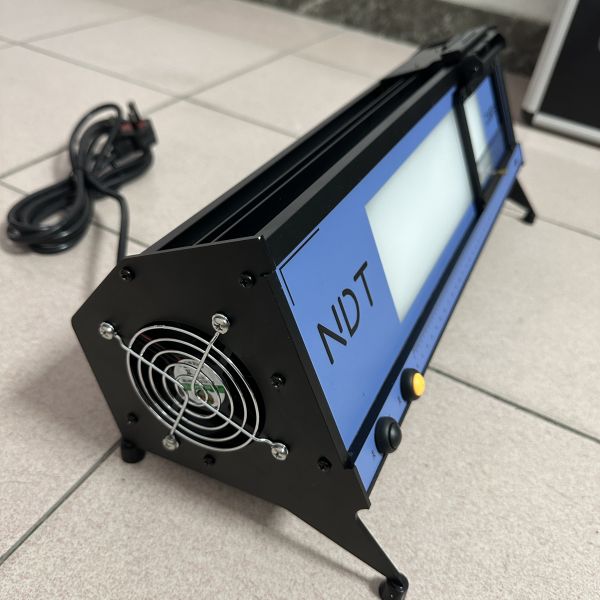

· Aluminum alloy wire-drawing process is adopted for the main body shell to facilitate heat dissipation of the whole machine, and multiple fans are equipped to heat dissipation, so that the instrument can work more balanced for a long time.

· Standard foot switch

2. Technical parameters

Power supply AC 220V 50Hz
Machine size 485mm (L) *225mm (W) *182mm (H)
Rating window size 256mm (W) *74mm (H)
Weight 4.2kg
Peak brightness HV-2708 168000cd/㎡ (385000Lux), HV-2709 198000cd/㎡ (455000Lux)
Observable film blackness value HFV-2708 ≤4.5D, HFV-2708 ≤5.0D
Working power 200W

3. Configuration

· 1 pc viewing light host

· 1 pc foot switch

· 1 set of sliding magnifying glass rating ruler

· 2 pc 3A fuses

· 1 pc instrument box

· 1 pc random data
